Toyota YARIS radiator grille — Figure 5301

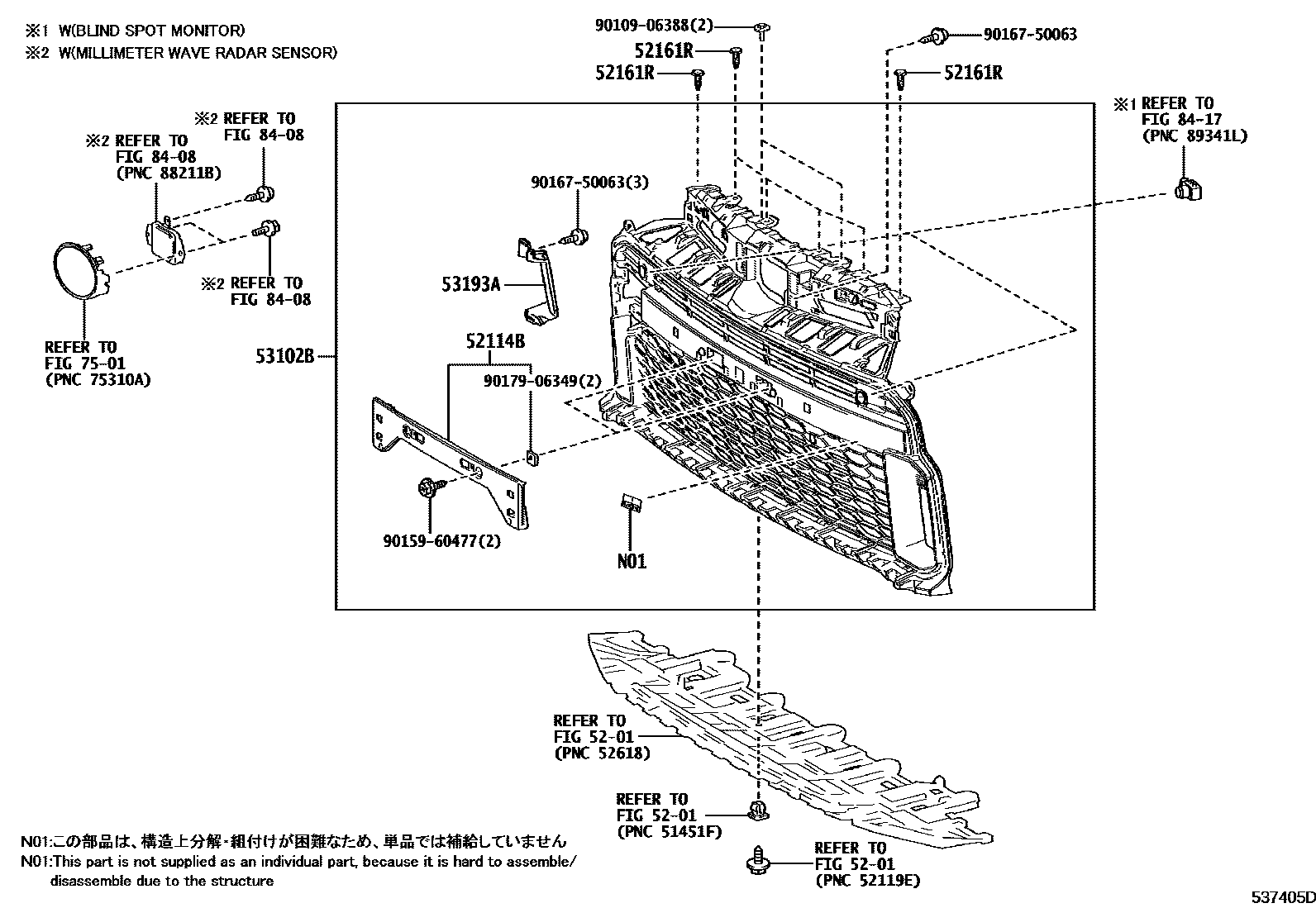

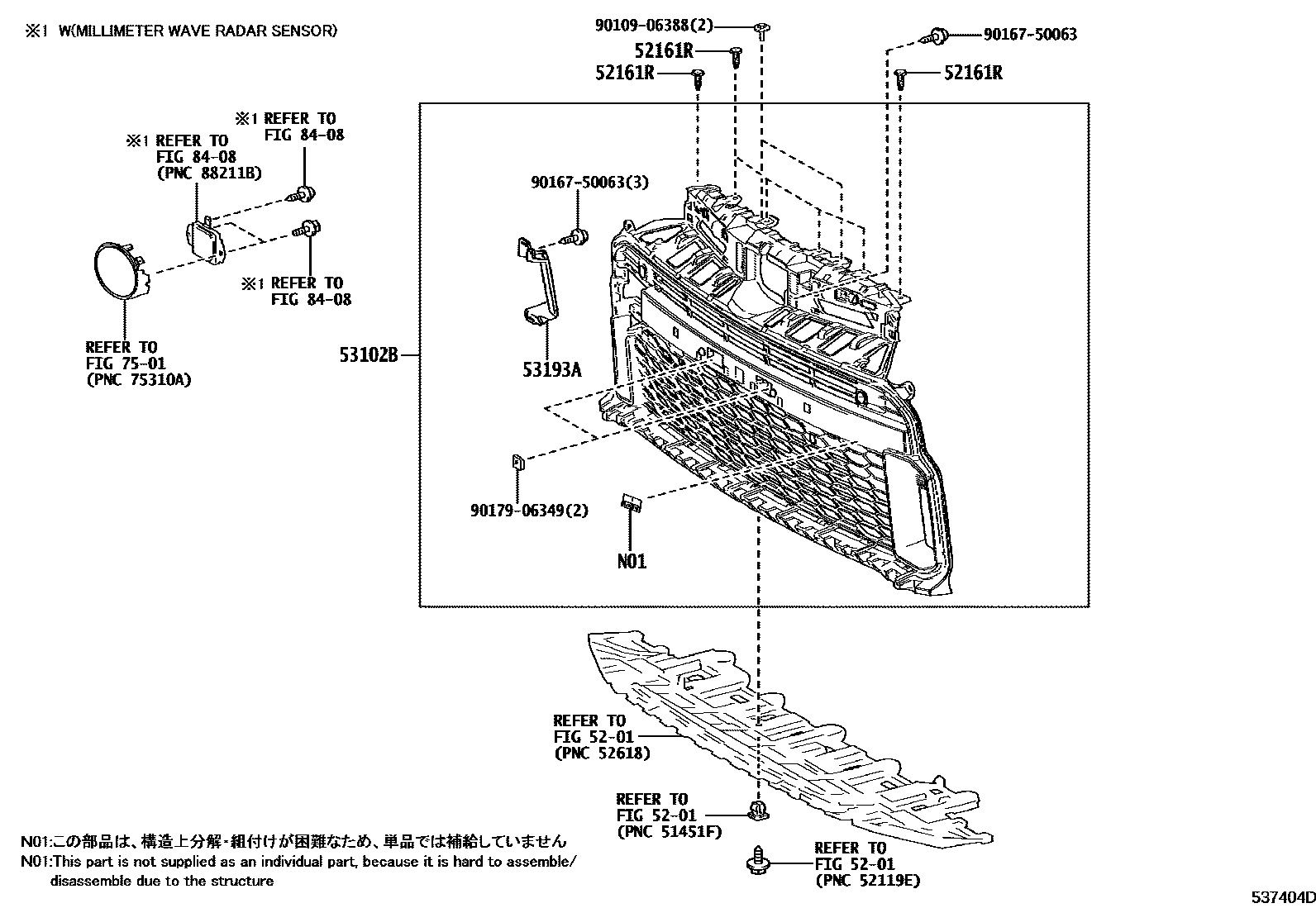

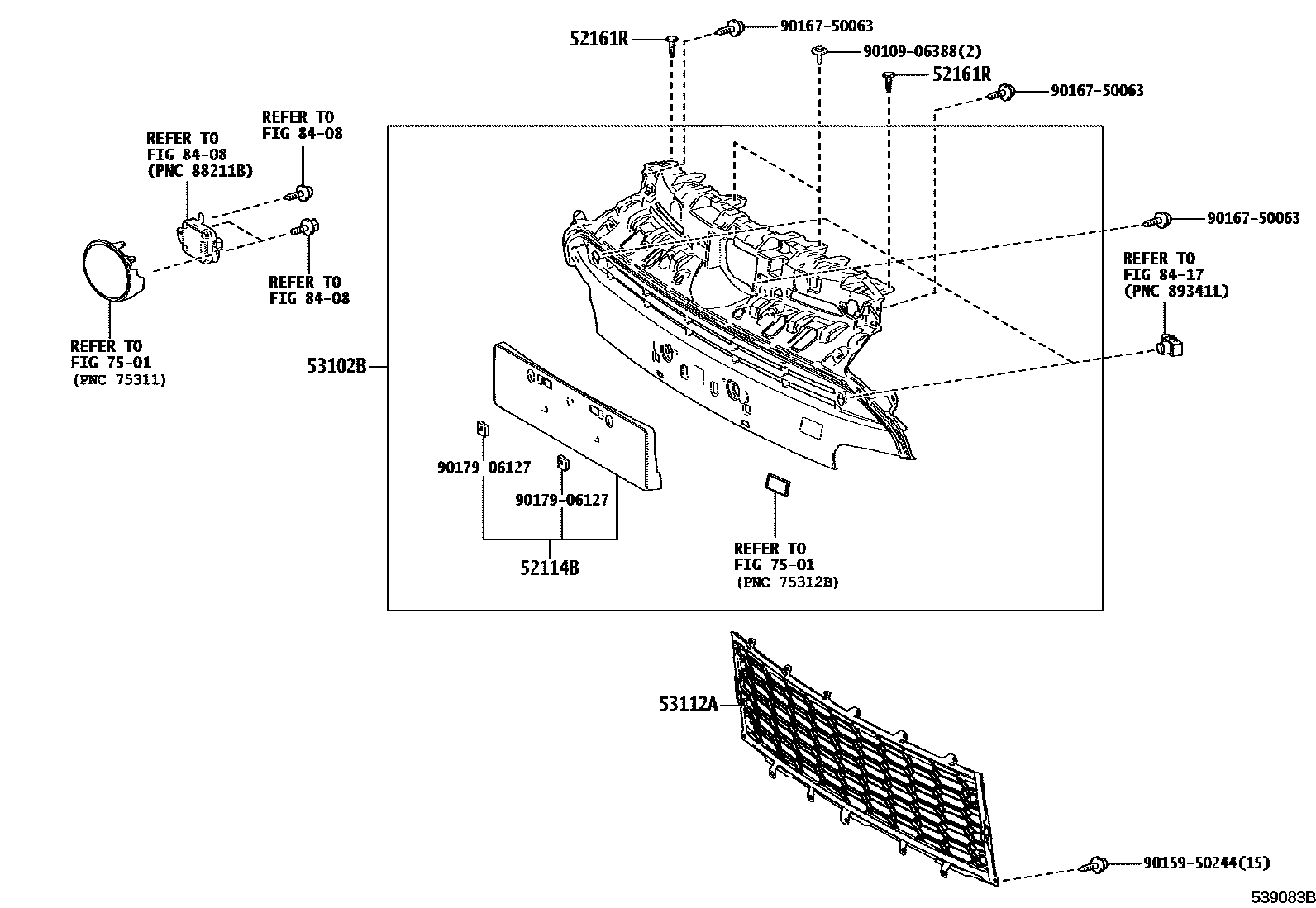

Toyota YARIS EPC diagram 5301, radiator grille, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52114B | CONSOLE DE MONTAGE DE RALLONGE DE PARE-CHOC AV | 52114-52220 |
| 52161R | front bumper insert | 52161-16010 |
| 53102B | SOUS-ENS. GRILLE, RADIATEUR, INF | 53102-52150 · 53102-52160 · 53102-52170 · 53102-52180 · 53102-52230 · 53102-52240 · 53102-52250 · 53102-52260 · 53102-52280 · 53102-52410 · 53102-52420 · 53102-52430 · 53102-52440 |
| 53112A | Lower radiator grille | 53101-52F70 |
| 53193A | Radiator grille lower right fixing piece | 53193-52010 |
