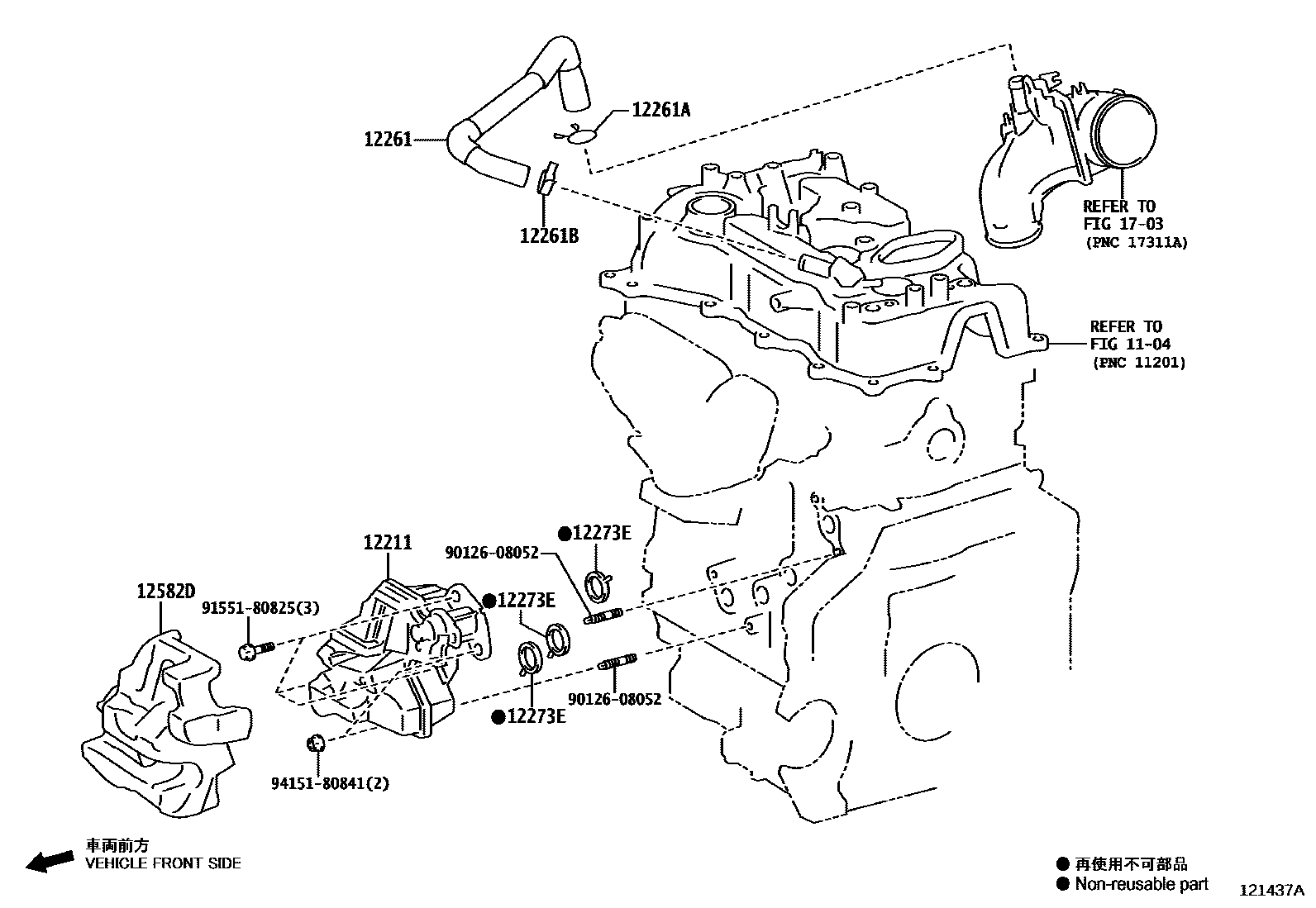

Toyota YARIS Ventilation Hose — Figure 1201
Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12211 | Ventilation box No. 1 | 12211-18010 |
| 12261 | Ventilation Hose | 12261-18010 |
| 12261A | Clip or clip (for vent hose) | 90467-24038 |
| 12261B | Clip or clip (for vent hose) | 96136-42201 |
| 12273E | JOINT(POUR CARTER VENTILATION) | 12273-24010 |
| 12582D | ISOLANT, BLOC-CYLINDRES, NO.2 | 12582-18010 |
