Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

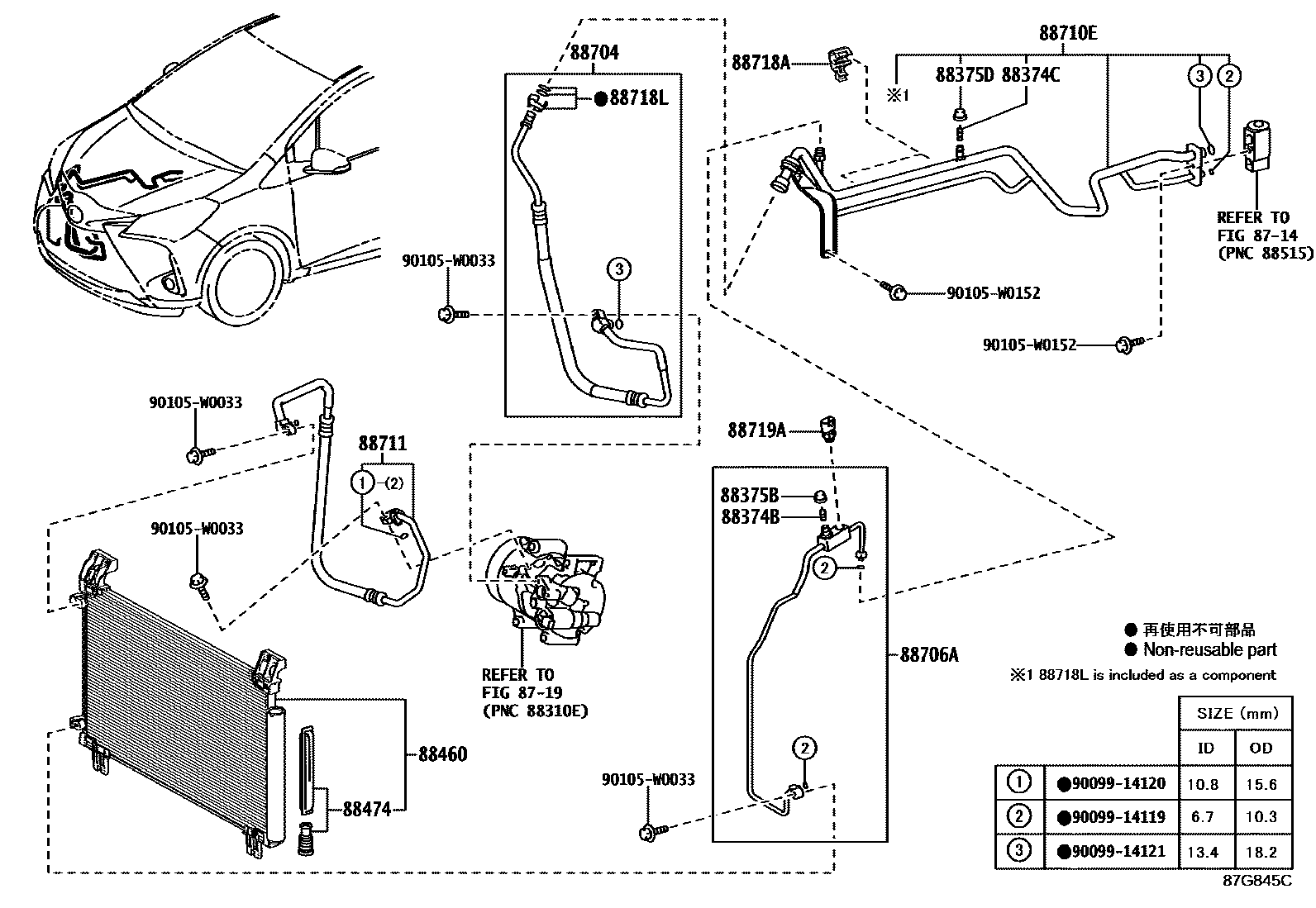

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-30310 |
| 88460 | Air conditioning condenser assembly | 88460-0D550 |
| 88474 | cooler dryer | 88474-12010 |
| 88704 | Oil suction hose sub-assembly | 88704-52391 |
| 88706A | Liquid pipe A sub-assembly | 88716-52860 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-52190 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-52570 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0D170 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
