Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

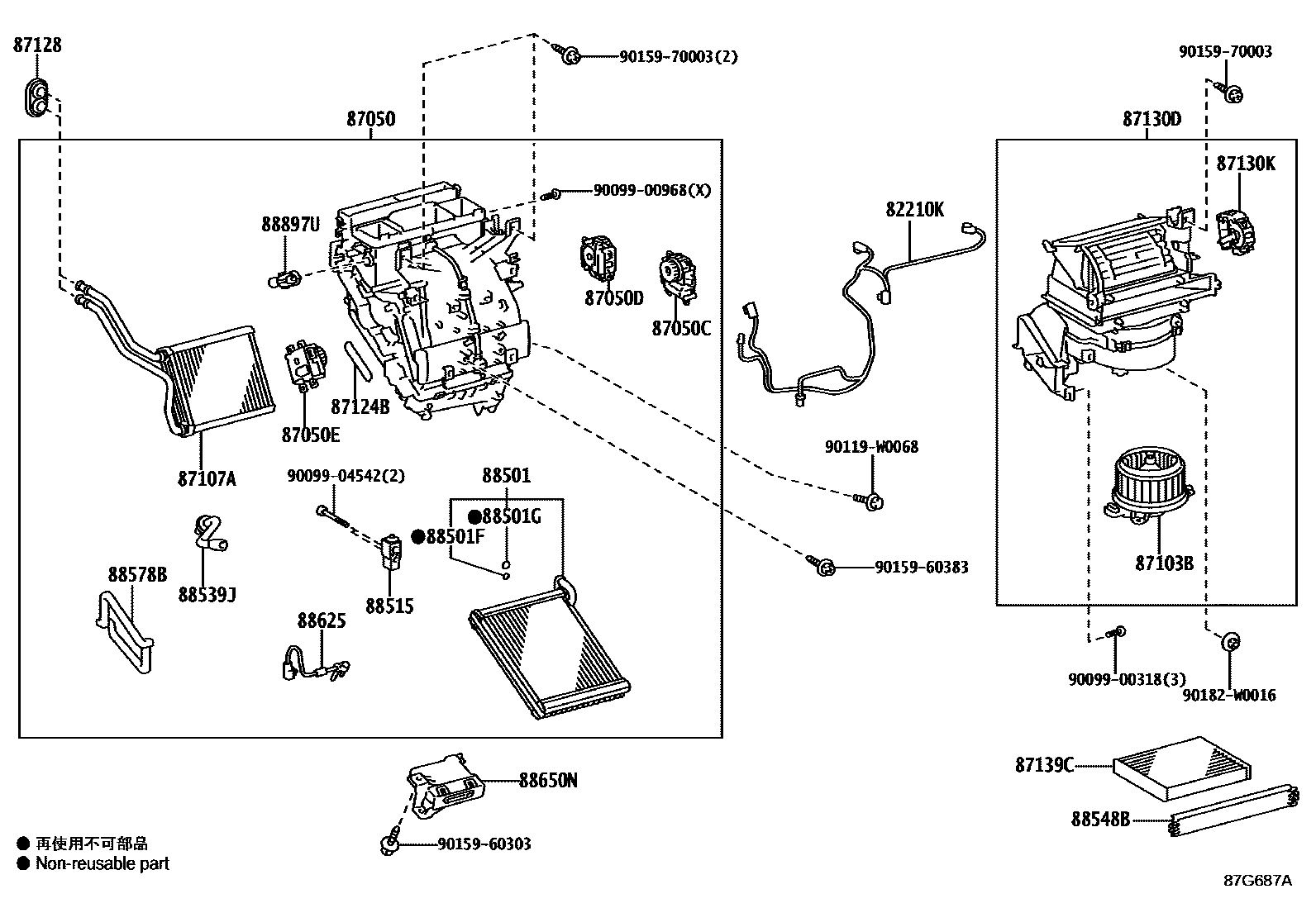

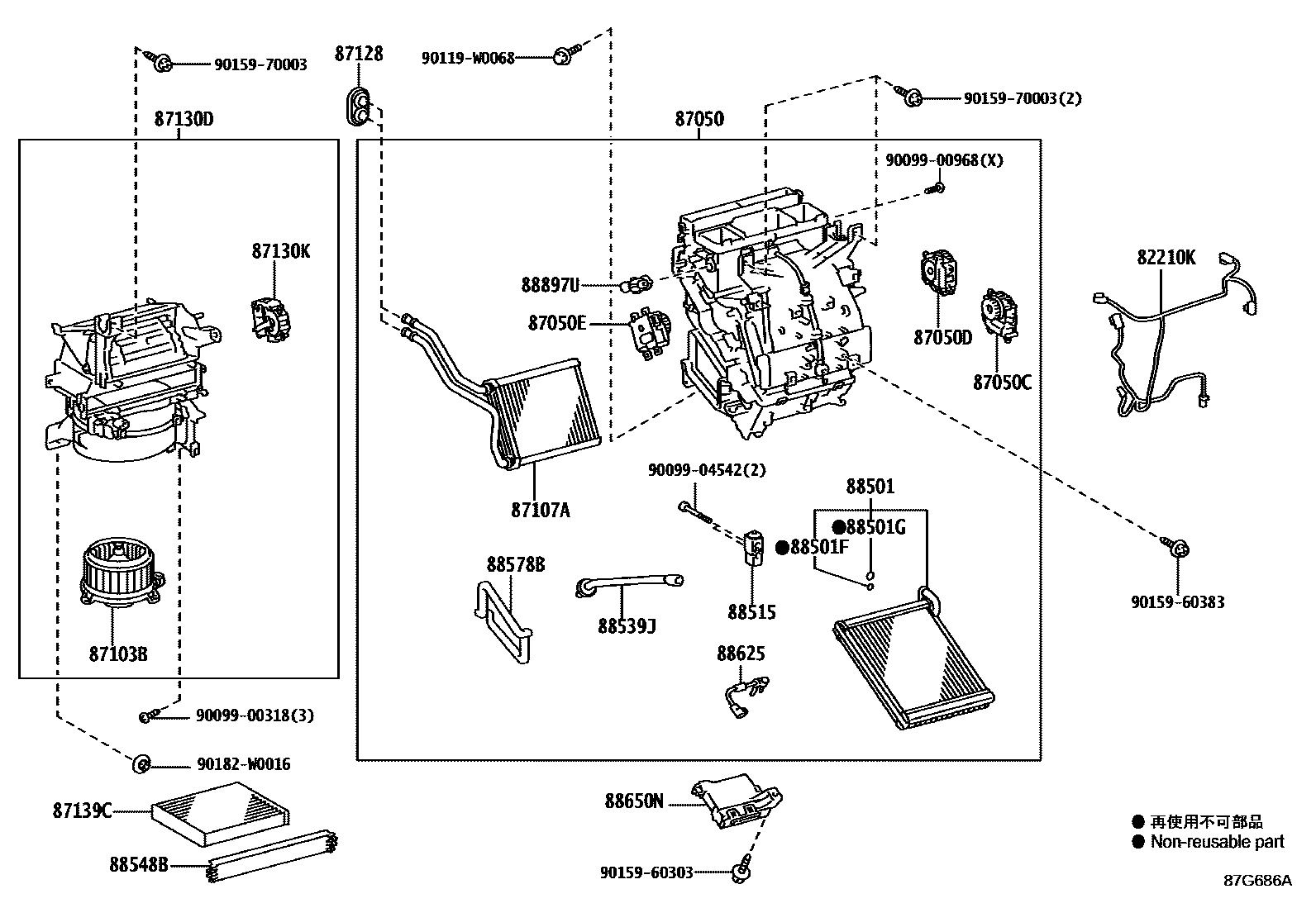

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-52051 · 82212-52061 |
| 87050 | Air conditioning radiator assembly | 87050-0D691 · 87050-0D731 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D021 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D031 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-0D051 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D220 · 87103-0D230 |
| 87107A | Heater radiator device sub-assembly | 87107-0D120 |
| 87124B | heater clip | 87124-0D580 |
| 87128 | heater seal | 90480-01696 |
| 87130D | Blower assembly | 87130-0D260 · 87130-0D280 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-0D041 |
| 87139C | air purification filter | 87139-0D070 · 87139-50100 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D490 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90068-14037 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90068-14038 |
| 88515 | Cooler expansion valve | 88515-0D480 |
| 88539J | Cooler drain hose | 88539-0D170 · 88539-0D180 |
| 88548B | air filter housing | 88548-0D040 |
| 88578B | Cooling unit seal No. 1 | 88578-52100 |
| 88625 | Cooler No. 1 Thermistor | 88625-02110 |
| 88650N | Air conditioning amplifier assembly | 88650-0DA70 |
| 88897U | aspirator tube | 88897-02180 |
