Toyota YARIS 后视镜 — Figure 8701

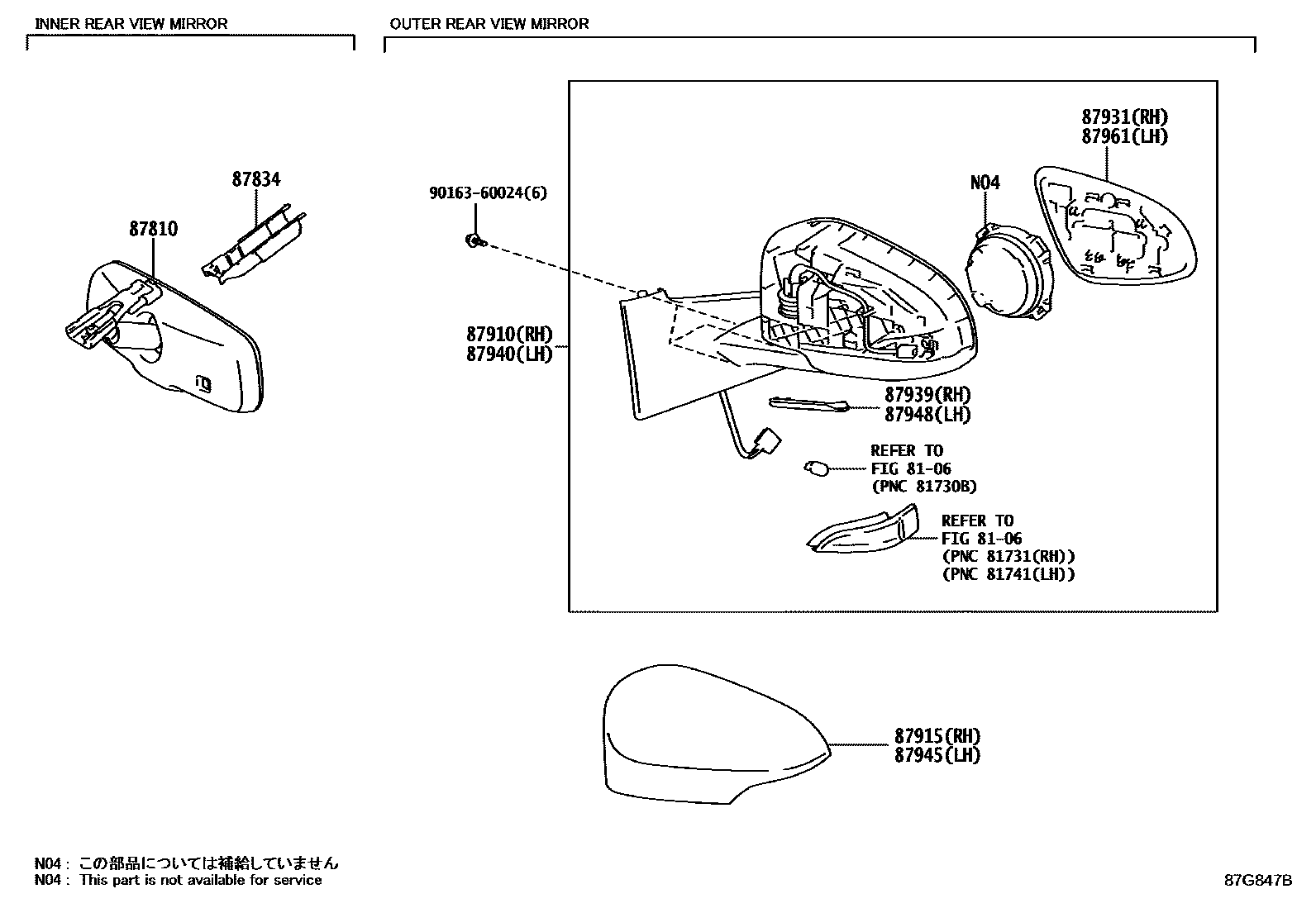

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0D080 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87910 | Right exterior rearview mirror assembly | 87910-0DB40 · 87910-0DB80 |
| 87931 | Right exterior rearview mirror | 87908-0D601 |
| 87939 | Right exterior rearview mirror hole cover | 87939-0D540 |
| 87940 | Left exterior rearview mirror assembly | 87940-0DB50 · 87940-0DB90 |
| 87948 | Left exterior rearview mirror hole cover | 87948-0D540 |
| 87961 | Left exterior rearview mirror | 87909-0D591 |
