Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

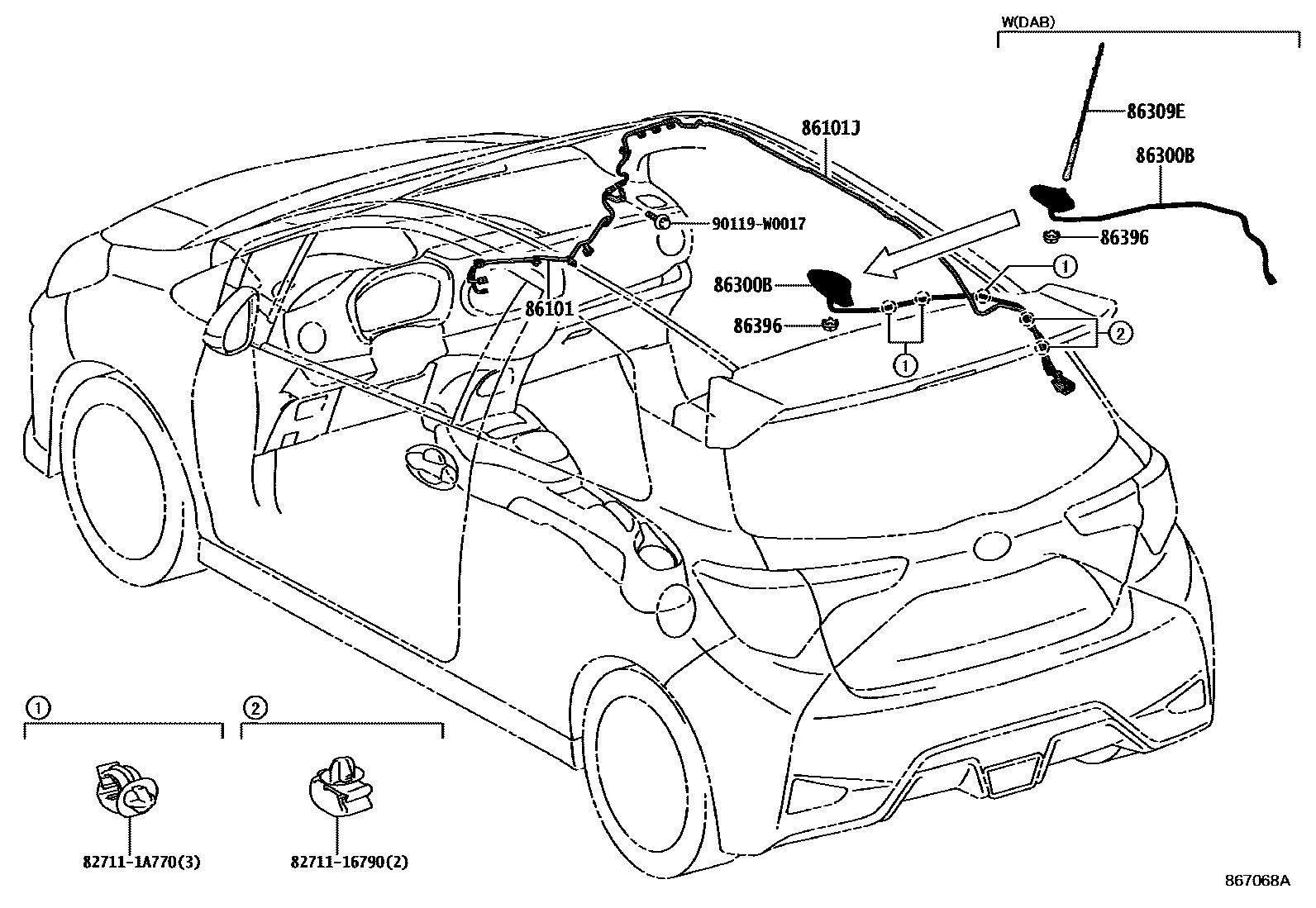

Toyota YARIS antenna EPC diagram — 867068A
antenna — 867068A (201711 – 999999)

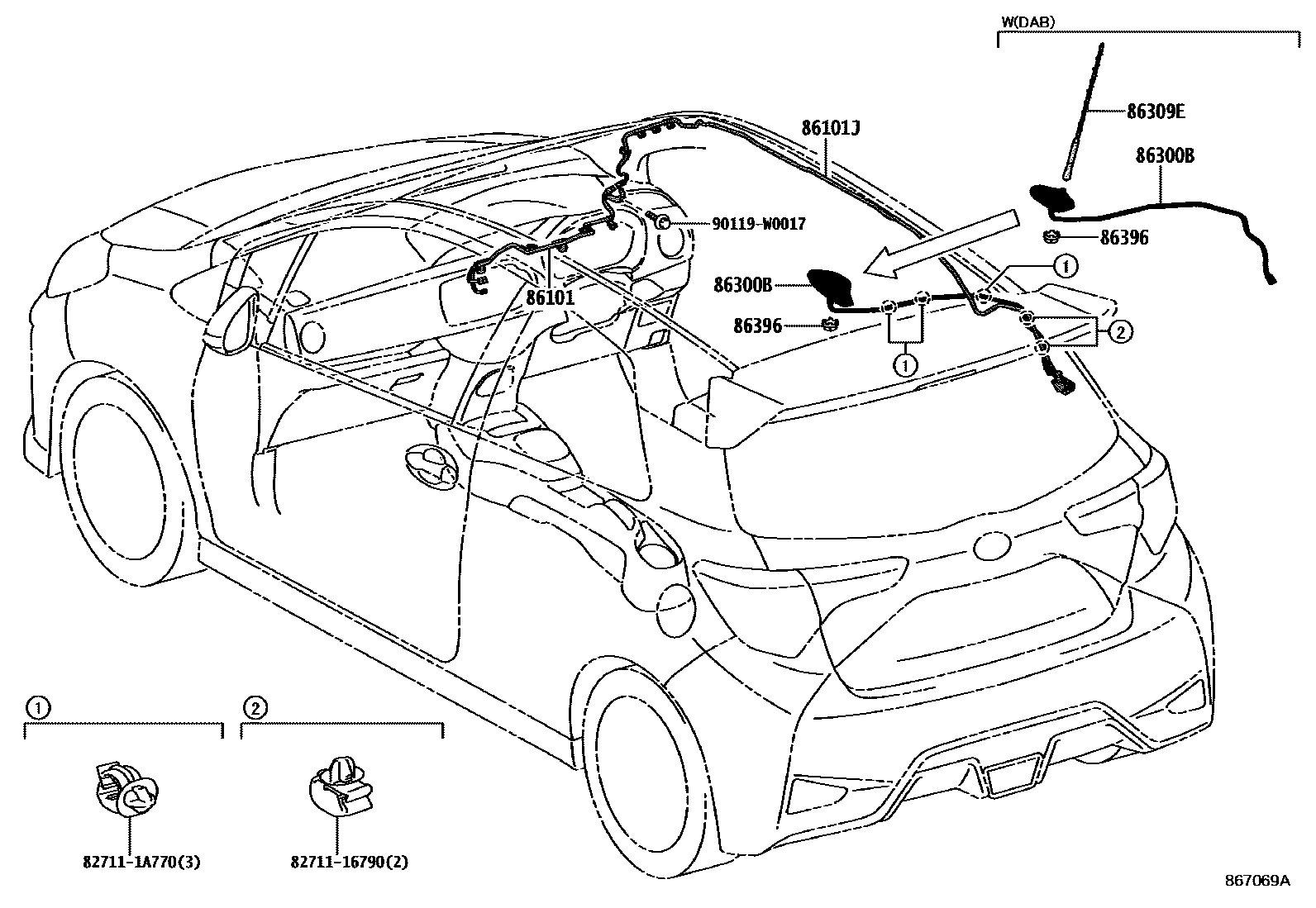

Toyota YARIS antenna EPC diagram — 867069A
antenna — 867069A (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0D410 · 86101-0D420 · 86101-0D650 · 86101-0D660
86101JNo. 2 antenna wire sub-assembly86101-0D390 · 86101-0D400
86300BAmplifier antenna assembly863C0-0D010
86309ERoof antenna sub-assembly86309-0D210
86396Antenna nut86396-47010
