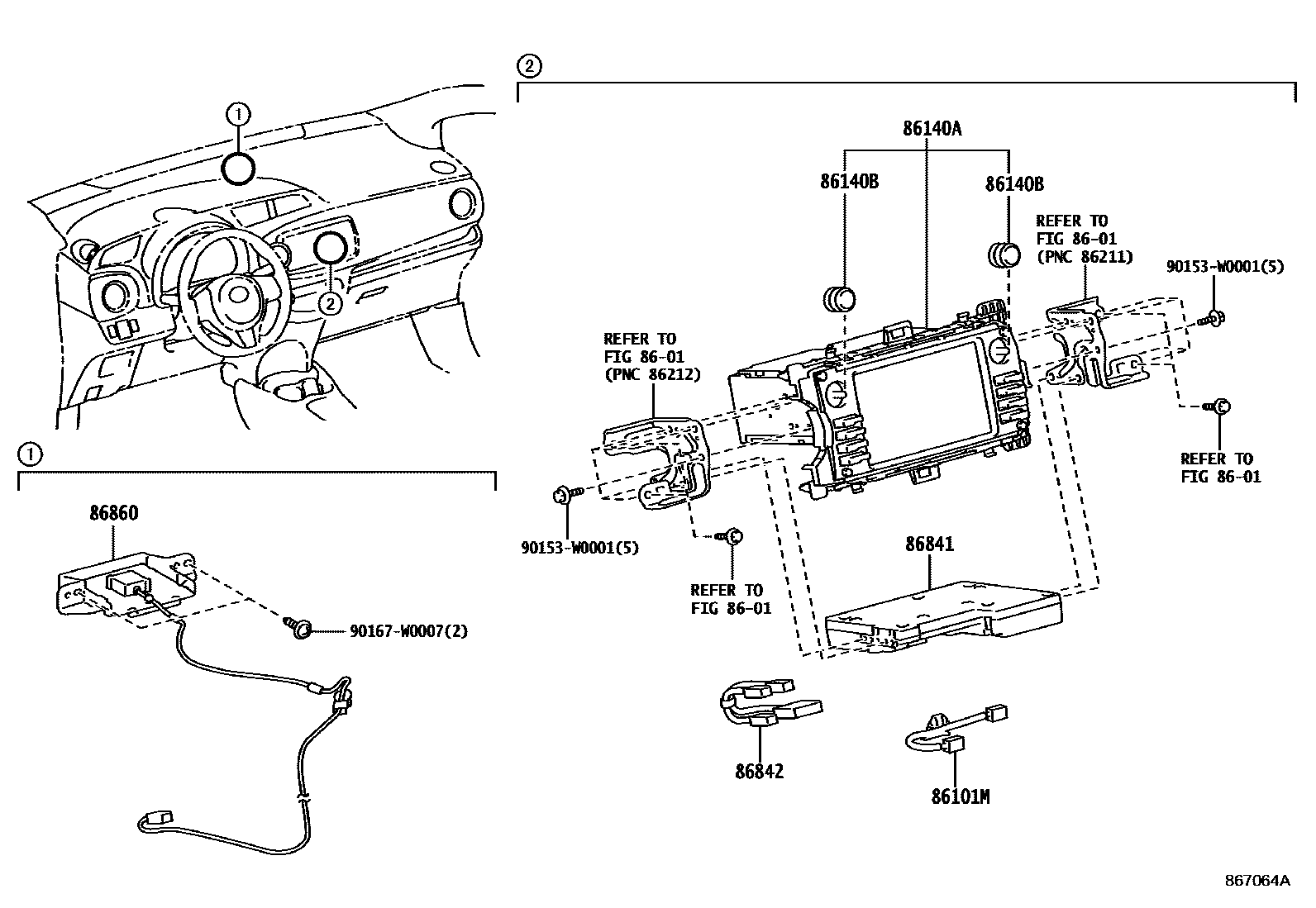

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101M | Antenna wire sub-assembly | 86705-02070 |
| 86140A | Radio and display receiver assembly | 86140-0D340 · 86140-0D410 · 86140-0D440 · 86140-0D450 |
| 86140B | Radio and display receiver switch button | 90011-25299 |
| 86841 | Navigation ECU | 86840-0F020 · 86840-0F040 |
| 86842 | Navigation harness No. 1 | 86842-12010 |
| 86860 | Navigation antenna assembly | 86860-0D020 |
