Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

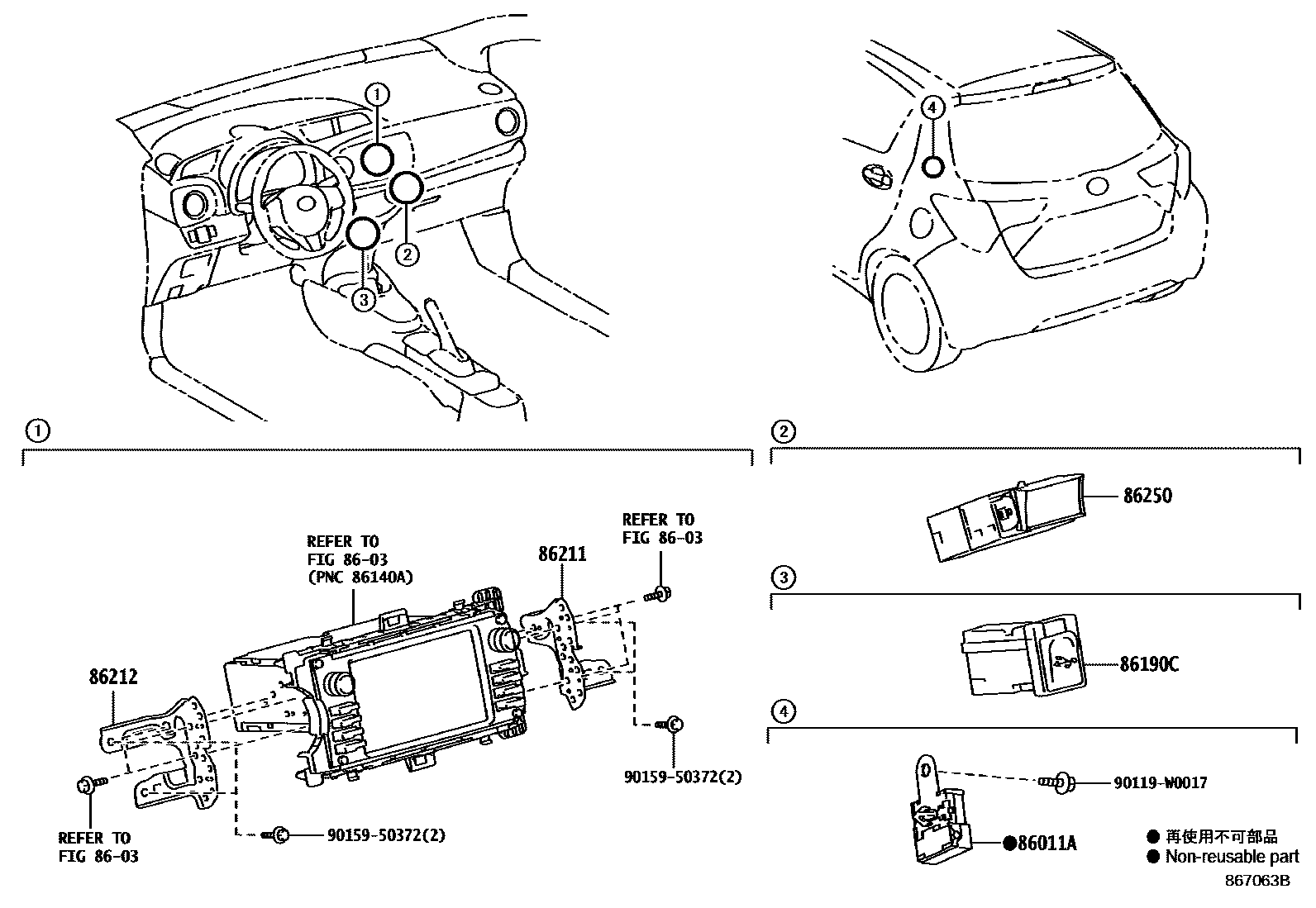

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04189 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0D060 |
| 86211 | No. 1 radio bracket | 86211-0D210 |
| 86212 | No. 2 radio bracket | 86212-0D200 |
| 86250 | amplifier loudspeaker assembly | 86250-0D030 · 86250-0D040 |
