Toyota YARIS 挡风玻璃刮水器 — Figure 8501

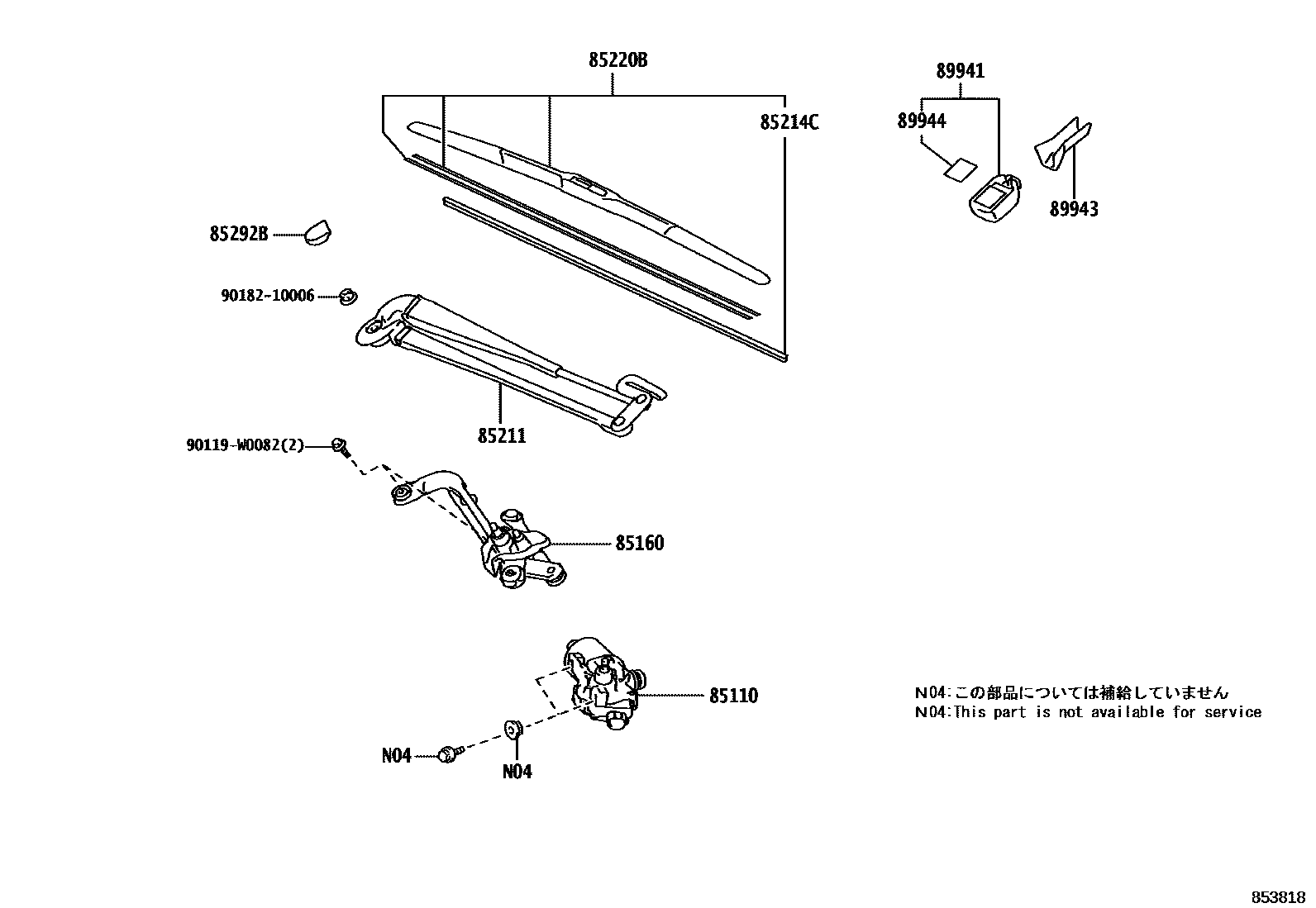

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0D191 · 85110-0D201 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0D180 · 85150-0D190 |
| 85211 | front wiper arm | 85211-0D240 · 85221-0D250 |
| 85214C | Central wiper blade rubber strip | 85214-0D310 |
| 85220B | front wiper blade | 85212-0D102 · 85222-0D122 |
| 85292B | Front wiper arm cap | 85292-52060 · 85292-52070 |
| 89941 | rain sensor | 89941-0D010 |
| 89943 | Rain sensor cover | 89943-02010 |
| 89944 | Rain sensor tape | 89944-02010 |
