Toyota YARIS 遥控门锁 — Figure 8420

Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.

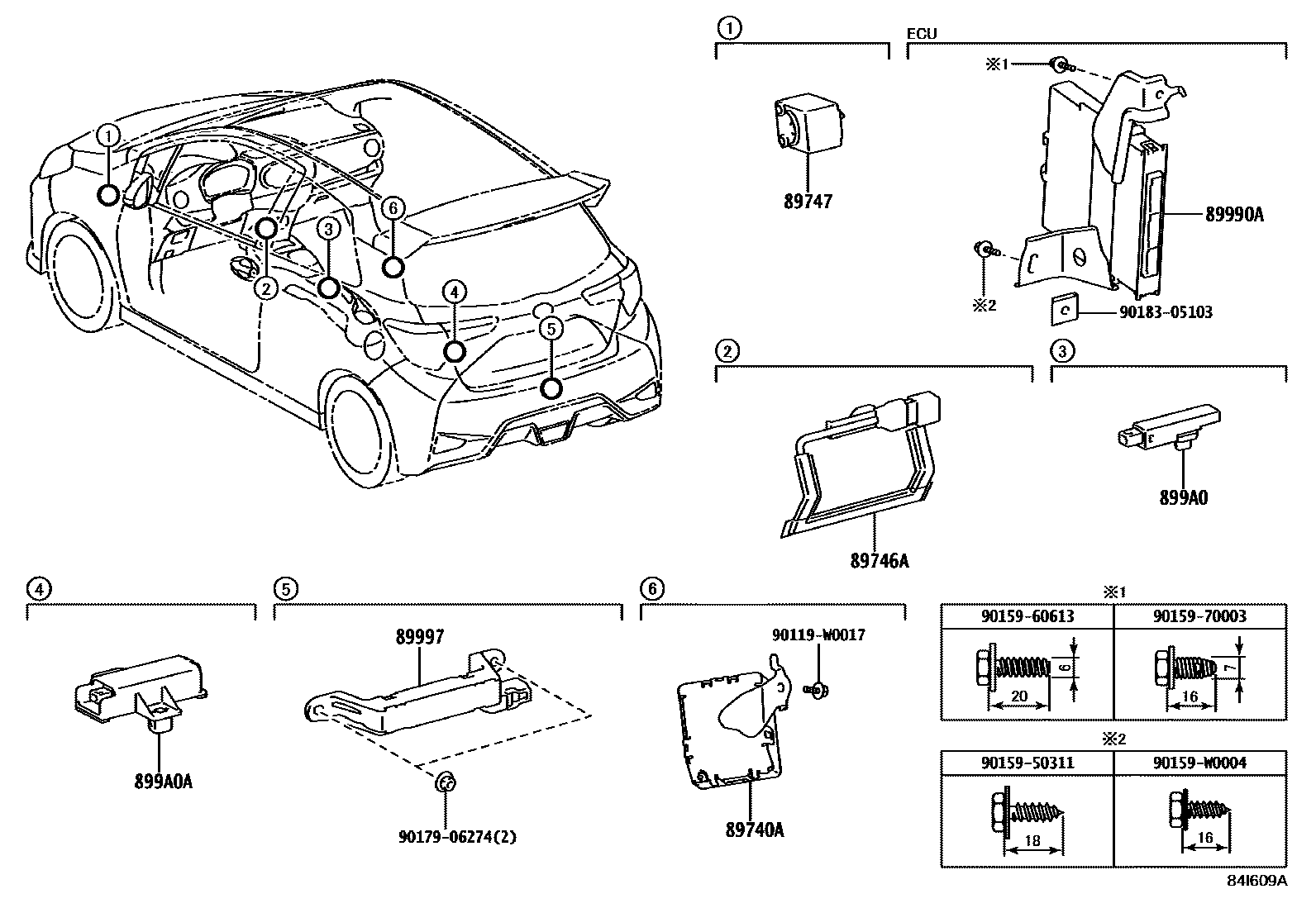

Toyota YARIS 遥控门锁 EPC diagram — 84I609A
遥控门锁 — 84I609A (201711 – 999999)

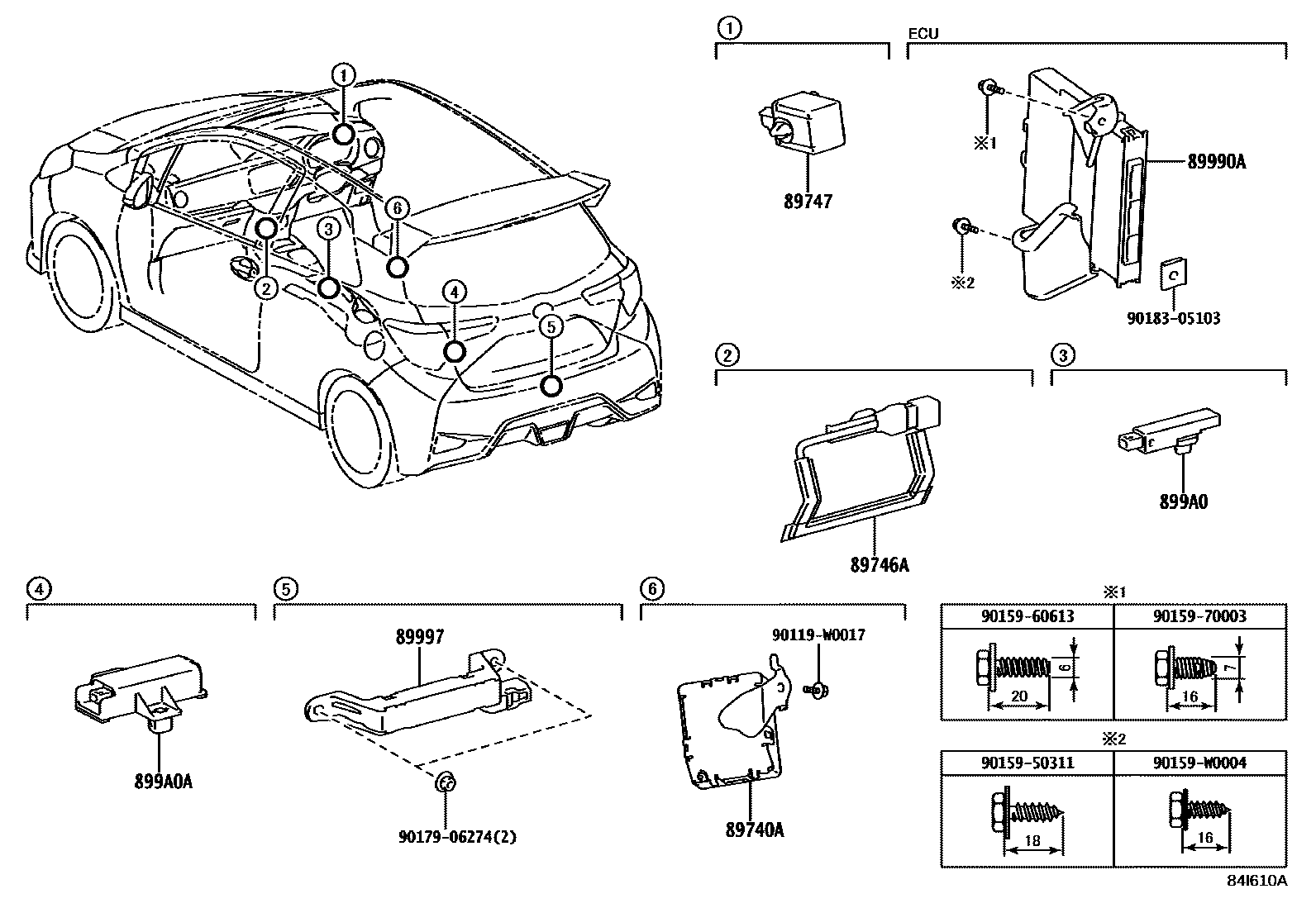

Toyota YARIS 遥控门锁 EPC diagram — 84I610A
遥控门锁 — 84I610A (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
89740AENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES89740-0D280
89746AElectronic key wiring harness89746-52100
89747Remote door lock buzzer89747-05010
89990ASmart key ECU assembly89990-0D270 · 89990-0D280
89997electronic key antenna89997-30070
899A0No. 1 electronic key antenna assembly in car899A0-0F040
899A0AElectronic key antenna assembly in car No. 2899A0-0D140
