Toyota YARIS 电子燃油喷射系统 — Figure 8404

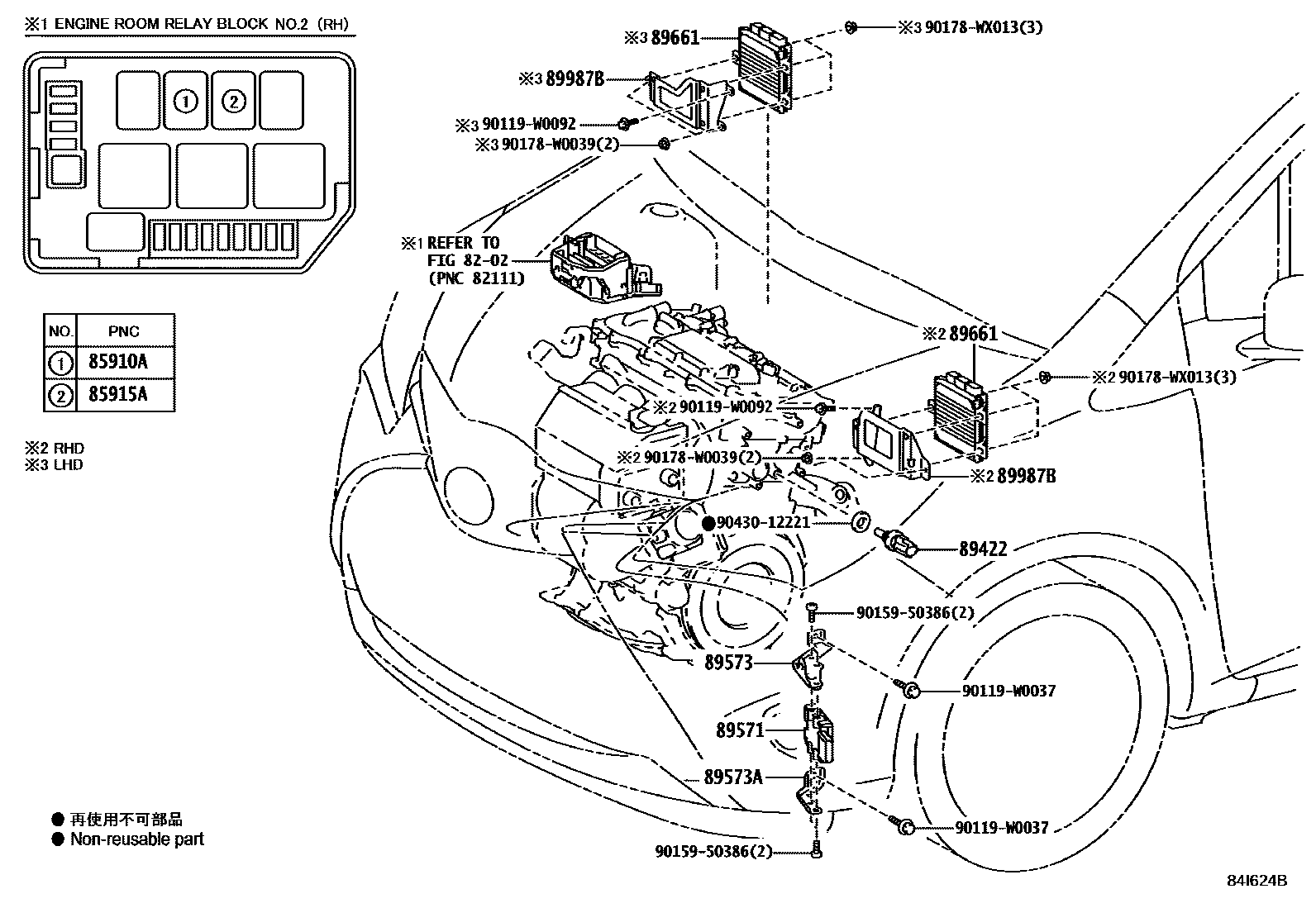

Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02027 |
| 85915A | main relay | 90987-02027 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89571 | Fuel pump control ECU | 89571-34070 |
| 89573 | Fuel pump control ECU bracket | 89573-52030 |
| 89573A | SUPPORT, ORD CONTR POMPE ESSENCE, NO.2 | 89573-52040 |
| 89661 | Engine control ECU | 89661-0U730 |
| 89987B | No.1 ECU bracket | 89987-0D010 · 89987-0D020 |
