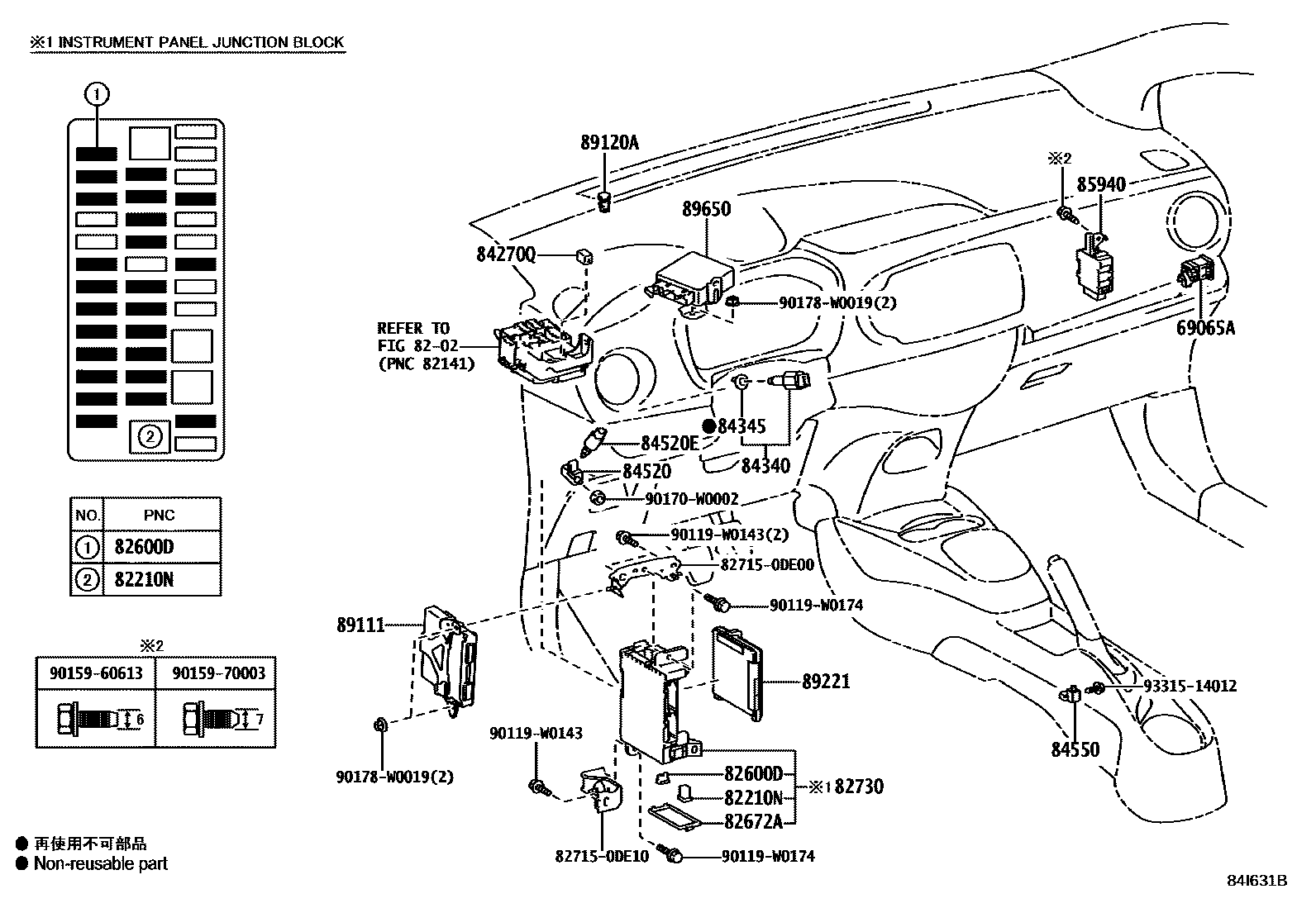

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 9 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-02010 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82616 | fuse puller | 82616-58010 |

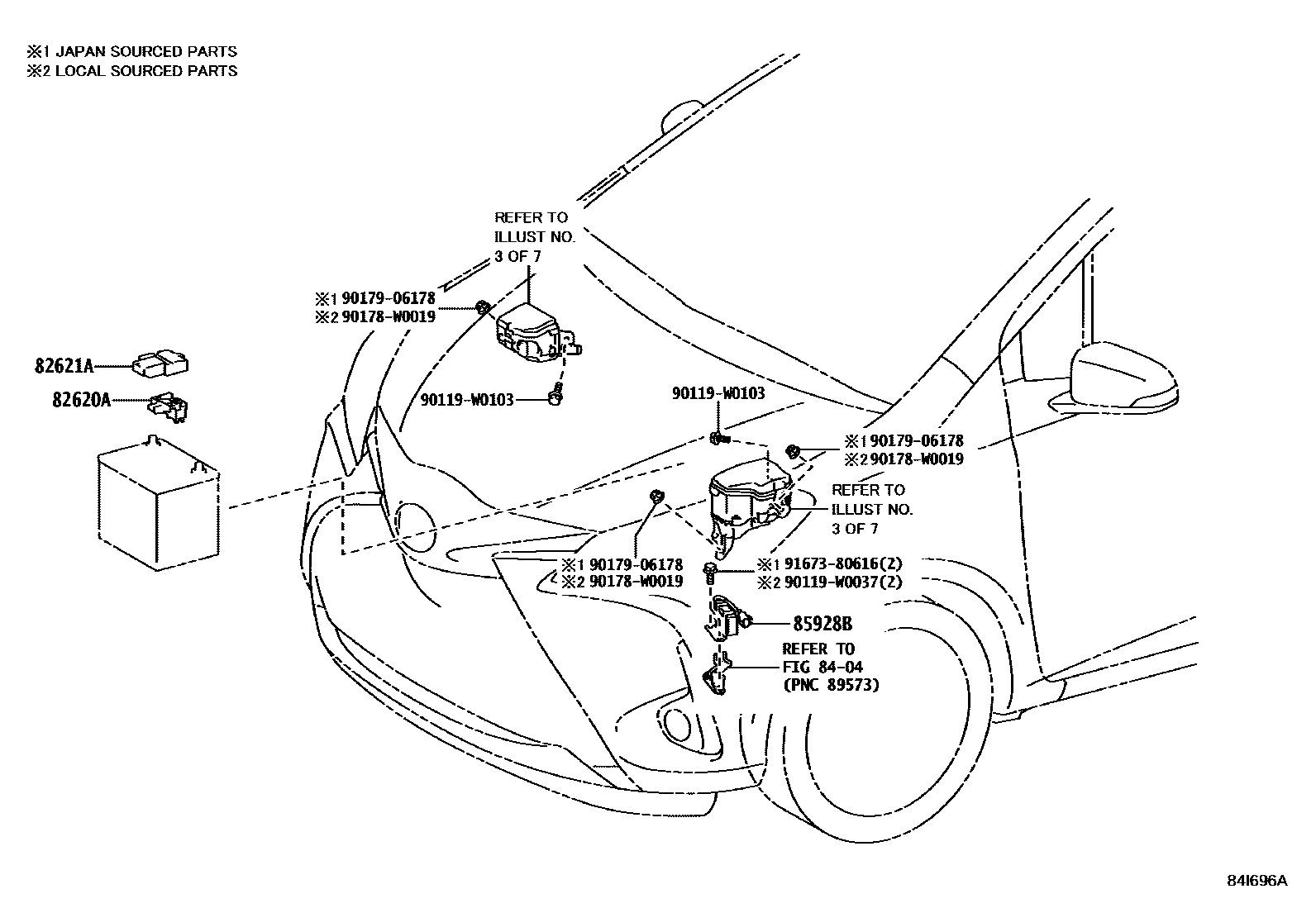

| 82620A | Fuse box assembly | 82620-52070 |
| 82621A | Fuse cover | 82621-0D020 |
| 82642A | driving light relay | 90080-87021 |

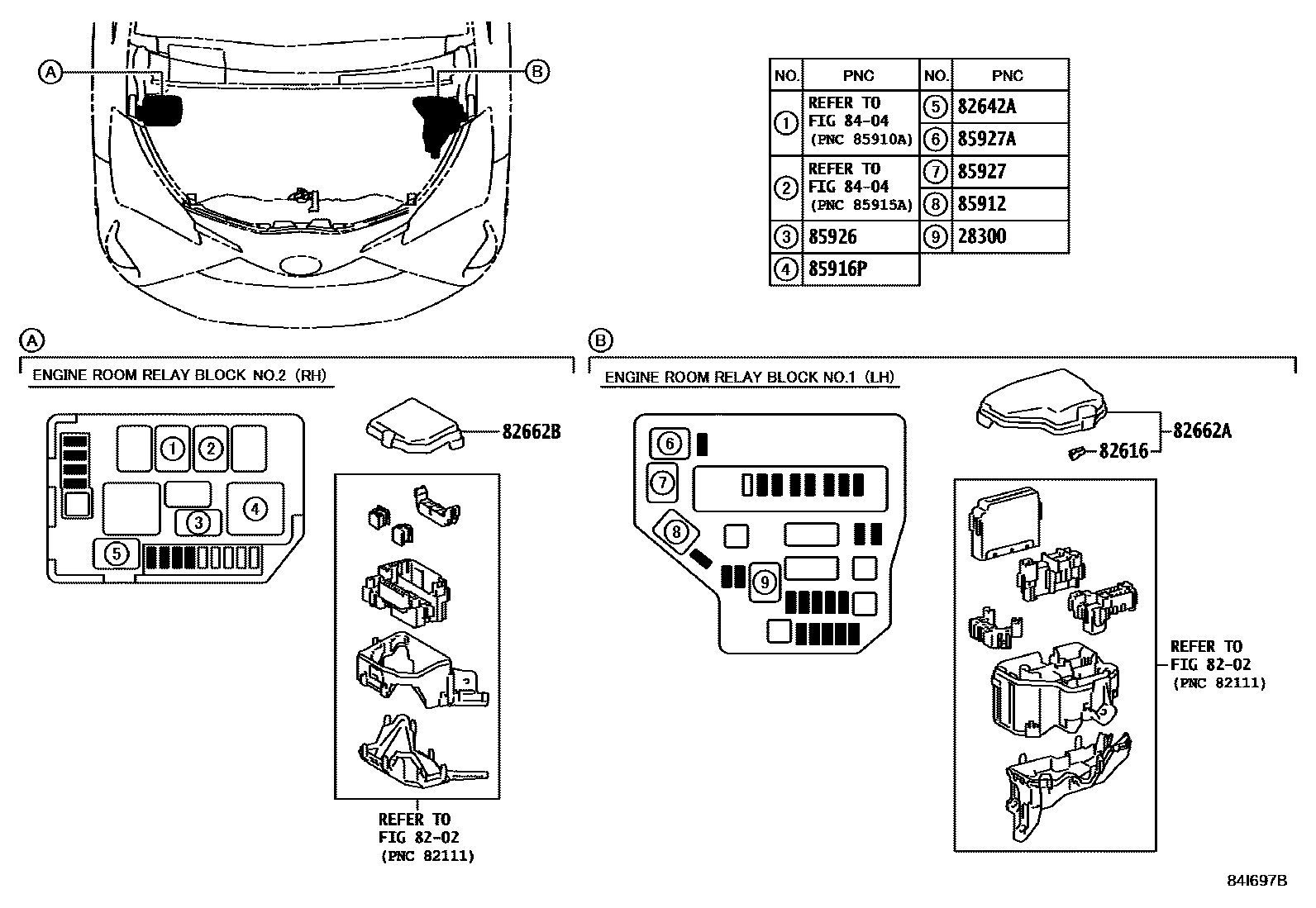

| 82662A | No. 1 relay box upper cover | 82662-0DD40 |
| 82662B | No. 2 relay box upper cover | 82662-0DD50 |
| 82672A | Junction box cover | 82672-52090 |

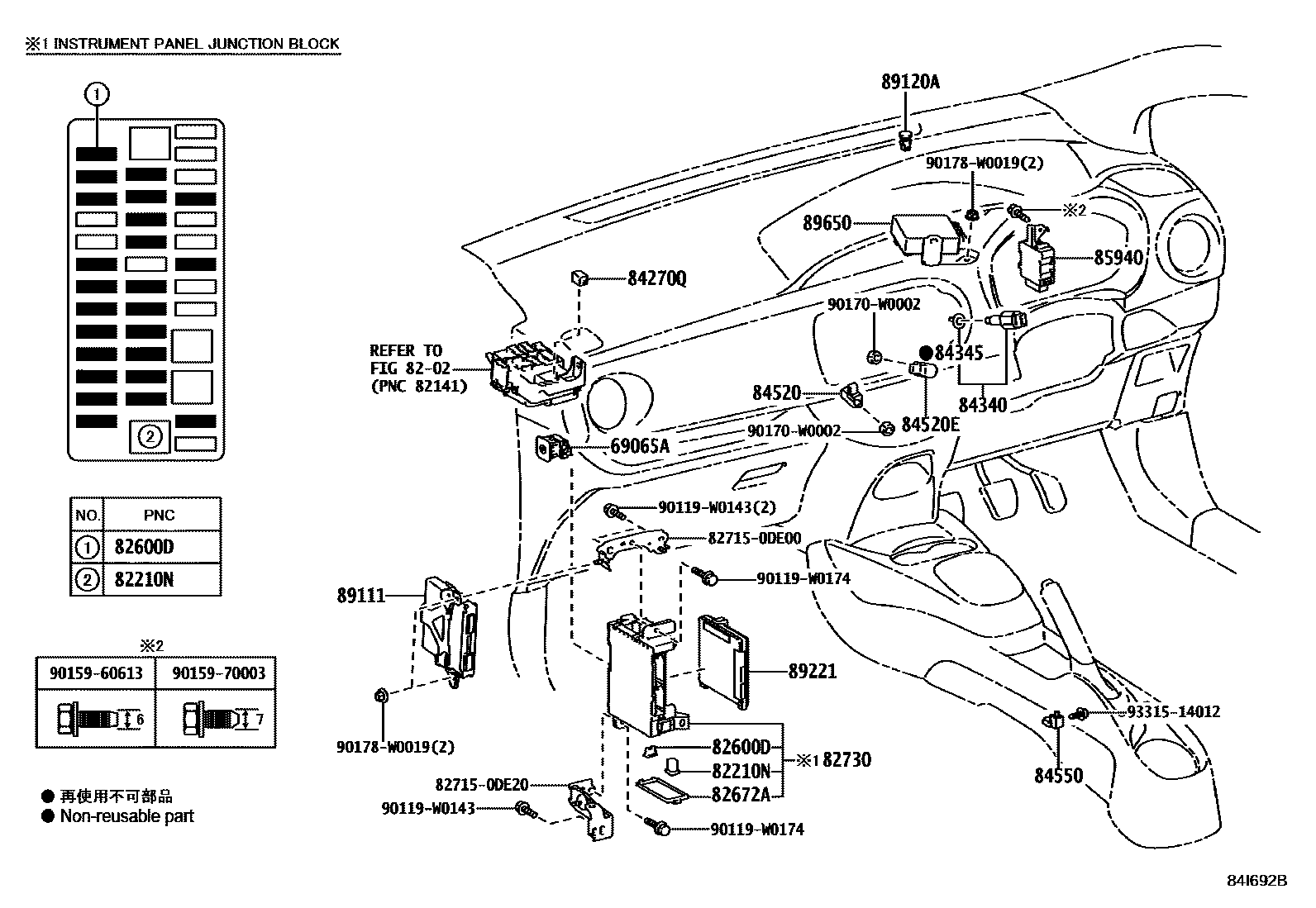

| 82730 | Instrument panel junction box assembly | 82730-52K40 |
| 83320 | Fuel gauge sensor assembly | 83320-52261 |

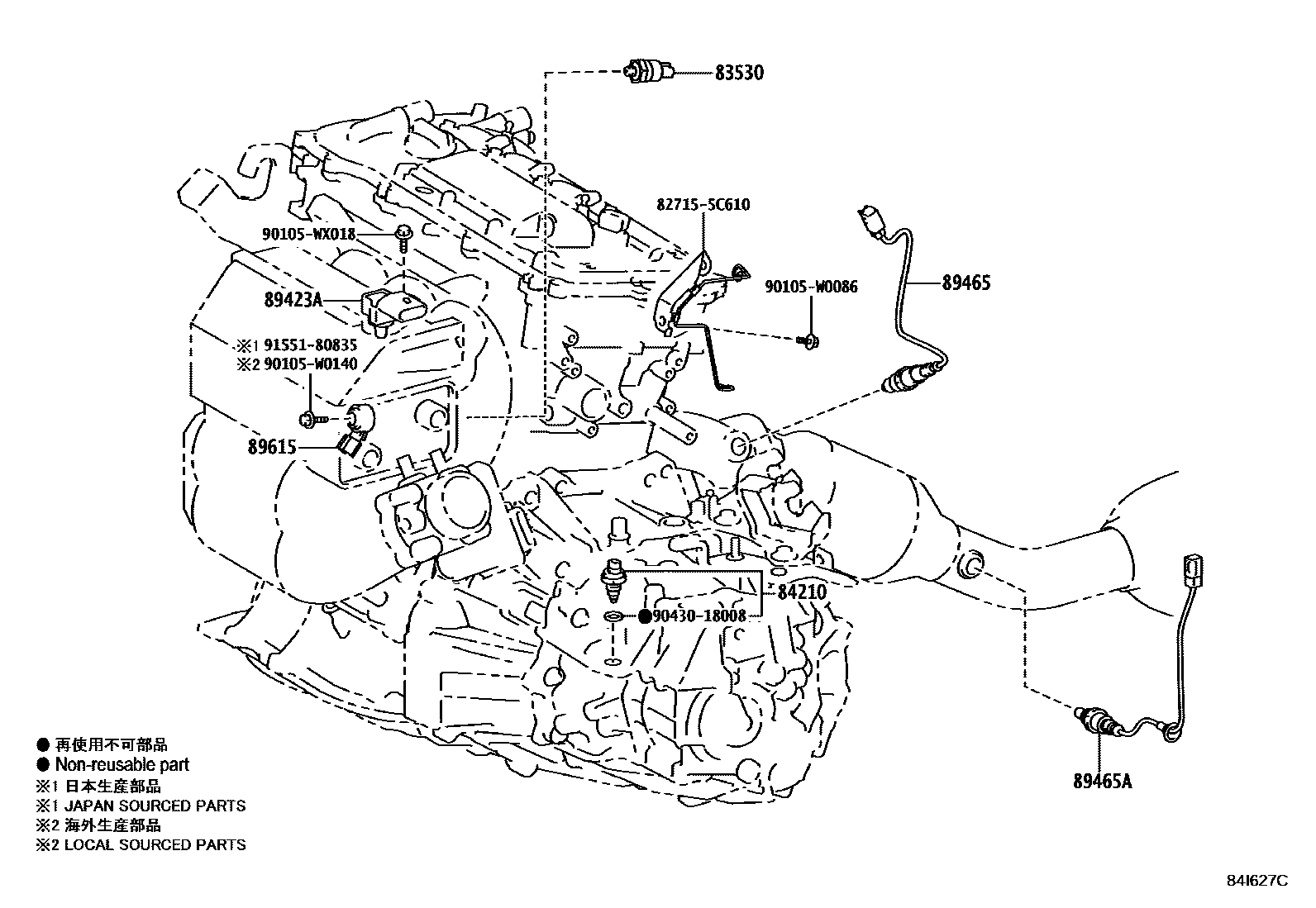

| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28020 · 83530-60020 |

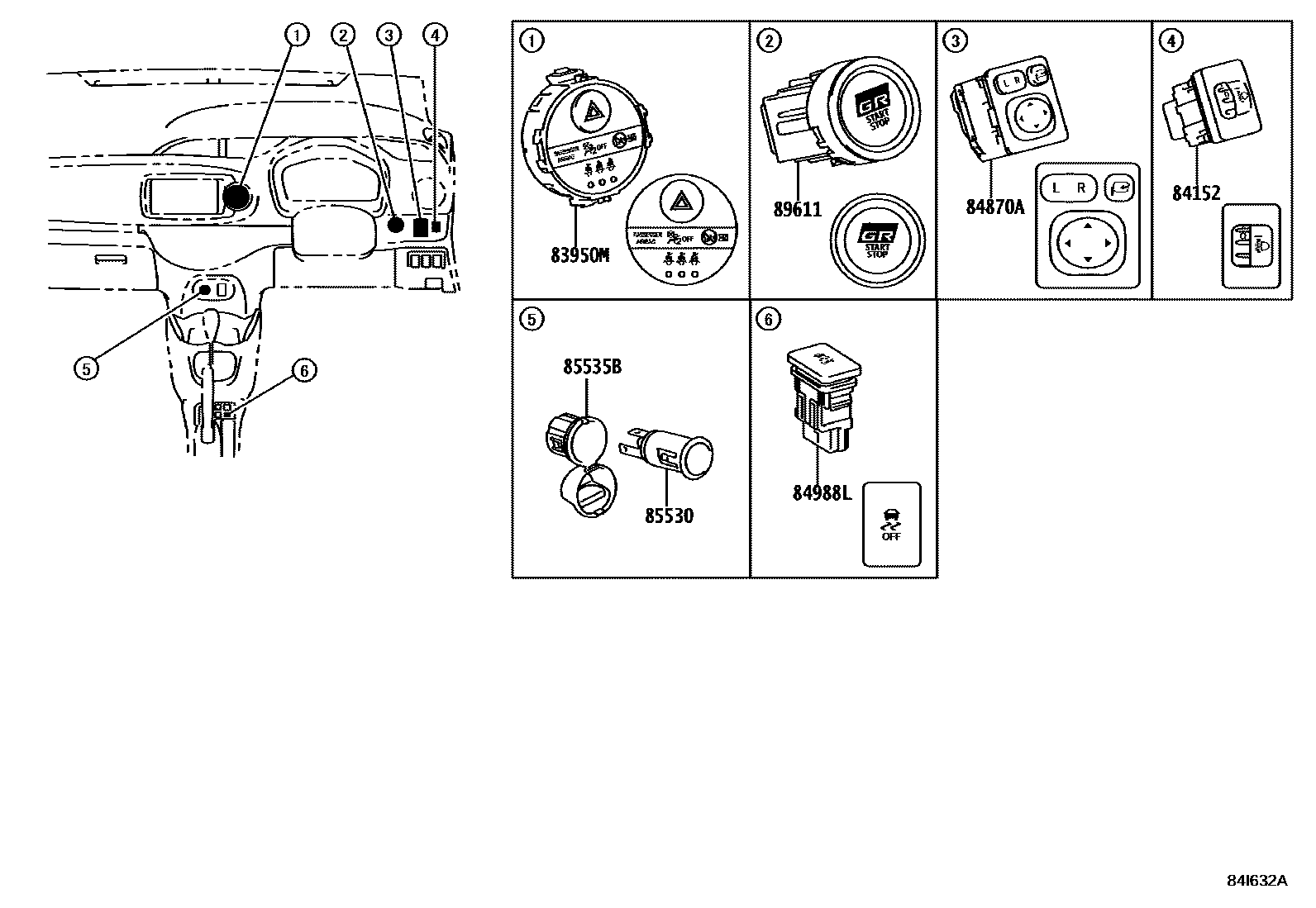

| 83950M | Warning light assembly | 83950-0D100 |

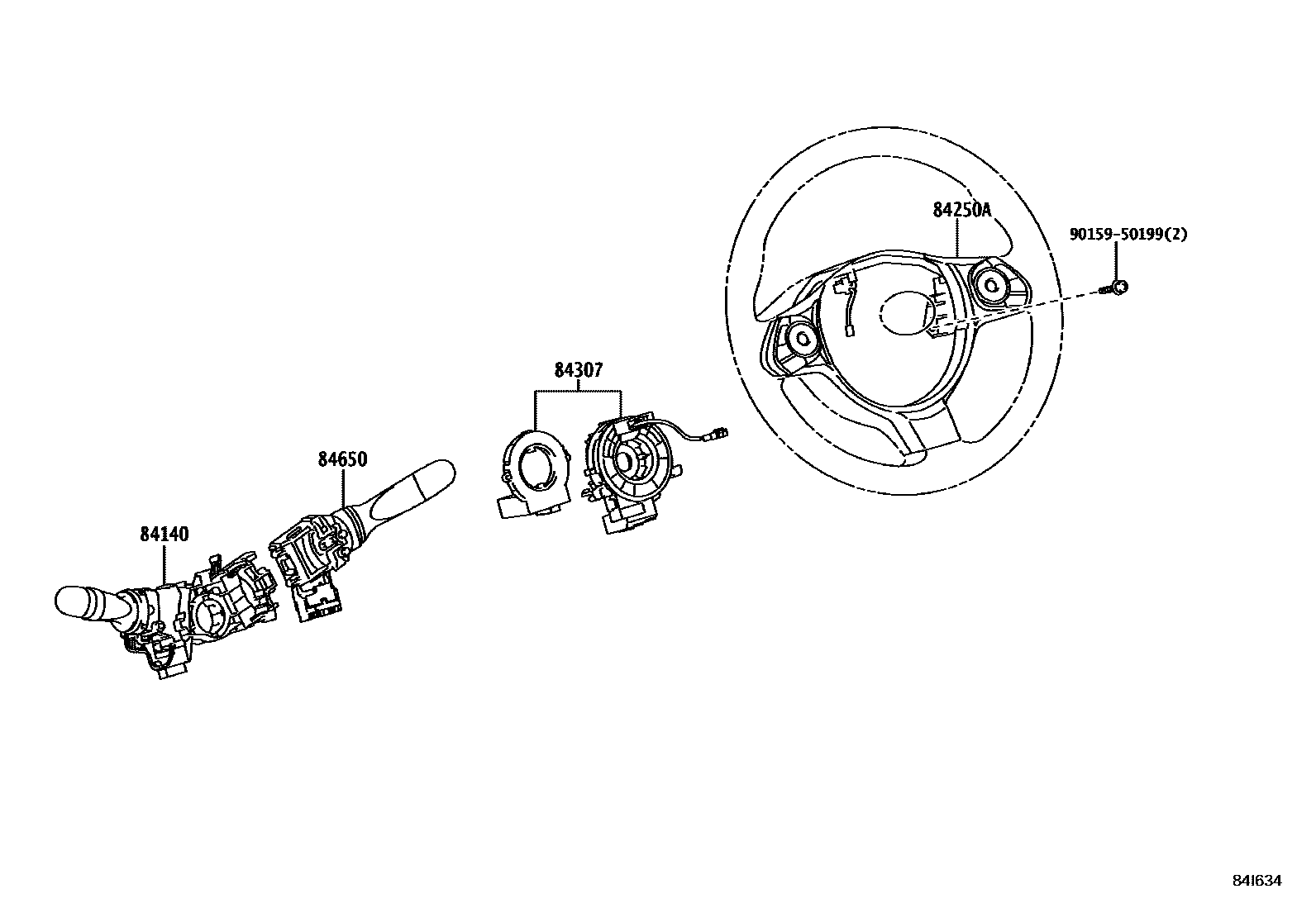

| 84140 | Headlight dimmer switch assembly | 84140-0D310 |
| 84152 | Headlight beam height adjustment switch | 84152-02080 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D030 |
| 84270Q | headlight relay | 90987-02027 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0D250 |
| 84340 | brake light switch assembly | 84340-09100 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 · 88280-42010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-0D190 |

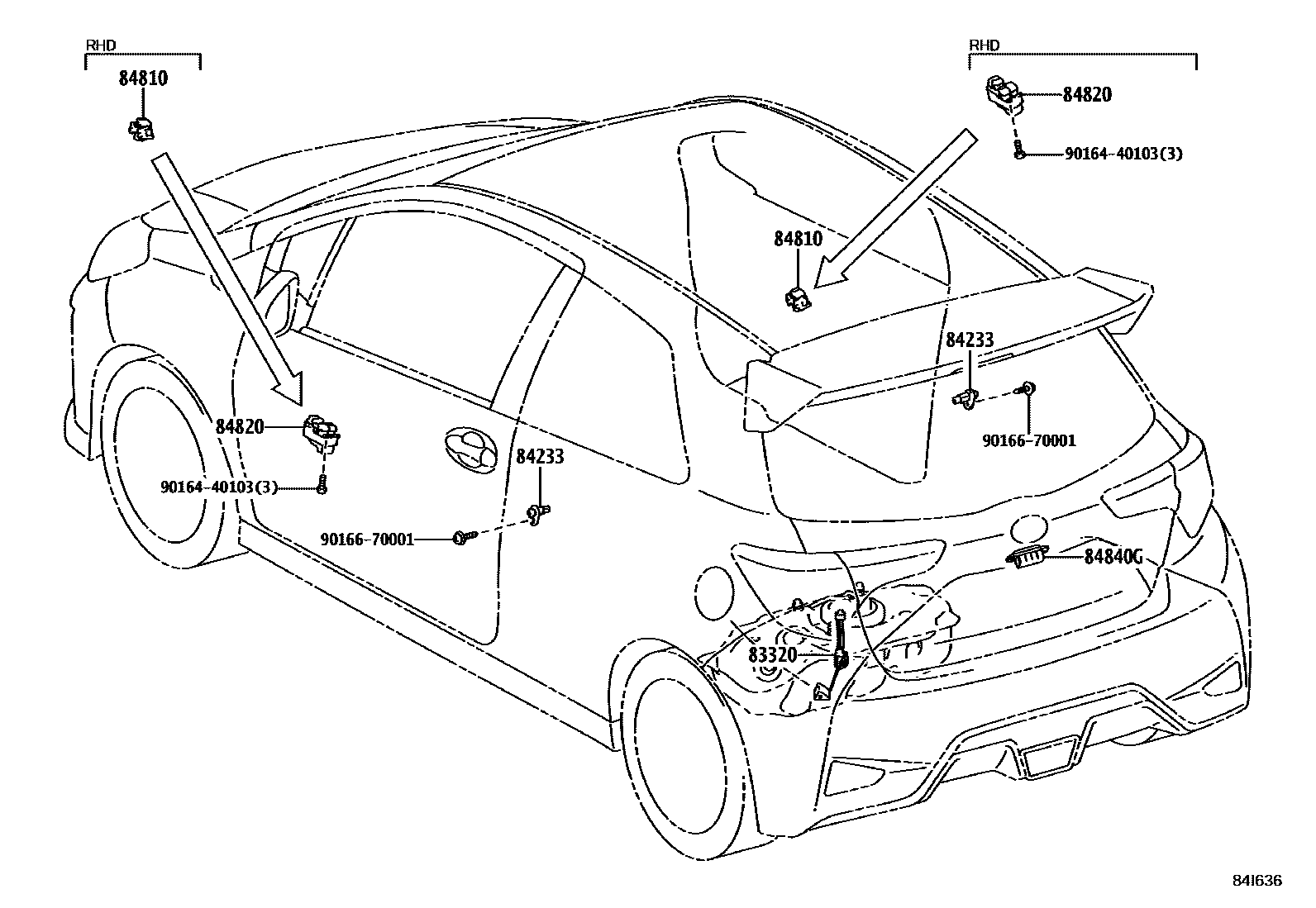

| 84810 | Electric window lift switch assembly | 84810-0D030 |
| 84820 | Electric window lift main switch assembly | 84820-02330 · 84820-02340 |
| 84840G | Back door opener switch assembly | 84840-02060 |

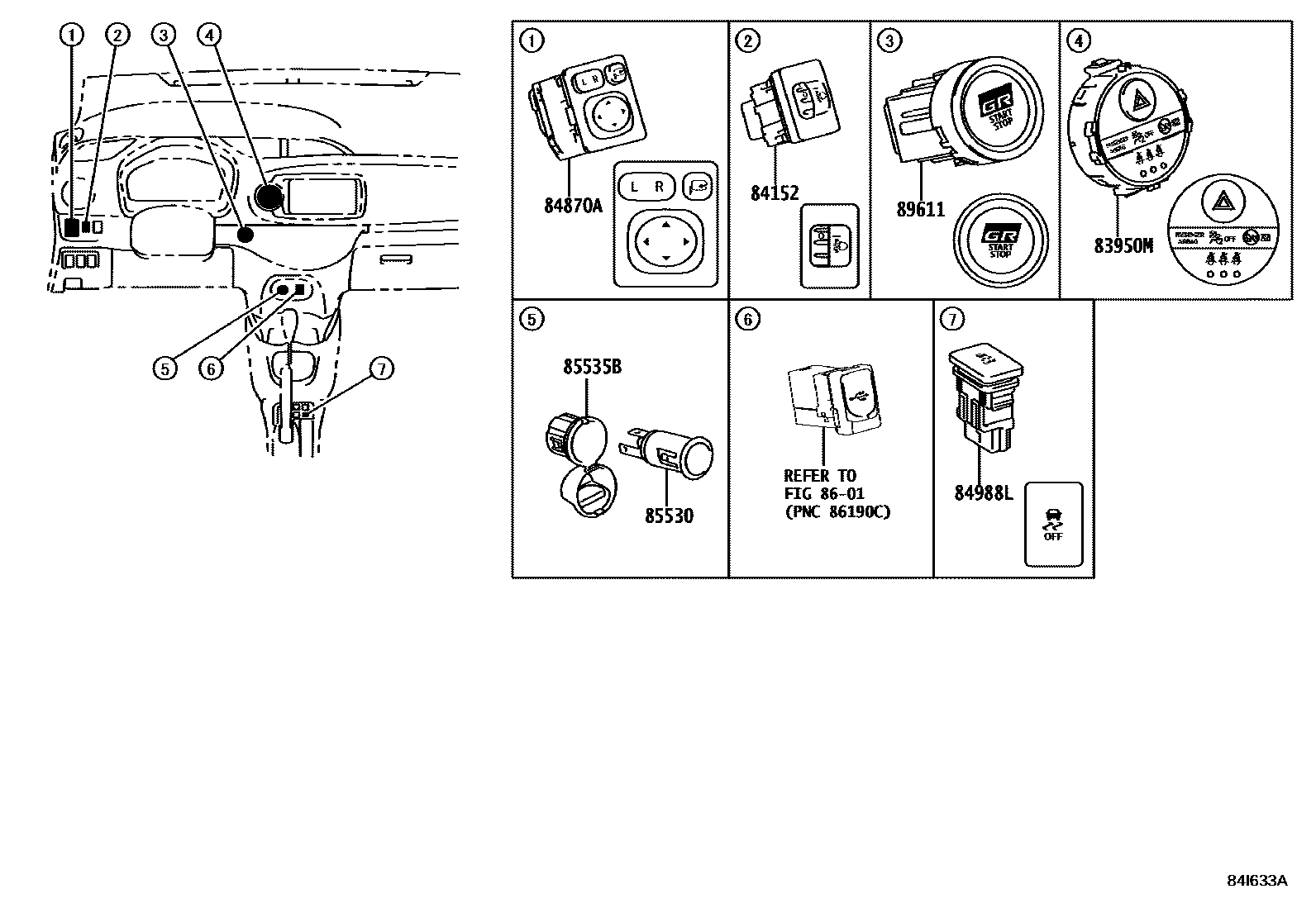

| 84870A | Exterior rearview mirror switch assembly | 84870-0D151 |
| 84988L | VSC off switch | 84988-02041 |
| 85530 | No. 1 power socket assembly | 85530-0D021 |
| 85535B | No. 1 power outlet cover | 85535-52040 |
| 85912 | defogger relay | 90080-87021 |
| 85916P | headlight relay | 90080-87030 |
| 85926 | Headlight dimmer relay | 90080-87021 |
| 85927 | cooling fan relay | 90080-87021 |
| 85927A | Cooling fan relay No. 2 | 90080-87020 · 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52032 |
| 85940 | Windshield wiper relay assembly | 85940-0D030 |
| 89111 | Network gateway ECU | 89100-52050 |
| 89120A | Automatic light control sensor | 89121-52010 |
| 89221 | Multi-channel network body ECU | 89220-0D360 · 89220-0D370 |
| 89423A | Manifold temperature sensor | 89423-YV010 |
| 89465 | oxygen sensor | 89465-02060 |
| 89465A | Oxygen sensor No. 2 | 89465-52880 |
| 89611 | push button start switch | 89611-52040 |
| 89615 | knock control sensor | 89615-02020 |
| 89650 | Power steering ECU assembly | 89650-52F10 · 89650-52F20 |
