Toyota YARIS 线束和卡夹 — Figure 8202

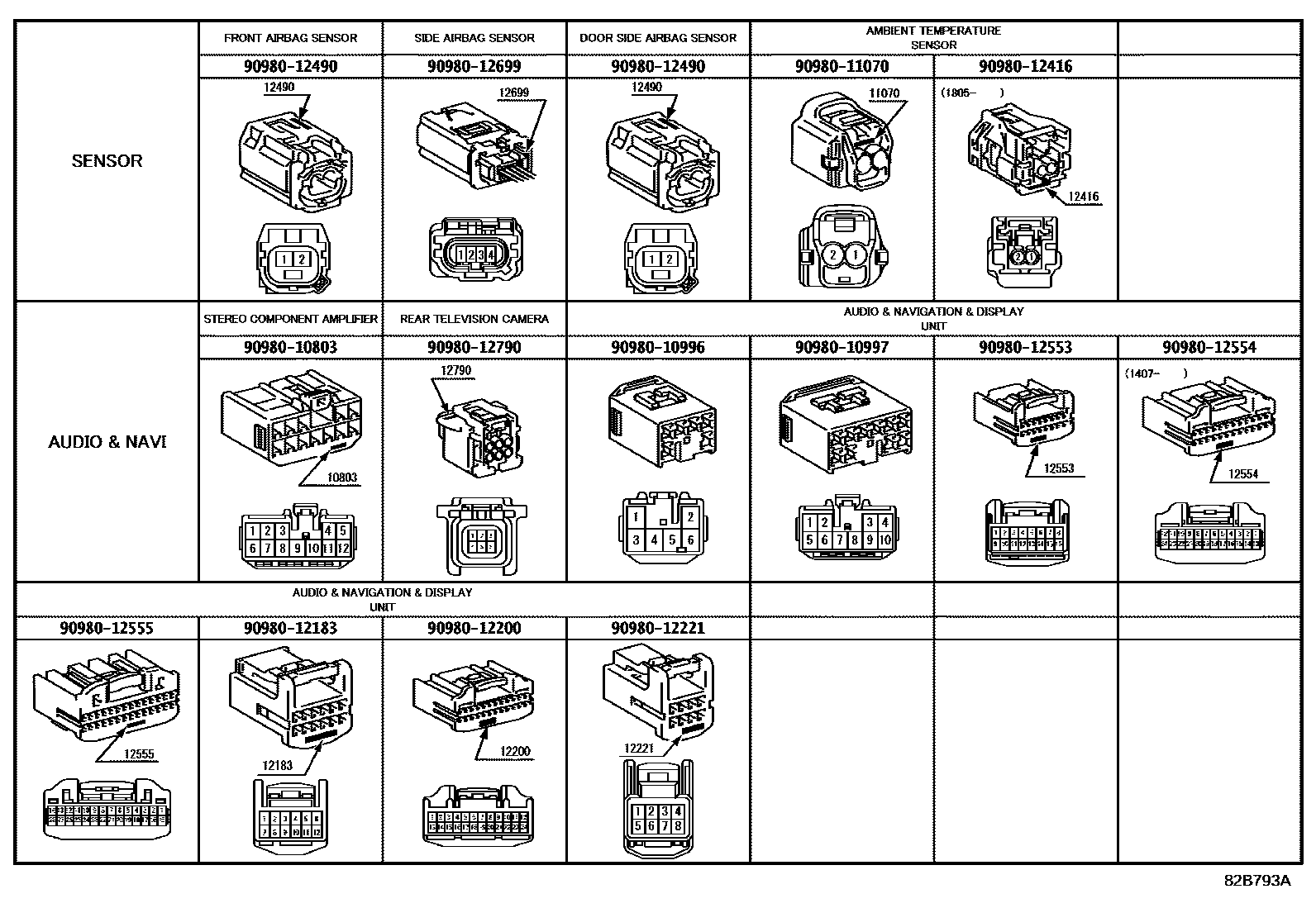

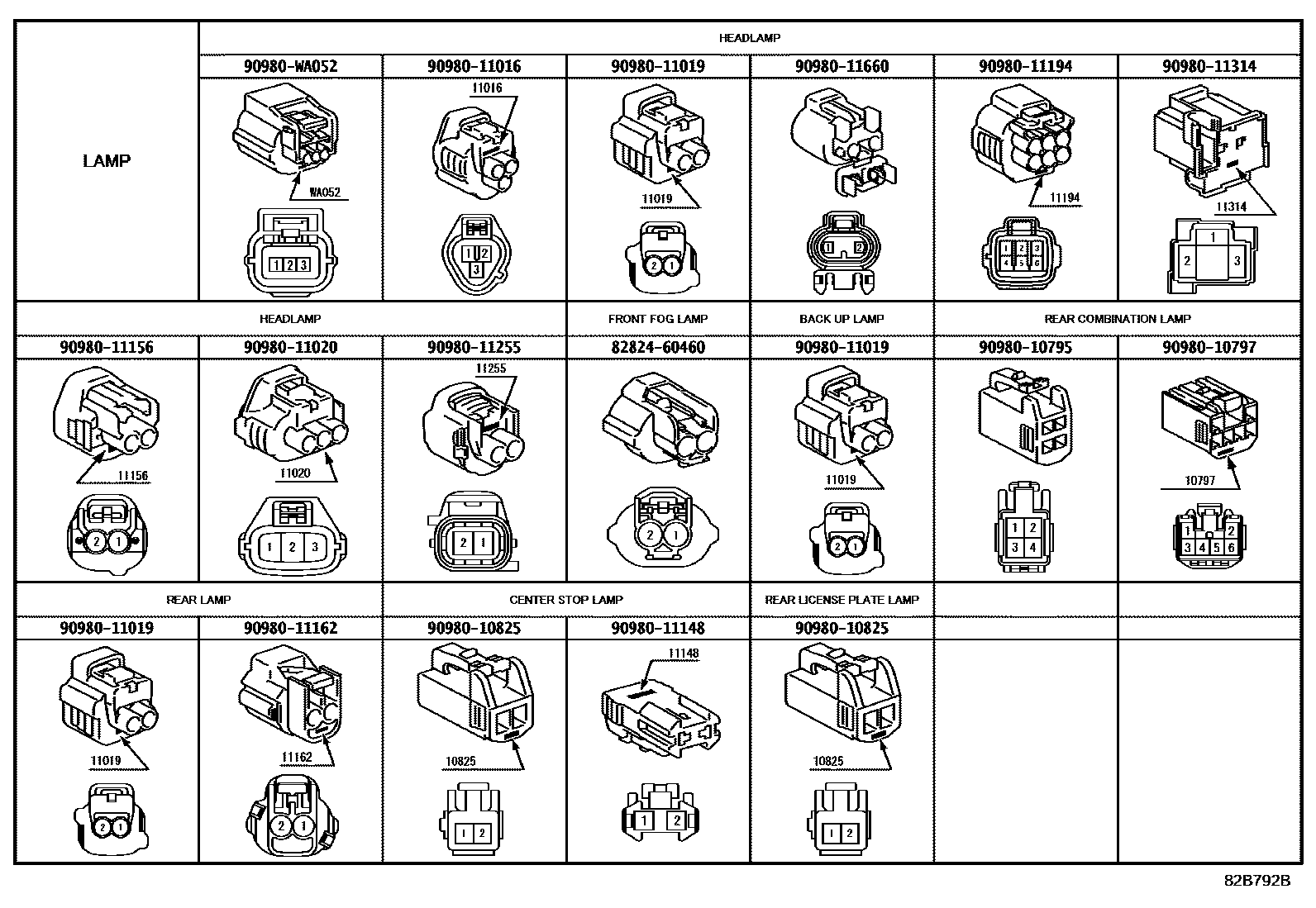

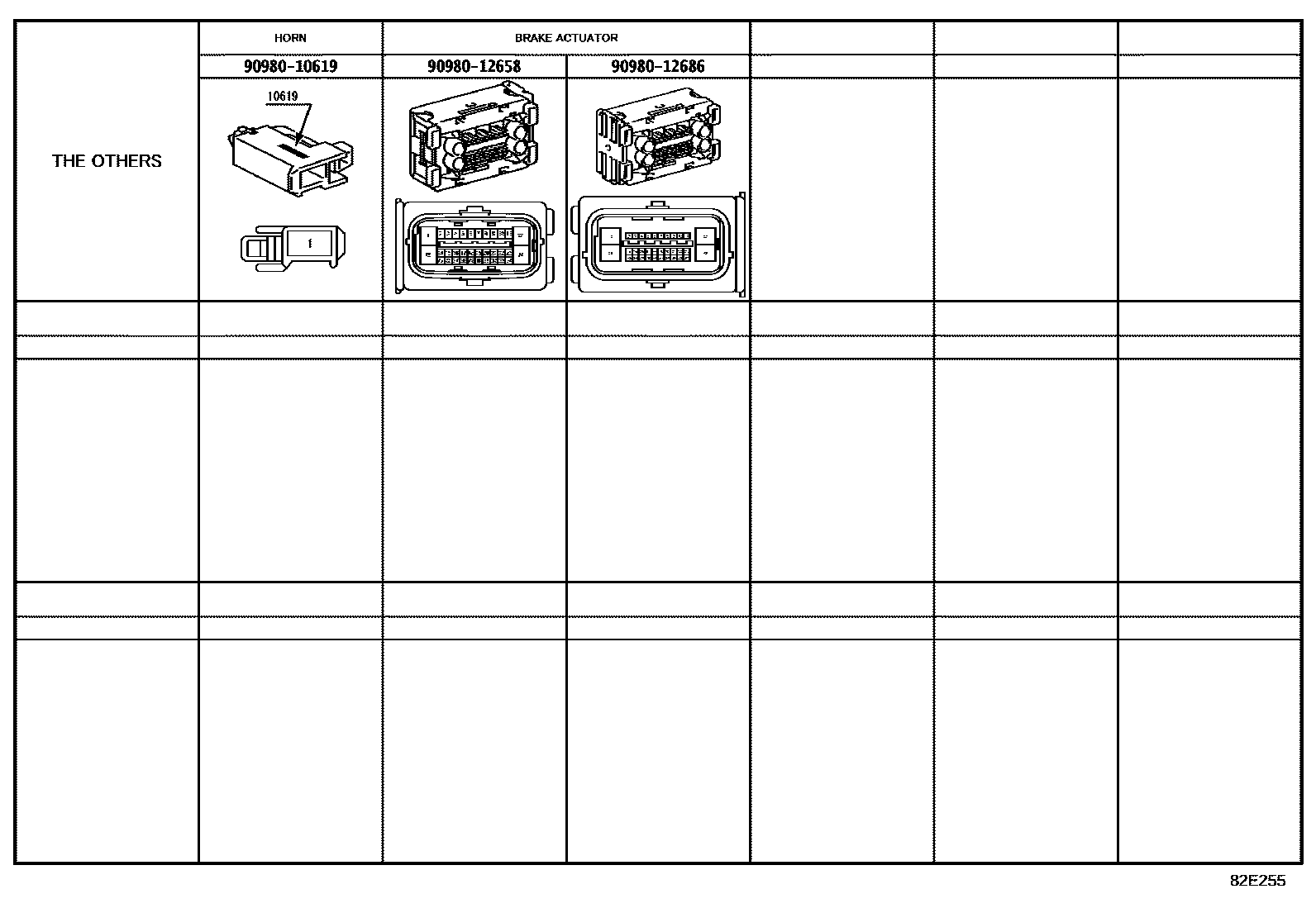

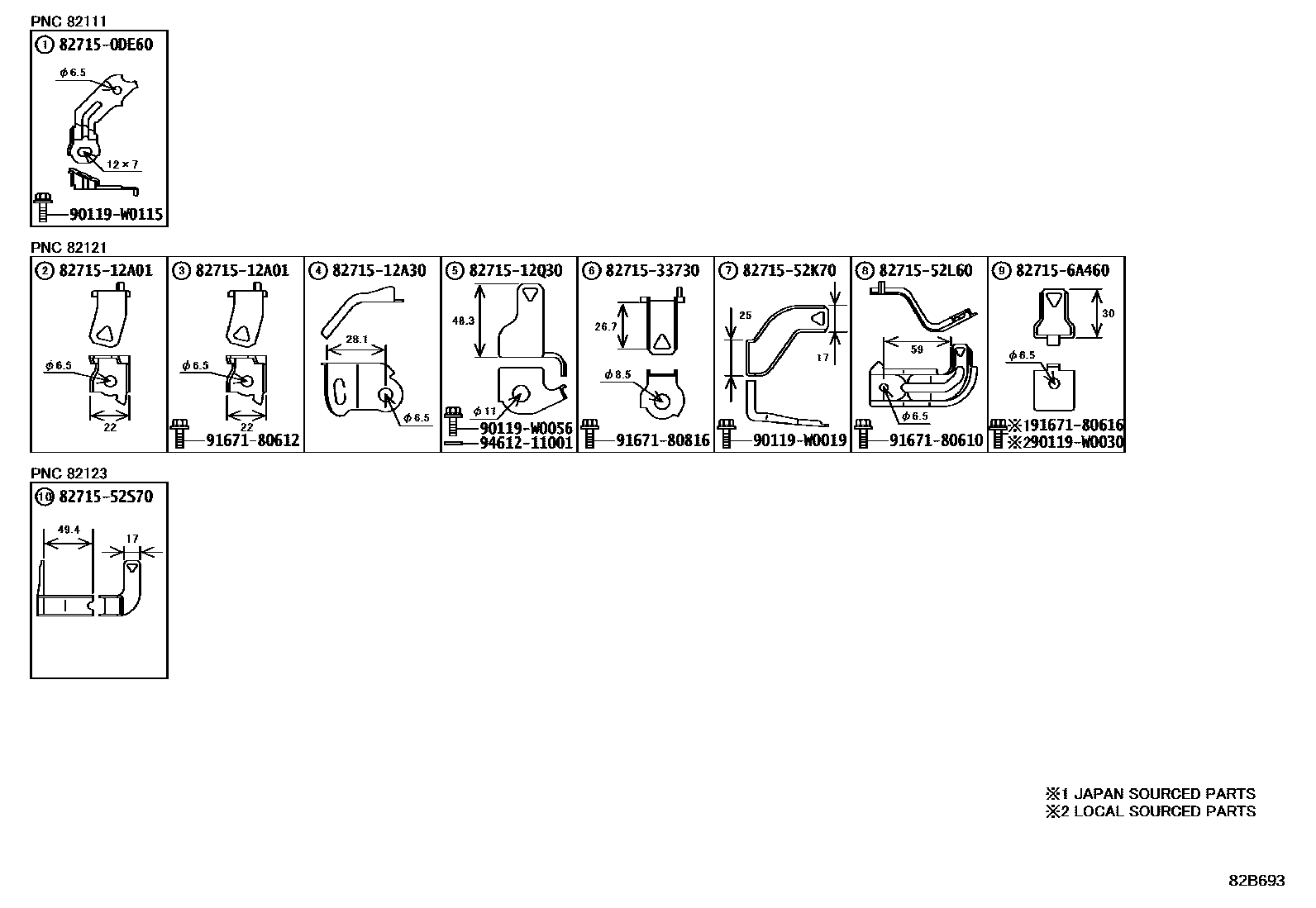

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 10 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

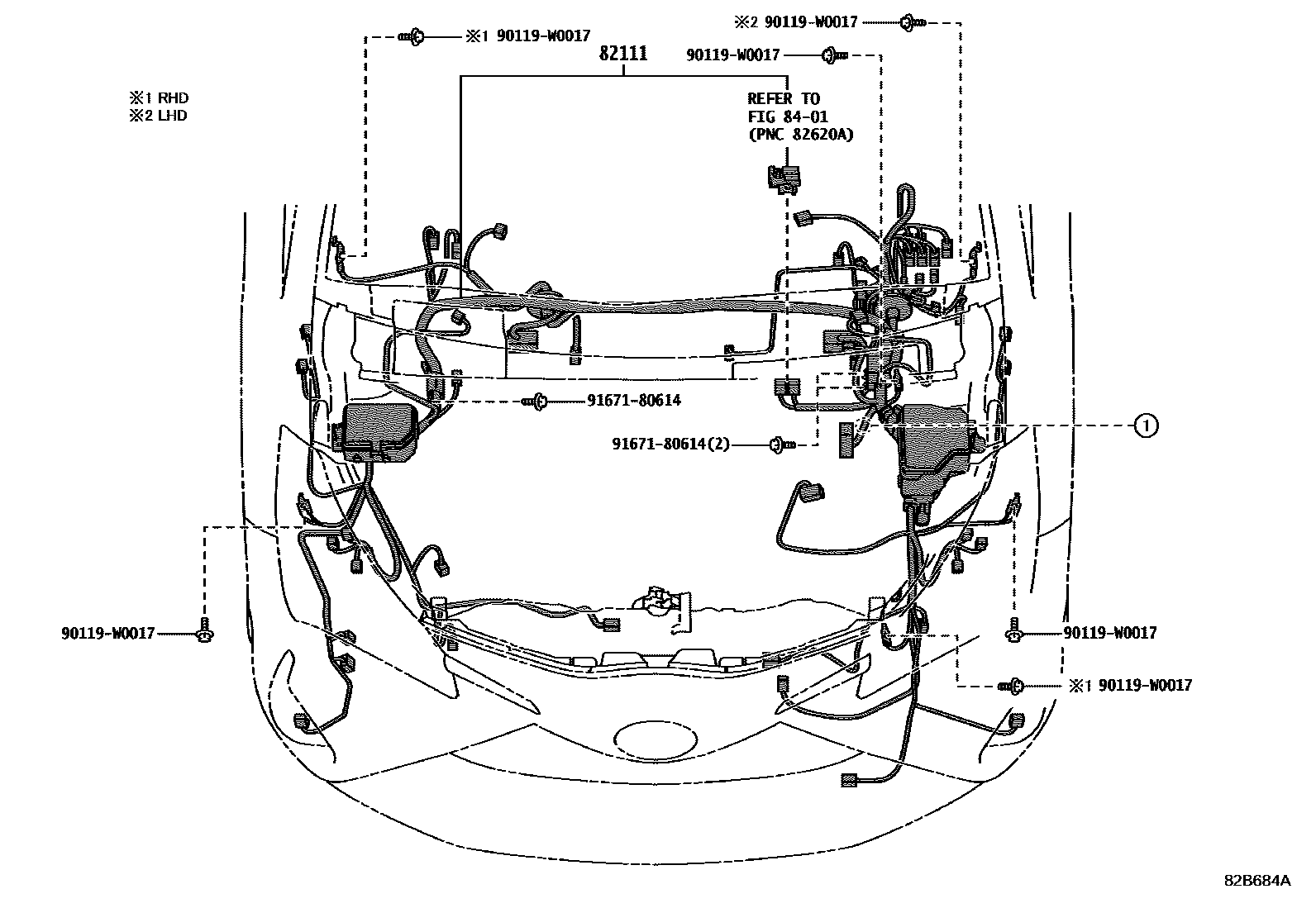

| 82111 | Engine room main wiring harness | 82111-0UX90 · 82111-0UY00 |
| 82121 | Engine wiring harness | 82121-0DN80 · 82121-0DN81 · 82121-0DP50 · 82121-0DP51 |
| 82123 | Engine No. 3 wiring harness | 82123-0D550 · 82123-0D560 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 |

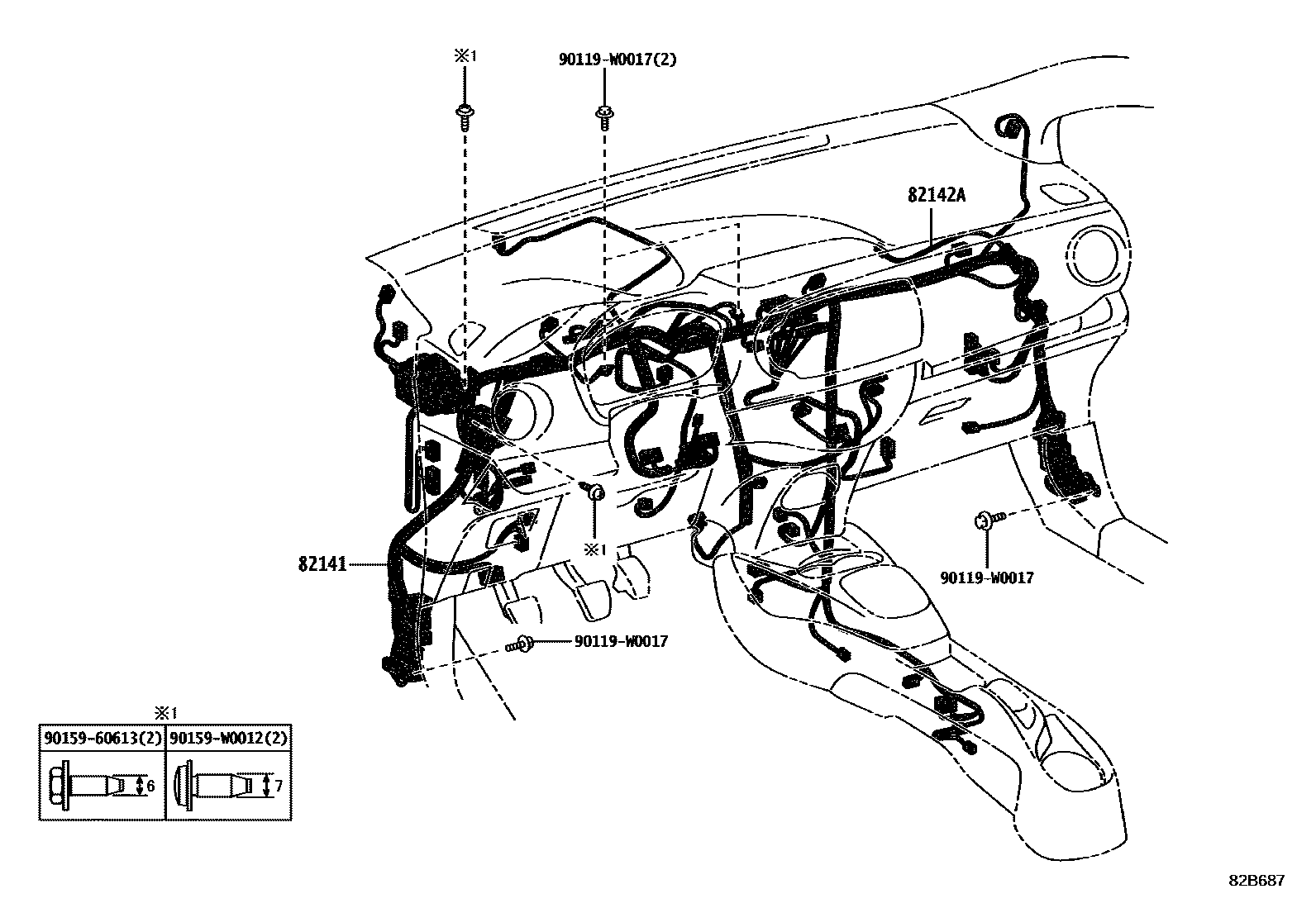

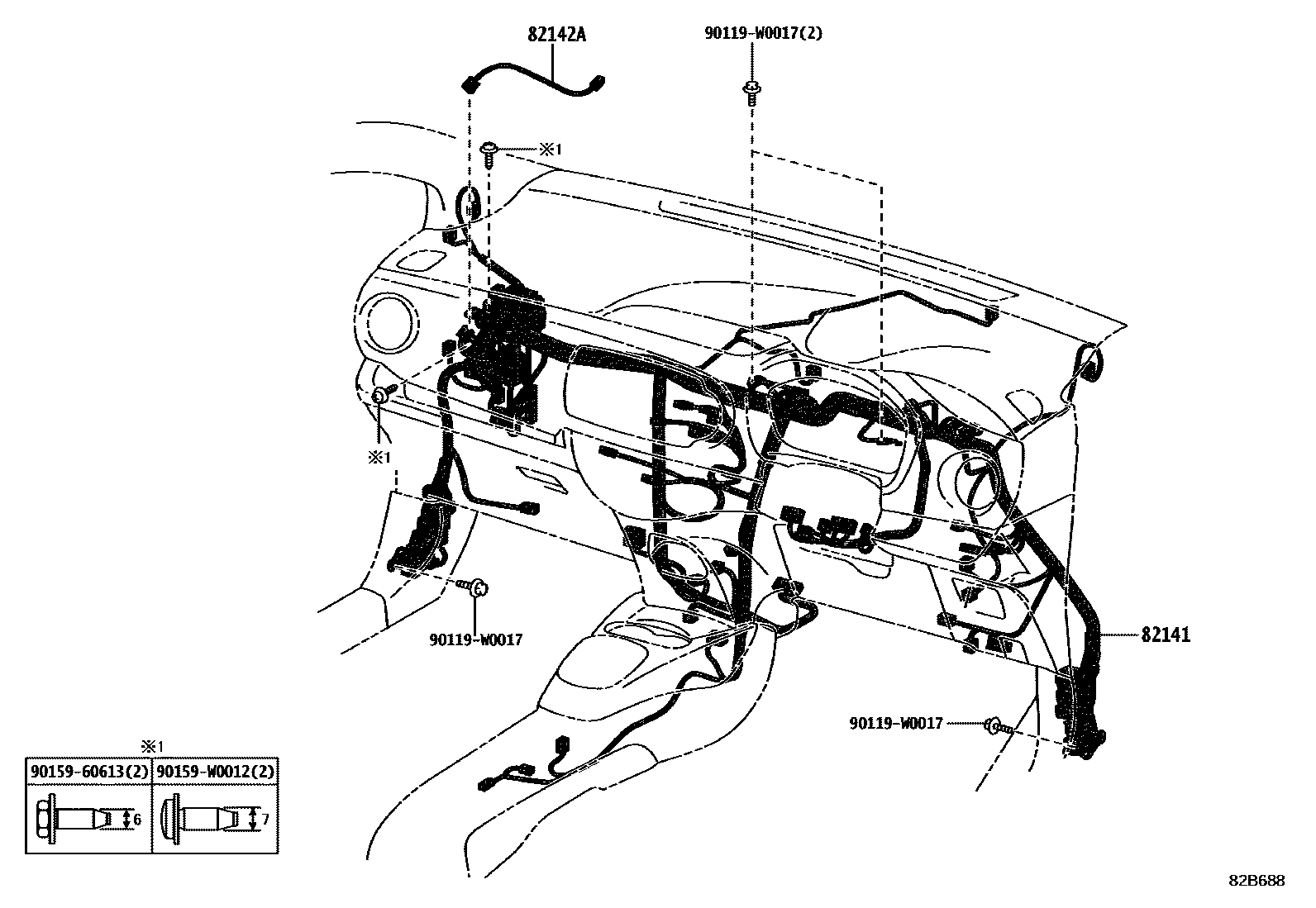

| 82141 | Dashboard wiring harness | 82141-F5010 · 82146-0UZ90 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0D050 |

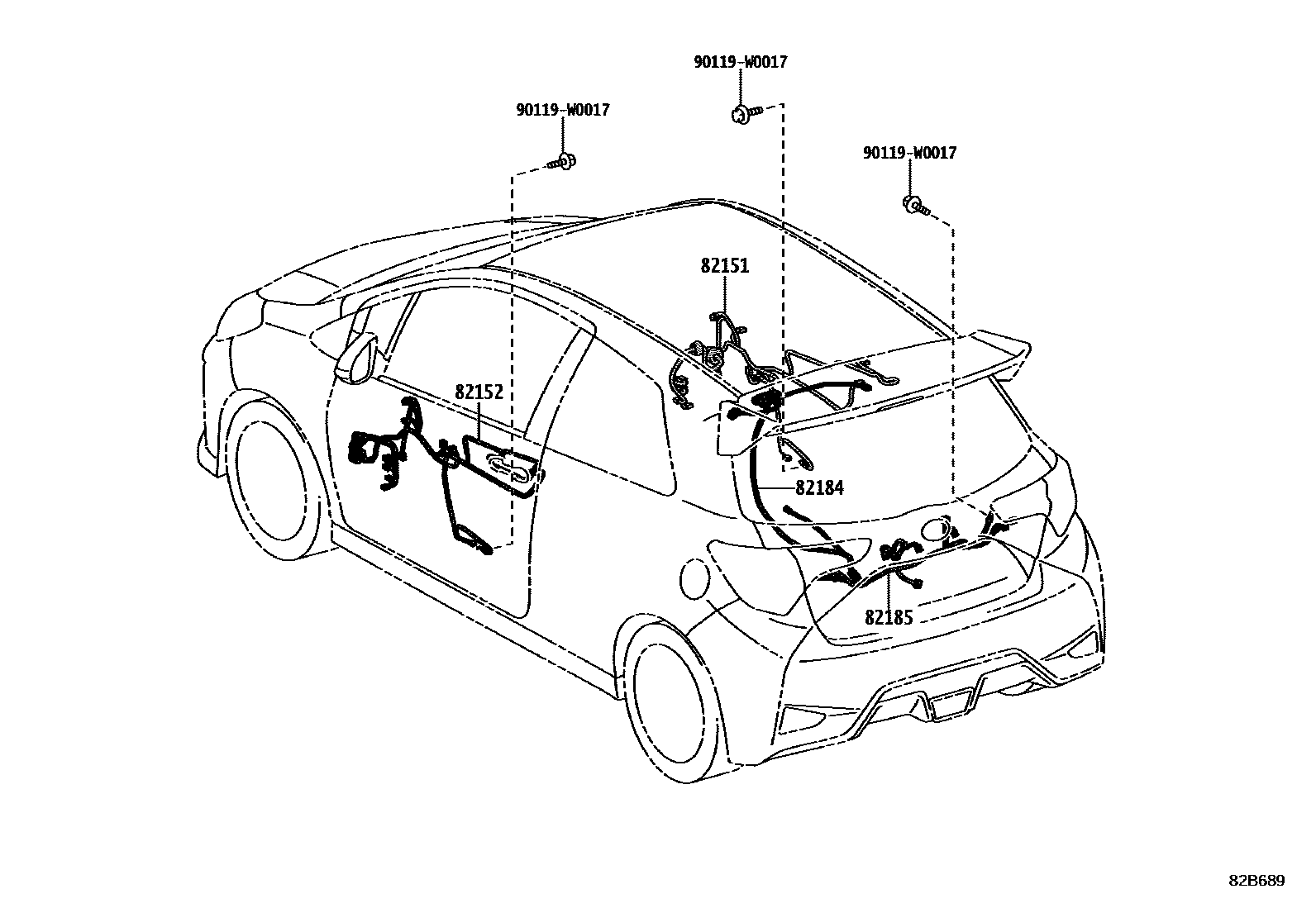

| 82151 | Right front door wiring harness | 82151-0DD90 · 82151-0DL60 |
| 82152 | Left front door wiring harness | 82152-0DL90 · 82152-0DM60 |

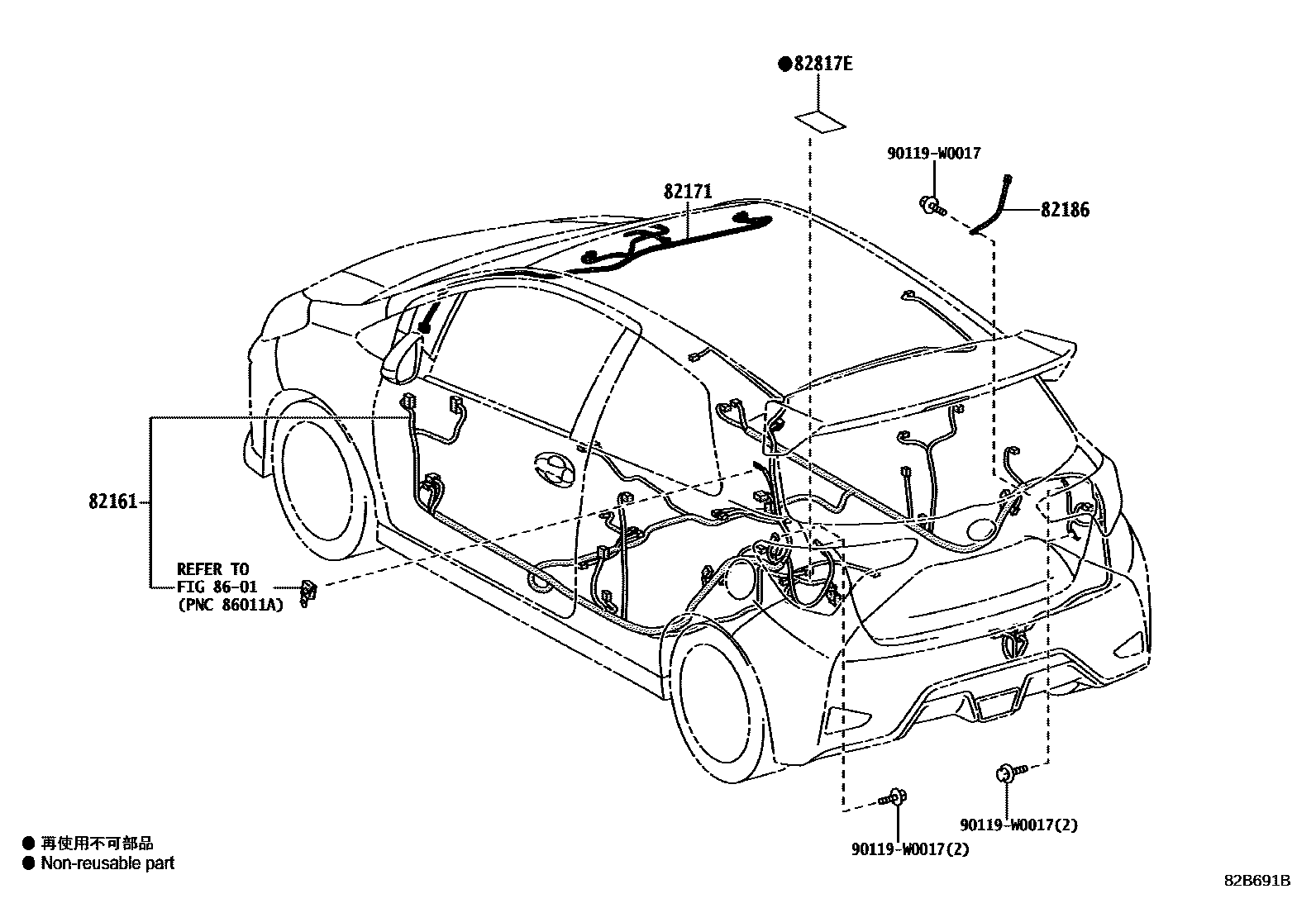

| 82161 | floor wiring harness | 82161-0DN00 · 82161-0DN20 |
| 82171 | Roof No. 1 wiring harness | 82171-0D420 |
| 82184 | Rear door No. 1 wiring harness | 82184-0D830 |
| 82185 | Rear door wiring harness No. 2 | 82185-0DA30 · 82185-0DC00 |
| 82186 | Rear window wiring harness No. 1 | 82186-0D290 |
| 82815A | Wiring harness protector cover | 82815-02250 · 82815-12560 |
| 82815B | Wiring harness protector cover | 82815-02270 |
| 82815G | Wiring harness protector cover | 82815-52120 |
| 82817 | No. 1 wire harness protection device | 82817-02760 · 82817-12L40 |
| 82817A | No. 2 wire harness protection device | 82817-02780 |
| 82817B | No. 3 wire harness protection device | 82817-52620 |
| 82817C | No. 4 wire harness protection device | 82817-52740 |
| 82817D | No. 5 wire harness protection device | 82817-52850 |
| 82817E | No. 6 wire harness protection device | 82817-52710 |
