Toyota YARIS 后组合灯 — Figure 8111

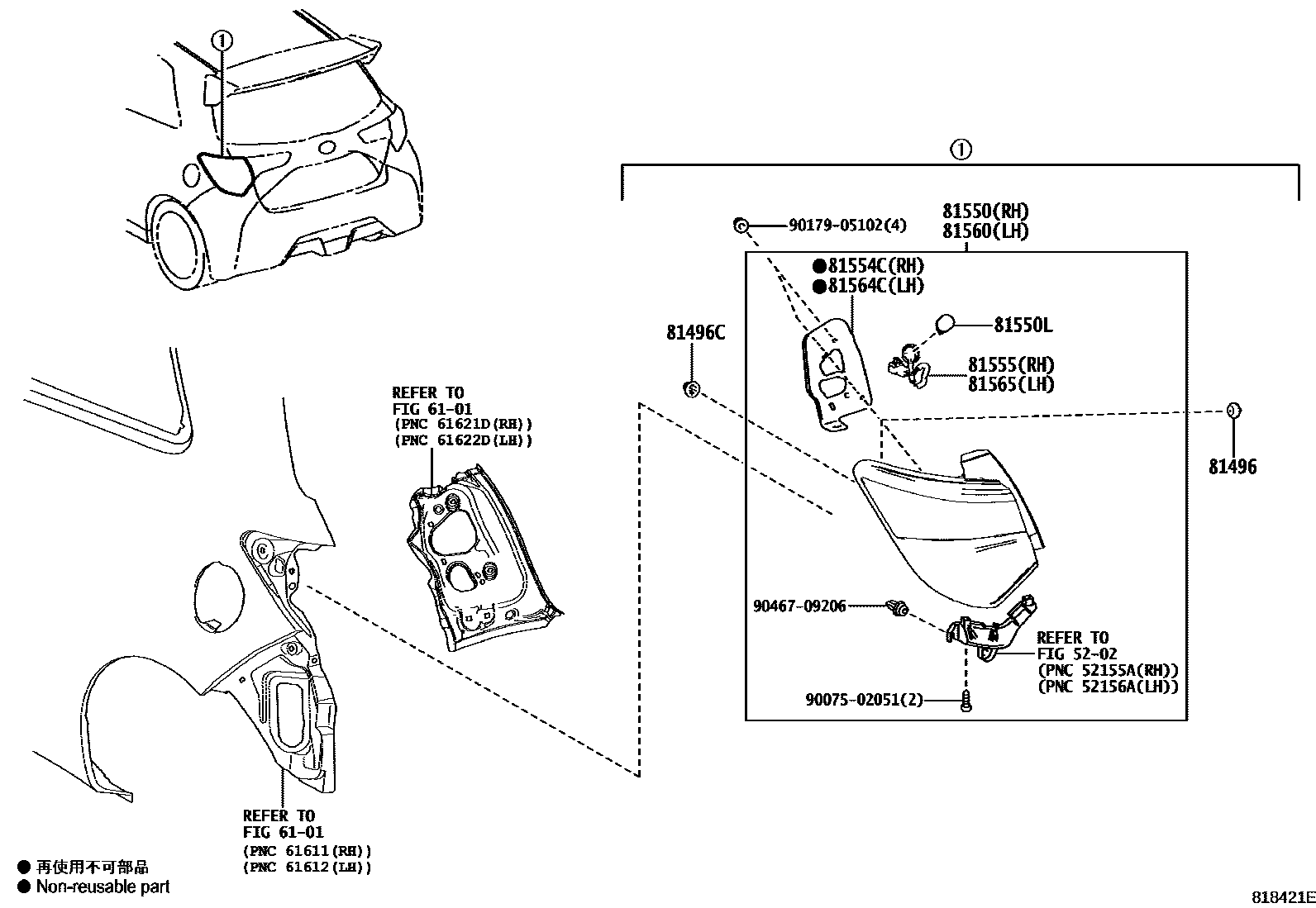

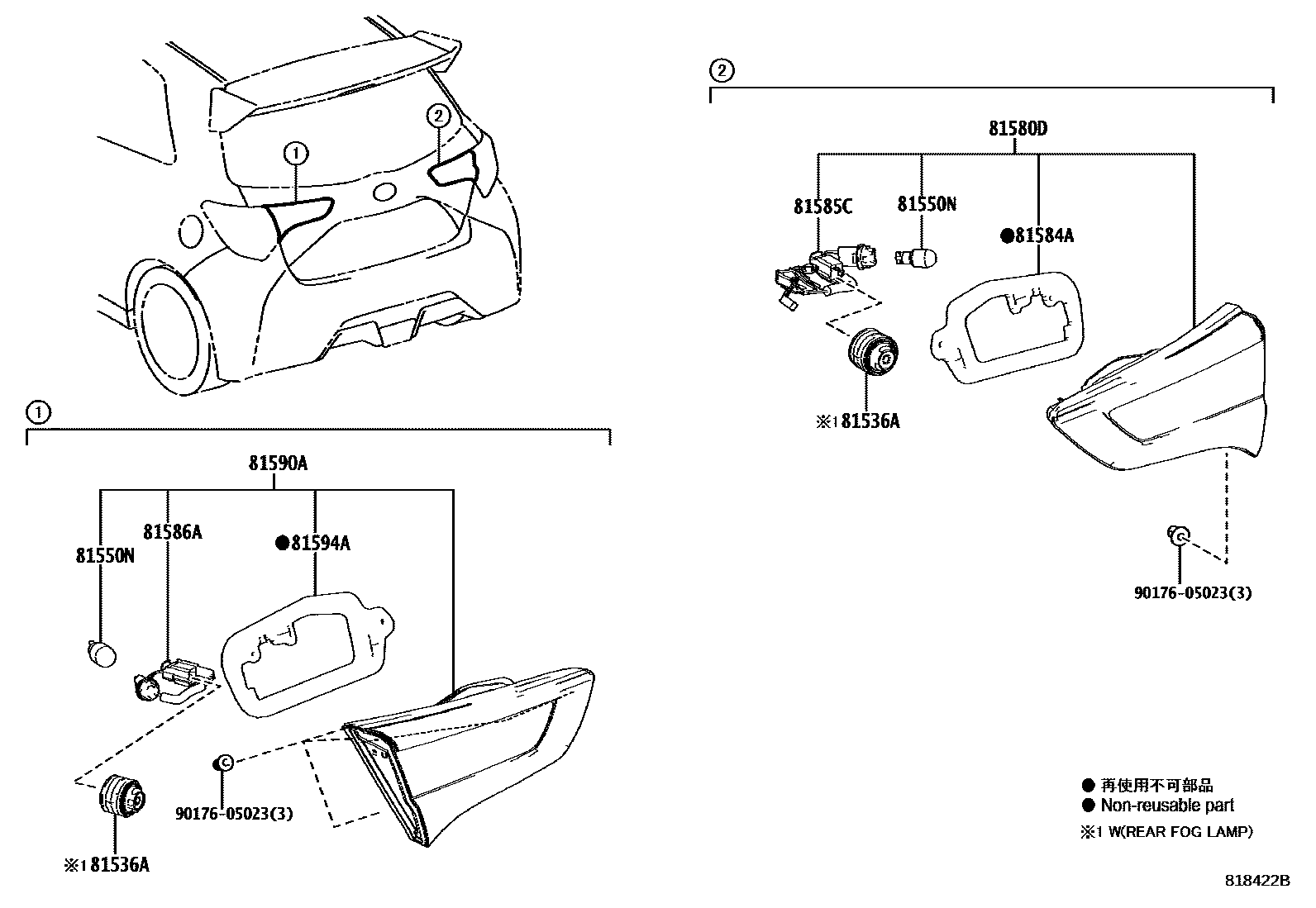

Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81536A | Rear LED combination light | 8158A-0D610 |
| 81550 | Right rear combination light assembly | 81550-0DB70 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81554C | Right rear combination lamp lamp body seal | 81552-0DB60 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0DB70 |
| 81560 | Left rear combination light assembly | 81560-0DB70 |
| 81564C | Left rear combination lamp body seal | 81562-0DB60 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0DB70 |
| 81580D | Right rear light assembly | 81580-0D620 · 81581-0D630 |
| 81584A | Right rear light gasket | 81582-0D600 |
| 81585C | Right rear light lamp holder and wiring harness | 81586-0D620 · 81586-0D630 |
| 81586A | DOUILLE CABLE, PROJECTEUR D'ECLAIR. ARR., GAUCHE | 81586-0D620 · 81586-0D630 |
| 81590A | Left rear light assembly | 81590-0D630 · 81591-0D620 |
| 81594A | Left rear light gasket | 81592-0D600 |
