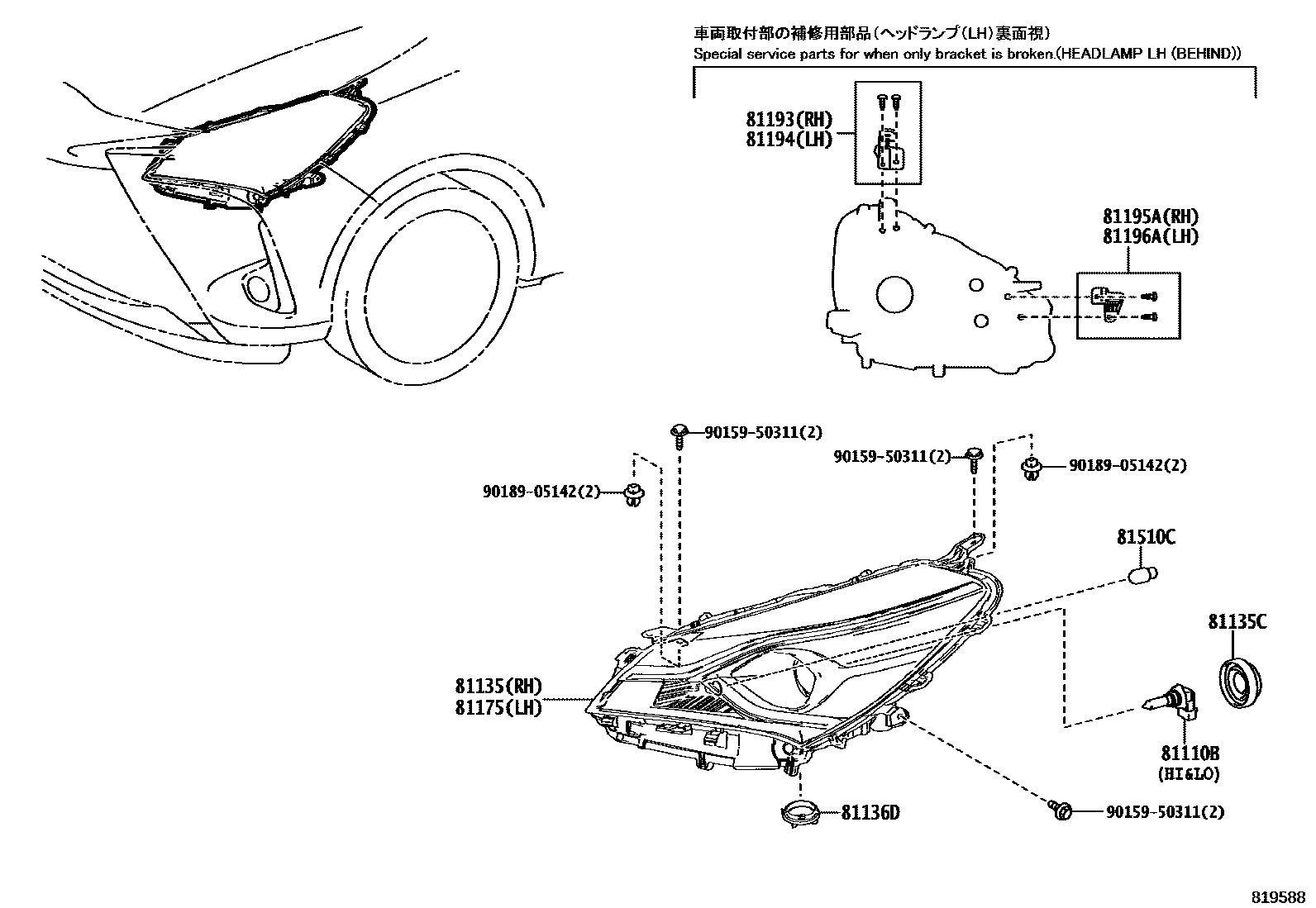

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81135 | Right headlight assembly | 81130-0DL50 · 81130-0DL60 |
| 81135C | No. 1 headlight rear cover | 90075-65006 |
| 81136D | headlight cover | 90075-66017 |
| 81175 | Left headlight assembly | 81170-0DL50 · 81170-0DL60 |
| 81193 | Right headlight upper protective ring | 81193-0D100 |
| 81194 | Left headlight upper protective ring | 81194-0D100 |
| 81195A | Right headlight lower protection ring | 81195-0D090 |
| 81196A | Left headlight lower protection ring | 81196-0D090 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
