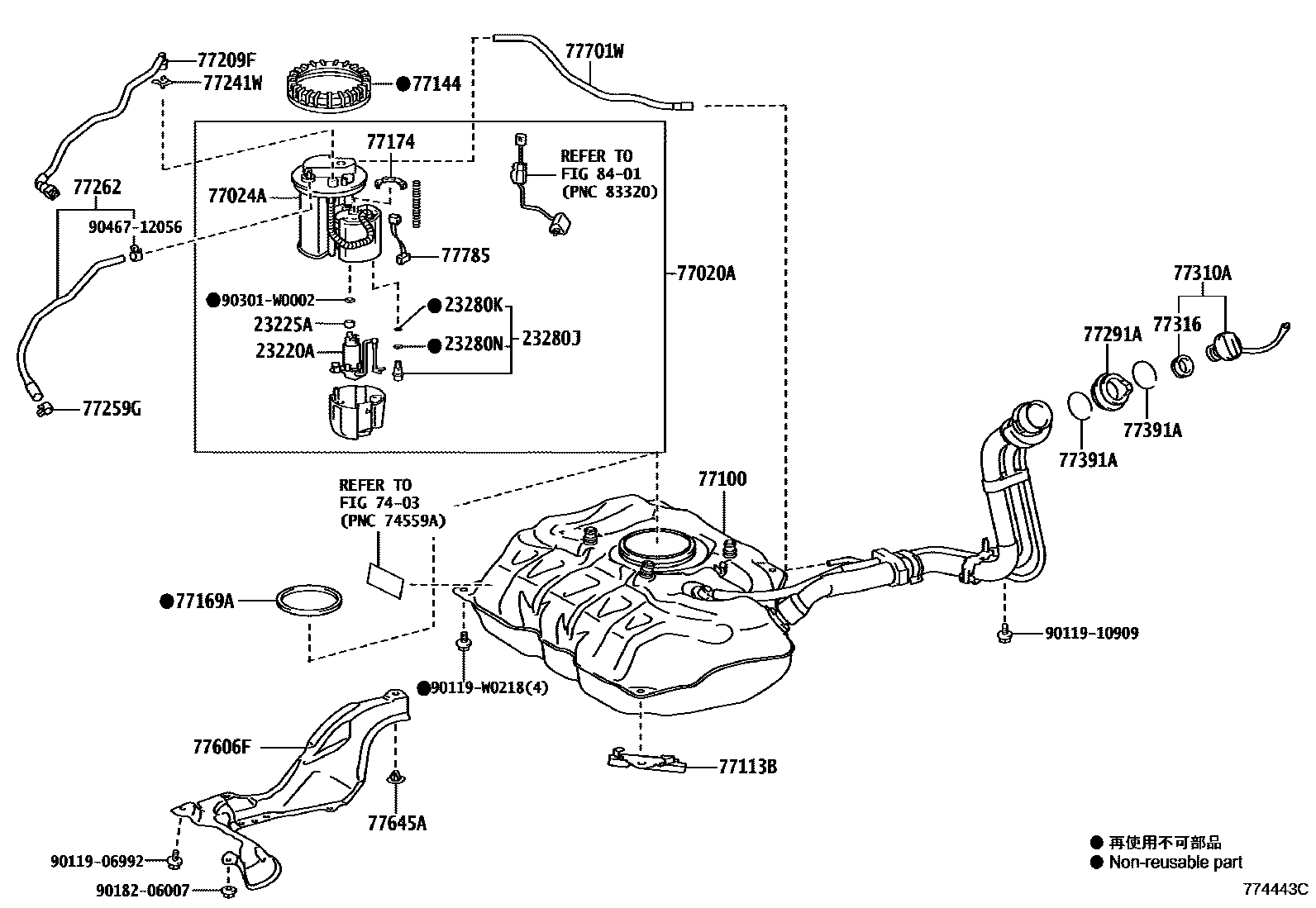

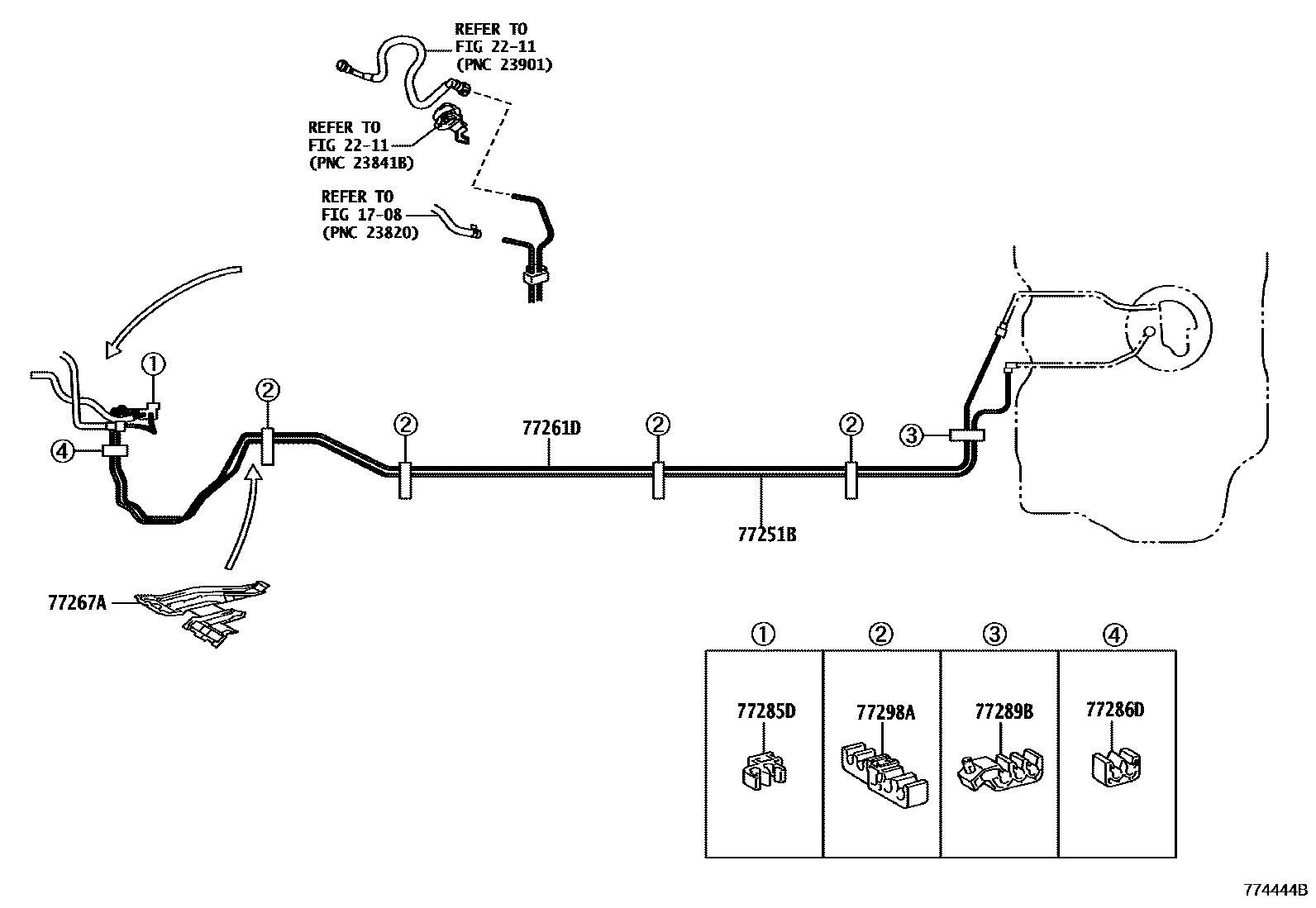

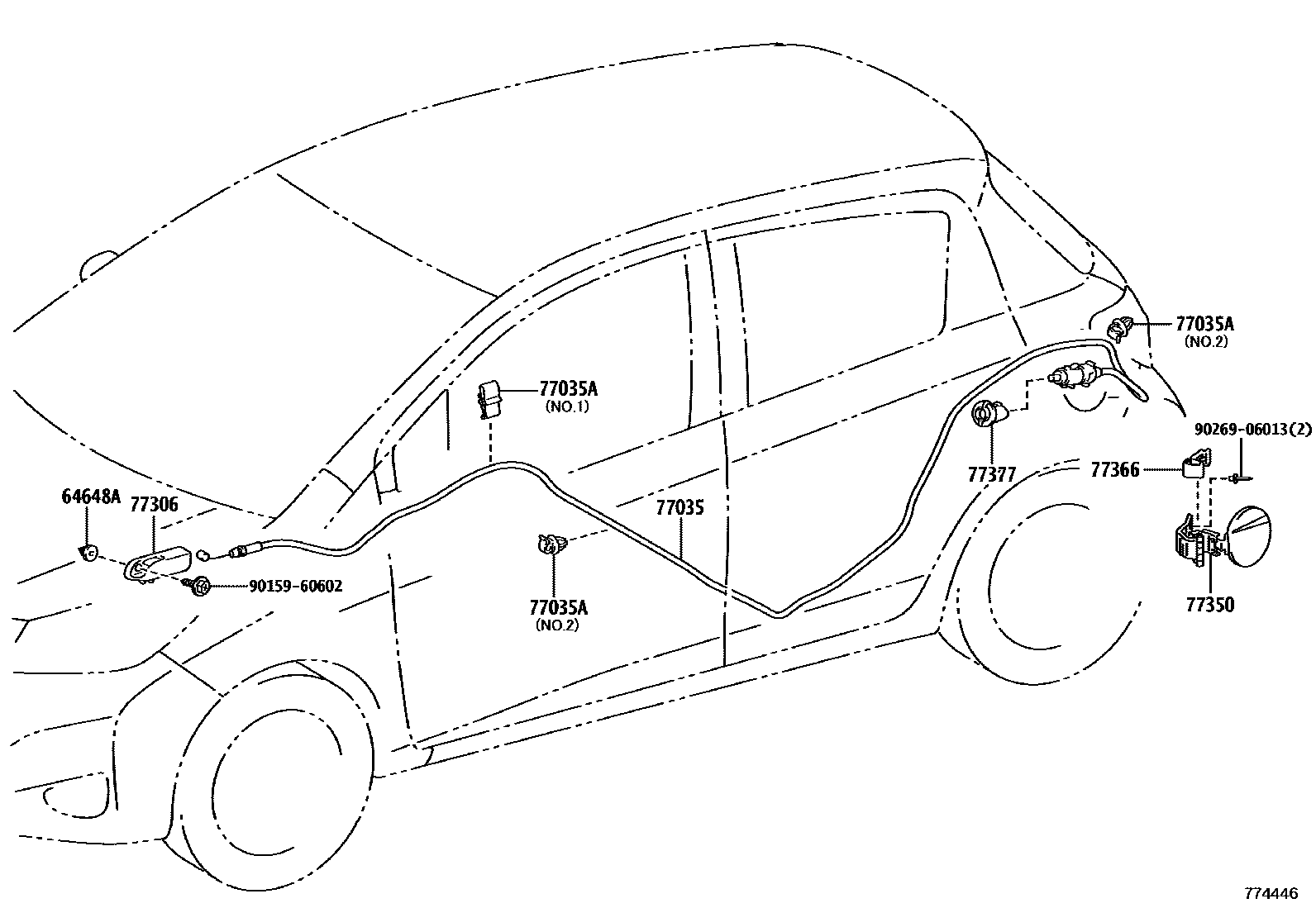

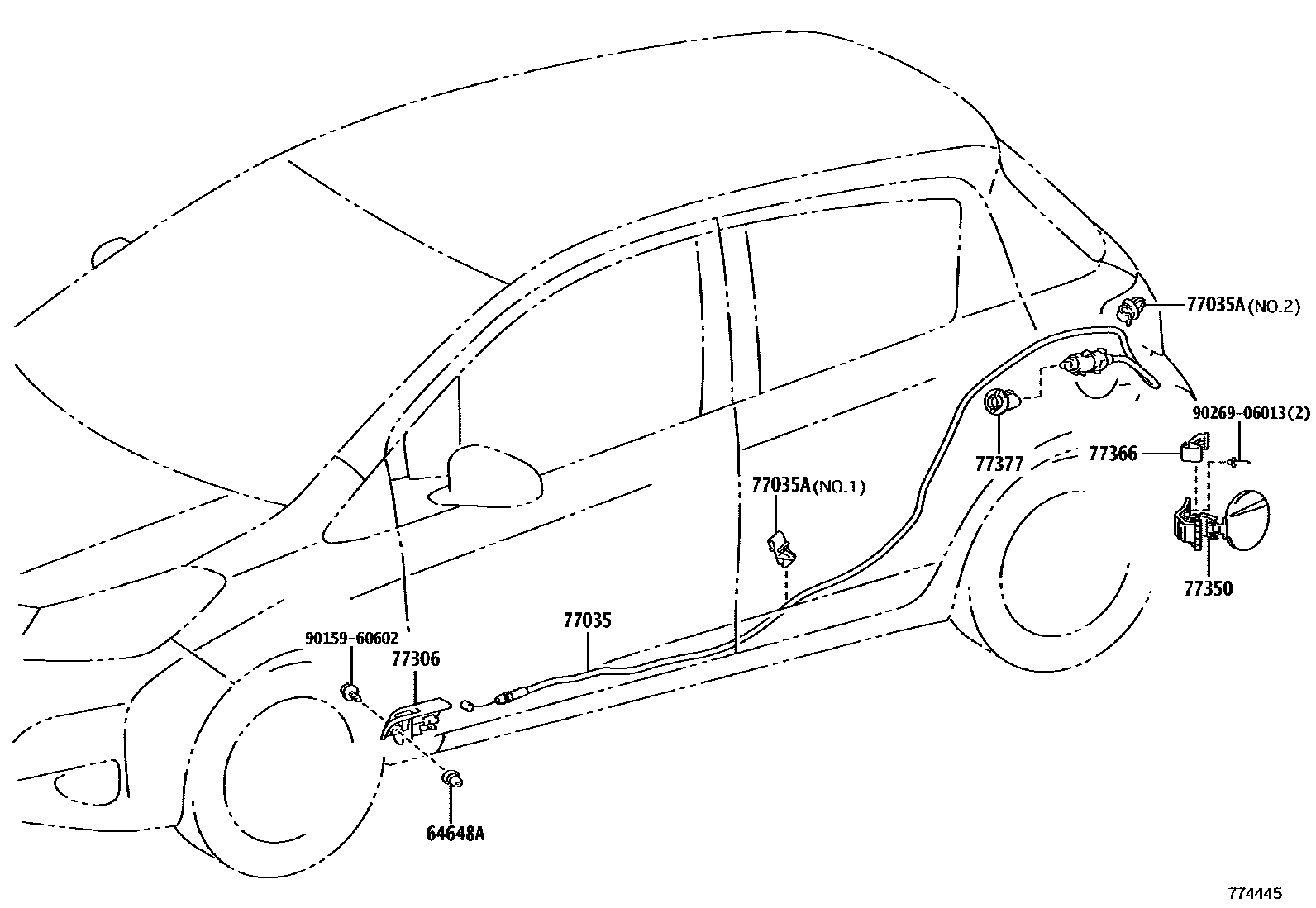

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0T071 |
| 23225A | fuel pump septum | 23225-0T010 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D400 |
| 77024A | Fuel absorber sub-assembly | 77024-0D080 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D630 · 77035-0D640 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-04004 · 90469-06005 |
| 77100 | fuel tank assembly | 77001-0D160 |
| 77113B | fuel tank side panel | 77113-0D050 |
| 77144 | Fuel pump instrument fixture | 77144-0D070 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D070 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D050 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0D280 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-0D270 |
| 77259G | fuel hose clip | 90466-13005 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D230 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77028-0D200 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-52100 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77291A | Fuel tank filler pipe cover | 77291-0D130 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0D110 · 77306-0D120 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-0D080 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-0D060 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-0D050 · 77606-0D060 |
| 77645A | Fuel tank protective shell fixings | 77645-52040 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-0D170 |
| 77785 | fuel pump wiring harness | 77785-0D080 |
