Toyota YARIS 后防护条 — Figure 7504

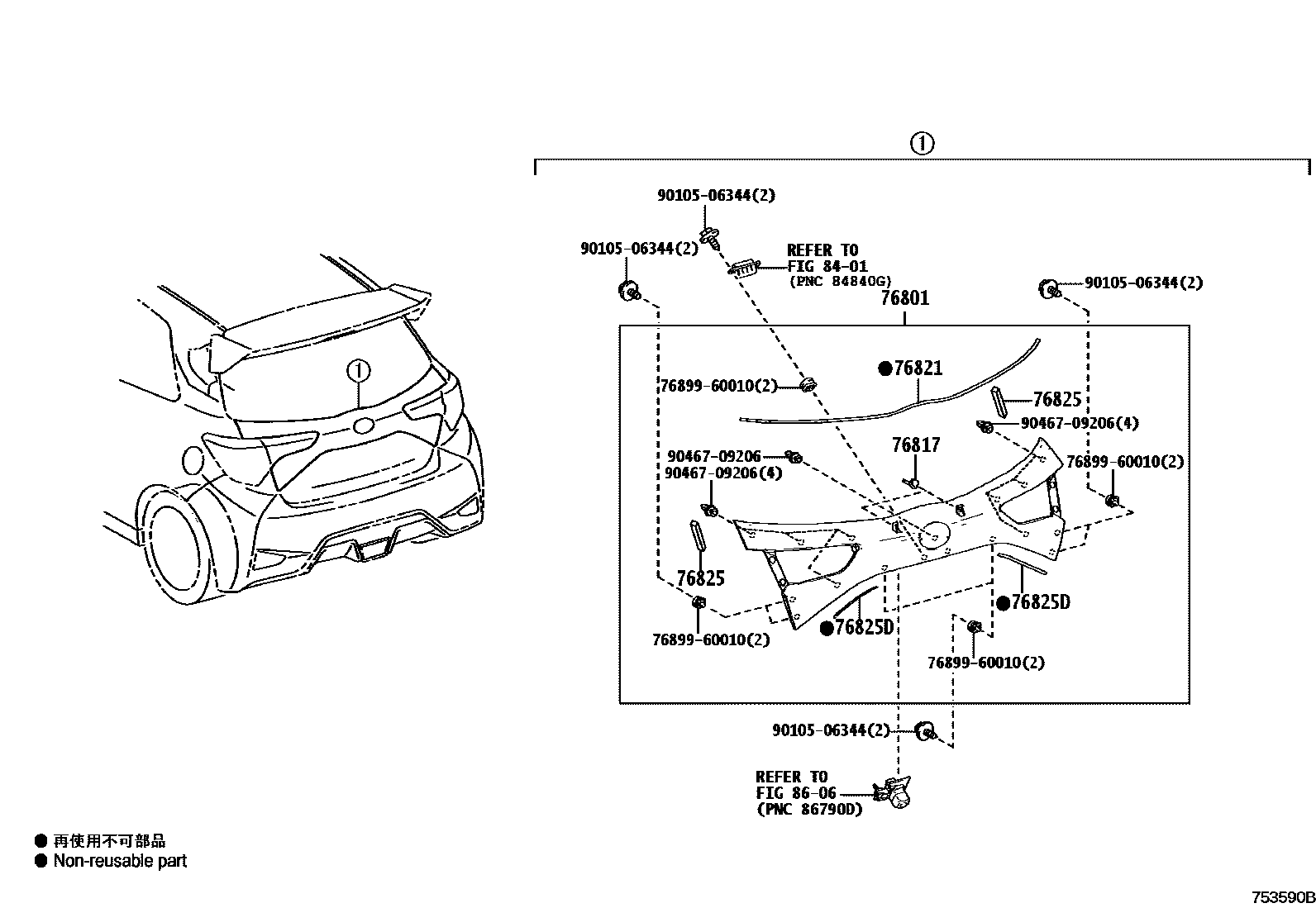

Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0D922 |
| 76817 | Rear door exterior decorative strip clip | 76813-0D010 |
| 76821 | Protective cover for rear door trim strip | 76821-0D390 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D290 |
| 76825D | No. 1 protective cover for rear door exterior trim strip | 76822-0D200 |
