Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 15 PNC and OE references.

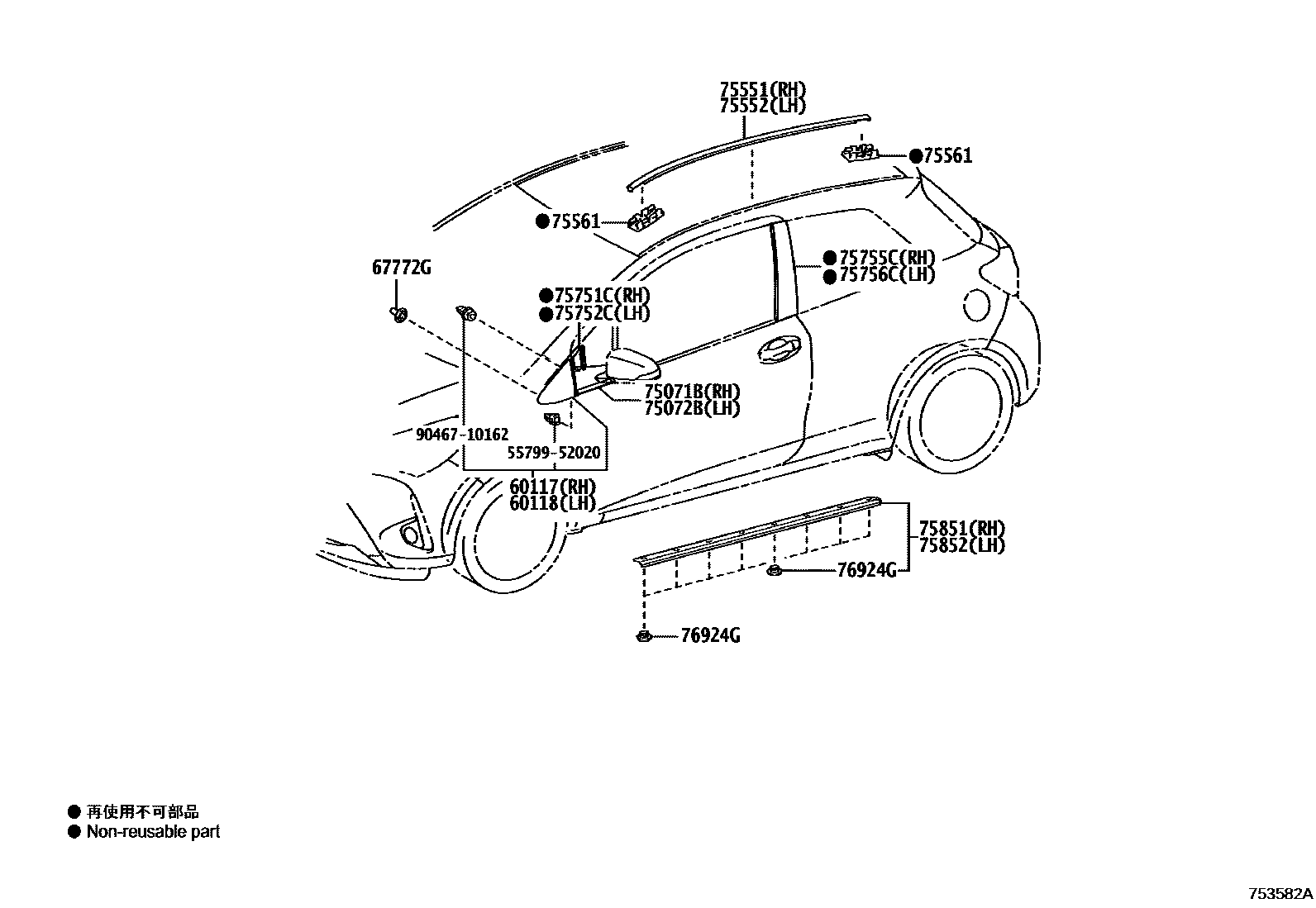

Toyota YARIS 侧防护条 EPC diagram — 753582A
侧防护条 — 753582A (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0D190
60118Left front pillar upper cover sub-assembly60118-0D190
67772Gfront pillar cover67772-95J03
75071BRight front door outer upper protective strip sub-assembly75737-0D010
75072BLeft front door outer upper protective strip sub-assembly75738-0D010
75551Drainage groove side decorative strip on the right side of the roof75551-0D131
75552Drainage groove side decorative strip on the left side of the roof75552-0D081
75561No. 1 roof drain channel side decorative strip clip75561-33030
75751CRight front door window frame front protective strip75751-0D040
75752CLeft front door window frame front protective strip75752-0D040
75755CRight front door window frame rear protective strip75755-0D020
75756CLeft front door window frame rear protective strip75756-0D020
75851Right side door sill panel protective strip75851-0D020
75852Left side door sill panel protective strip75852-0D020
76924GDoor sill panel protective strip fixings76924-12040
