Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

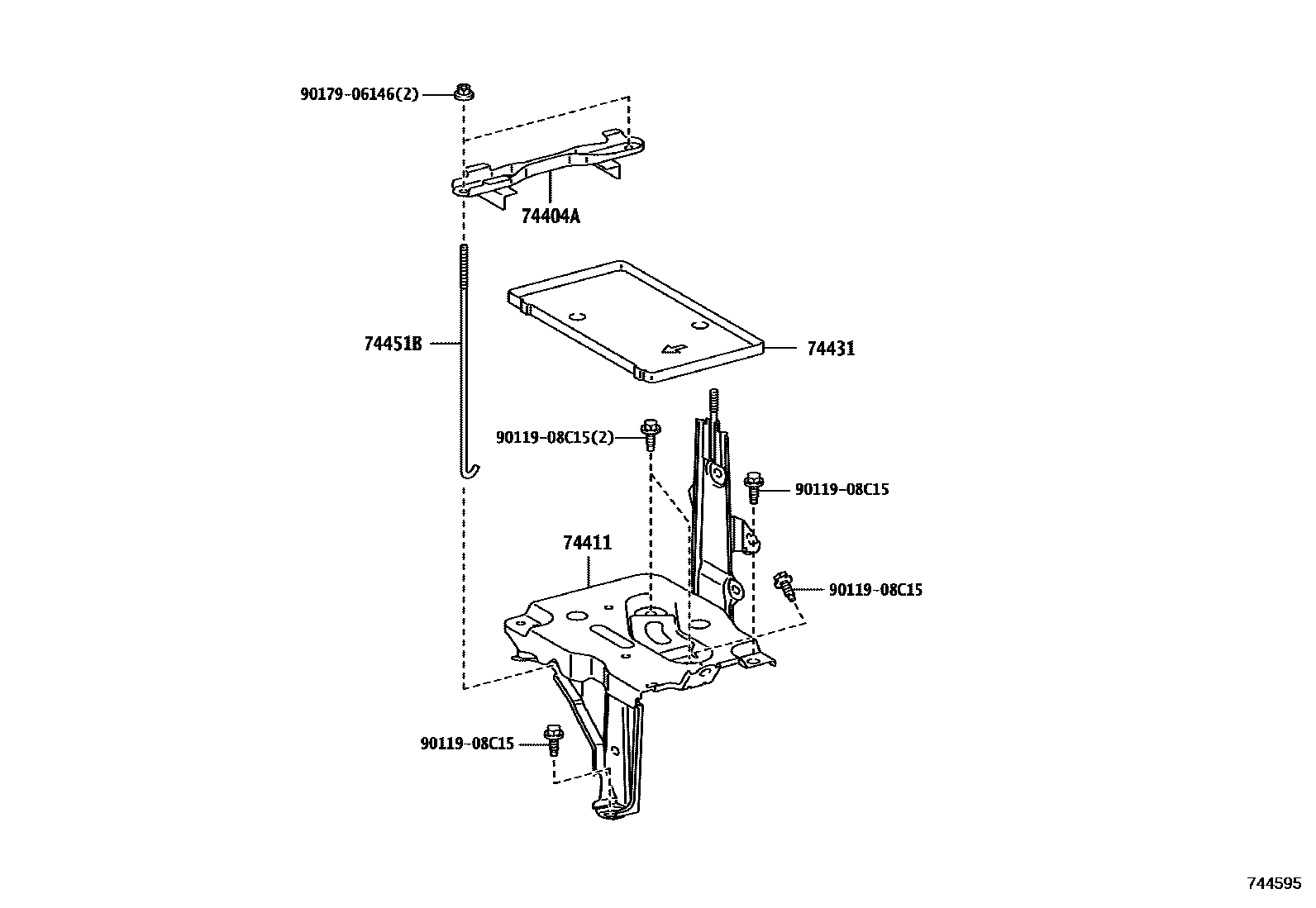

Toyota YARIS battery holder EPC diagram — 744595
battery holder — 744595 (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0D130
74411battery holder74410-0D090 · 74410-0D100
74431battery tray74431-0D110
74451BBattery clamp bolt74451-0D080
