Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

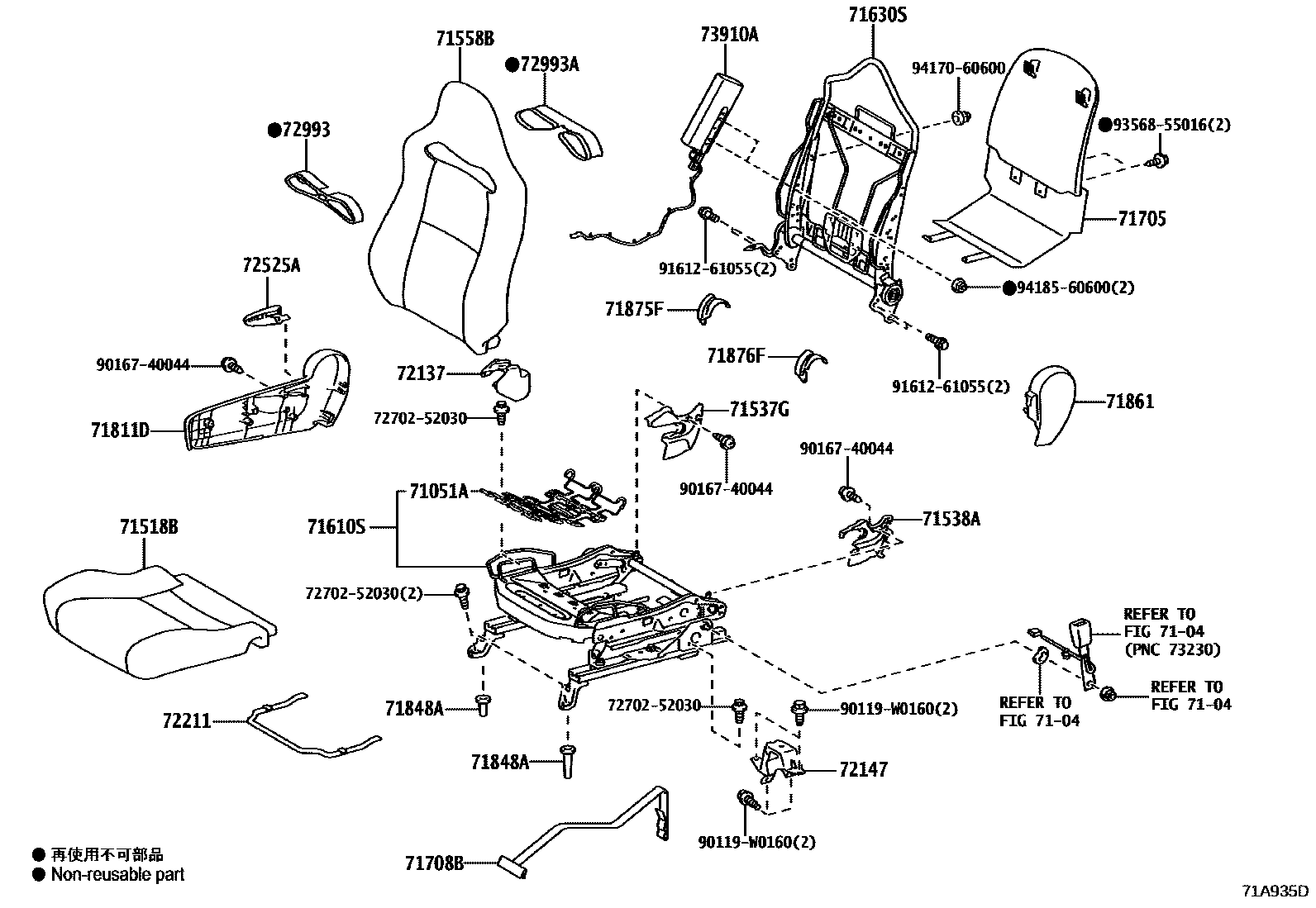

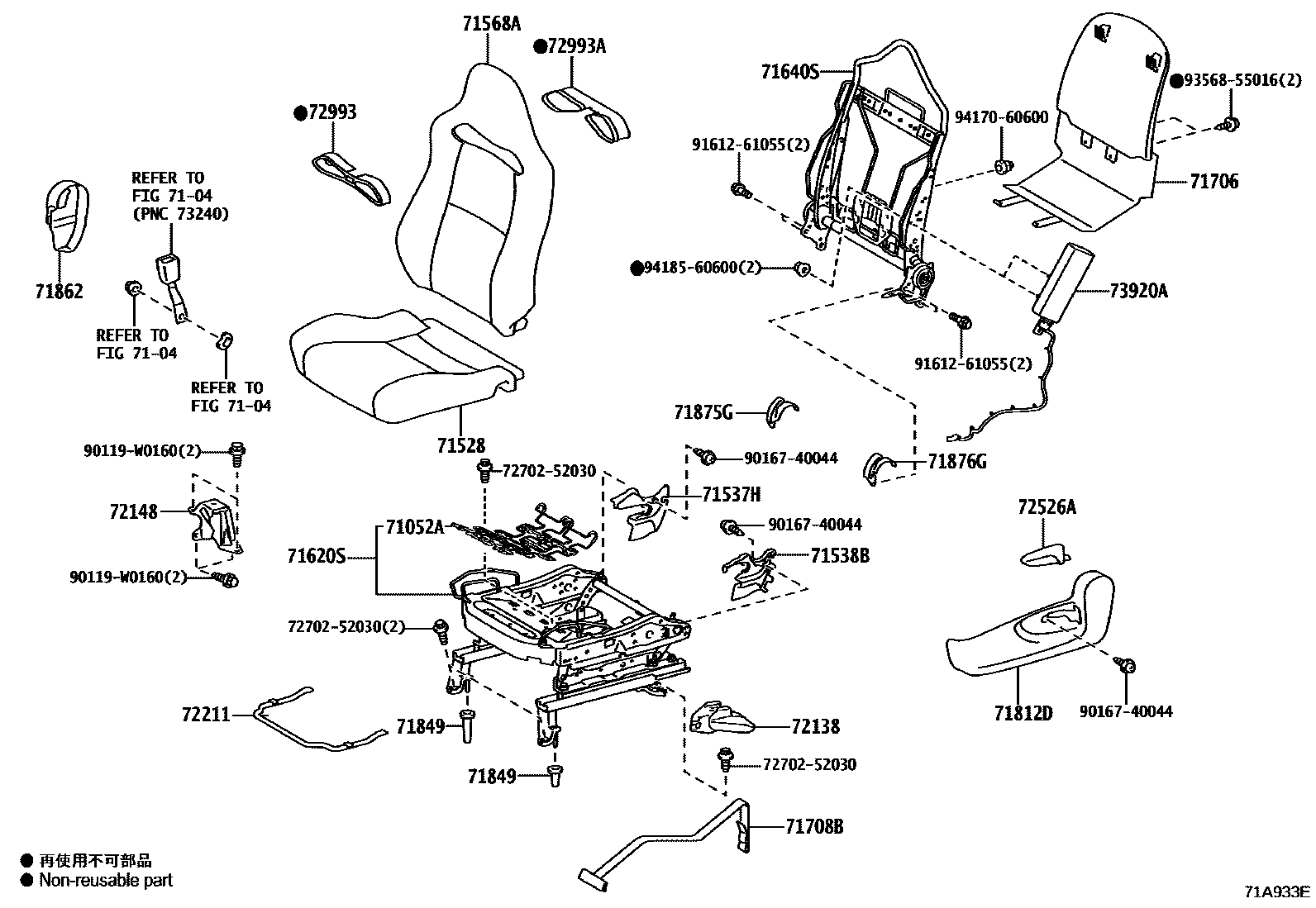

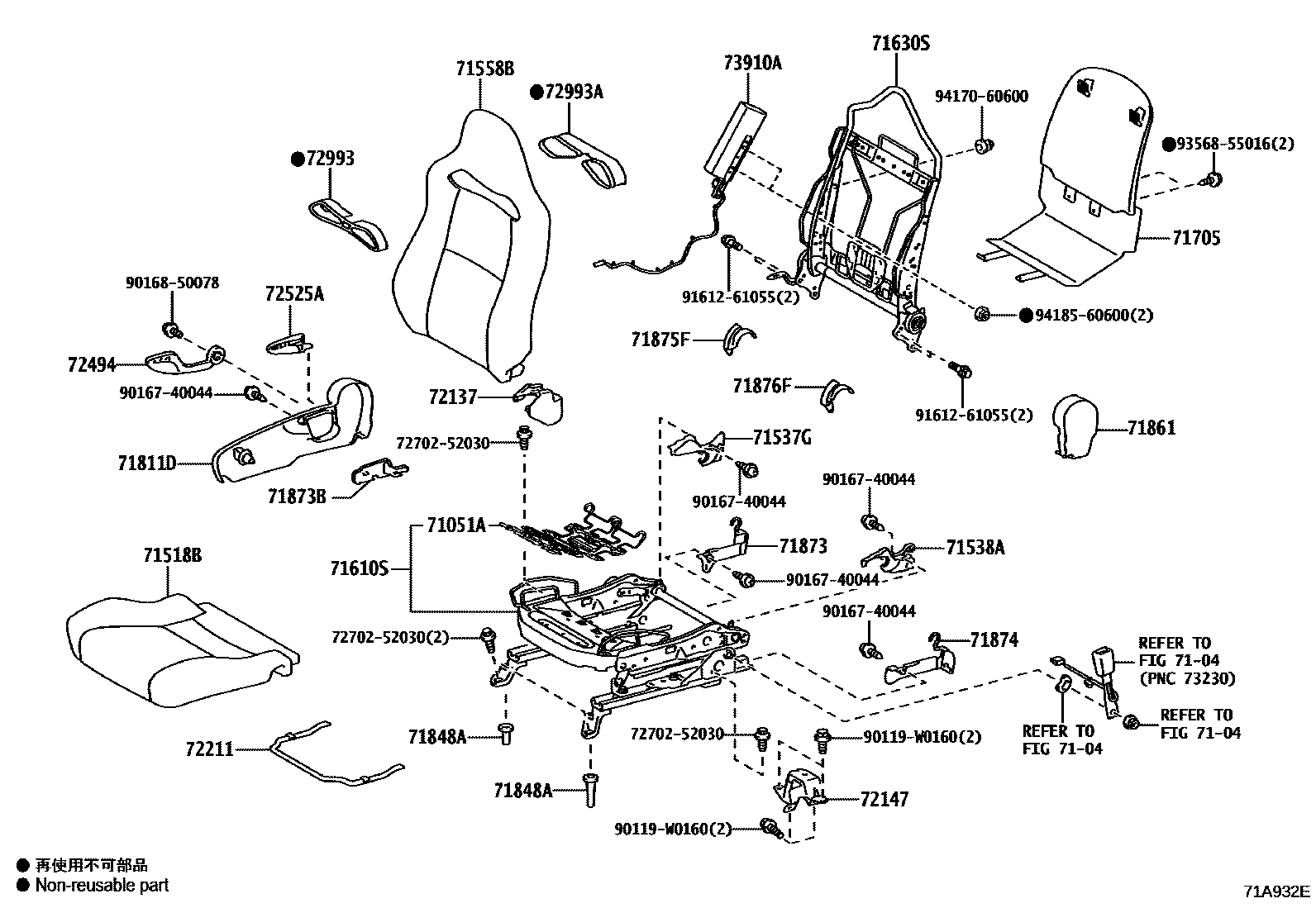

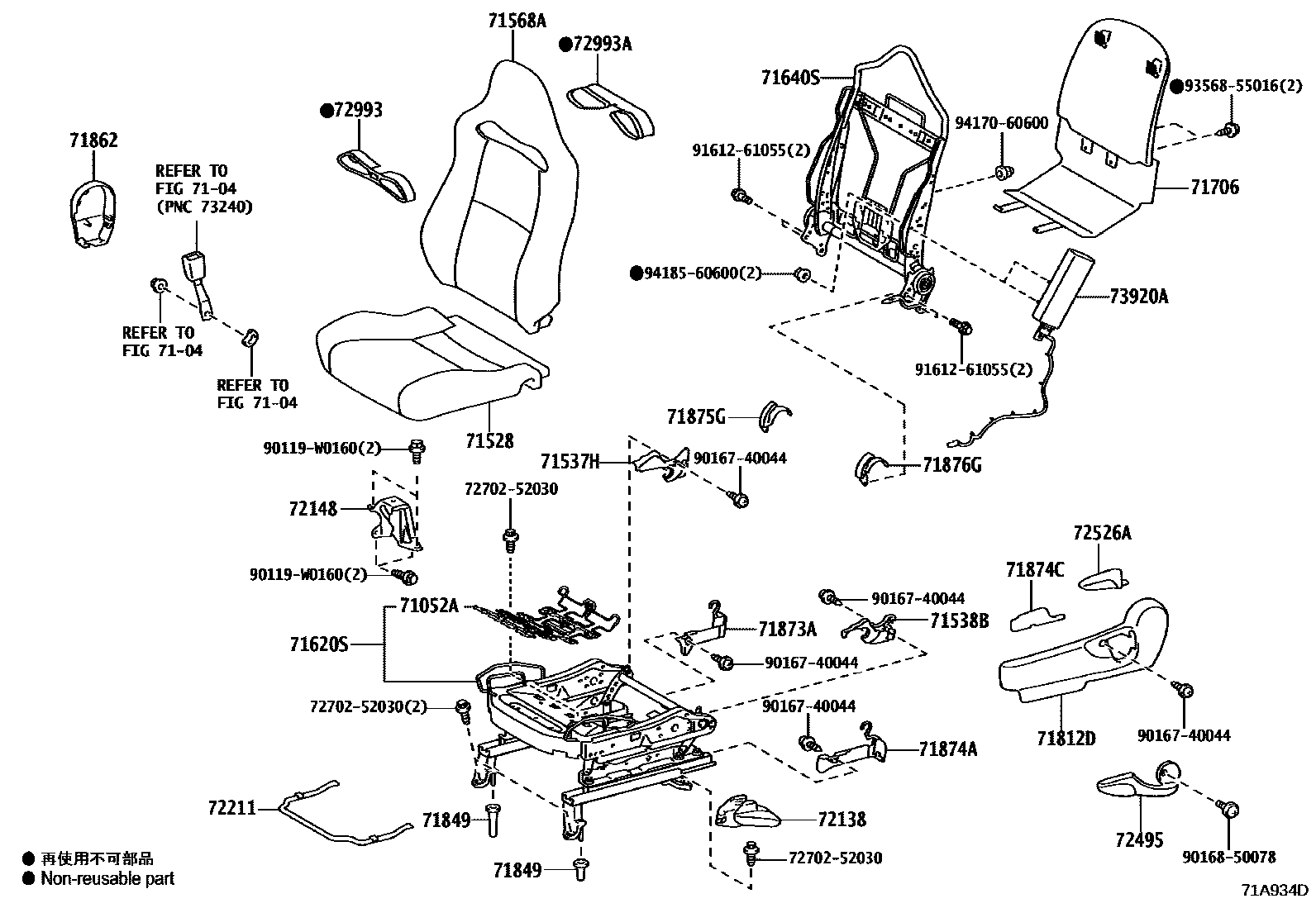

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-21040 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-21040 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-52280 · 71610-52290 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-52300 · 71620-52310 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-52810 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-52410 |
| 71848A | Right seat adjuster cover | 71848-52040 · 71848-52050 |
| 71849 | left seat adjuster cover | 71848-52040 · 71848-52050 |
| 71873A | Front seat cushion lower guard | 71873-47040 |
| 71874 | Front left seat cushion lower guard | 71874-47040 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D060 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D070 |
| 72211 | Seat slide adjustment handle | 72211-52190 |
| 73910A | Front right seat airbag assembly | 73910-52161 |
| 73920A | Front left seat airbag assembly | 73920-52161 |
