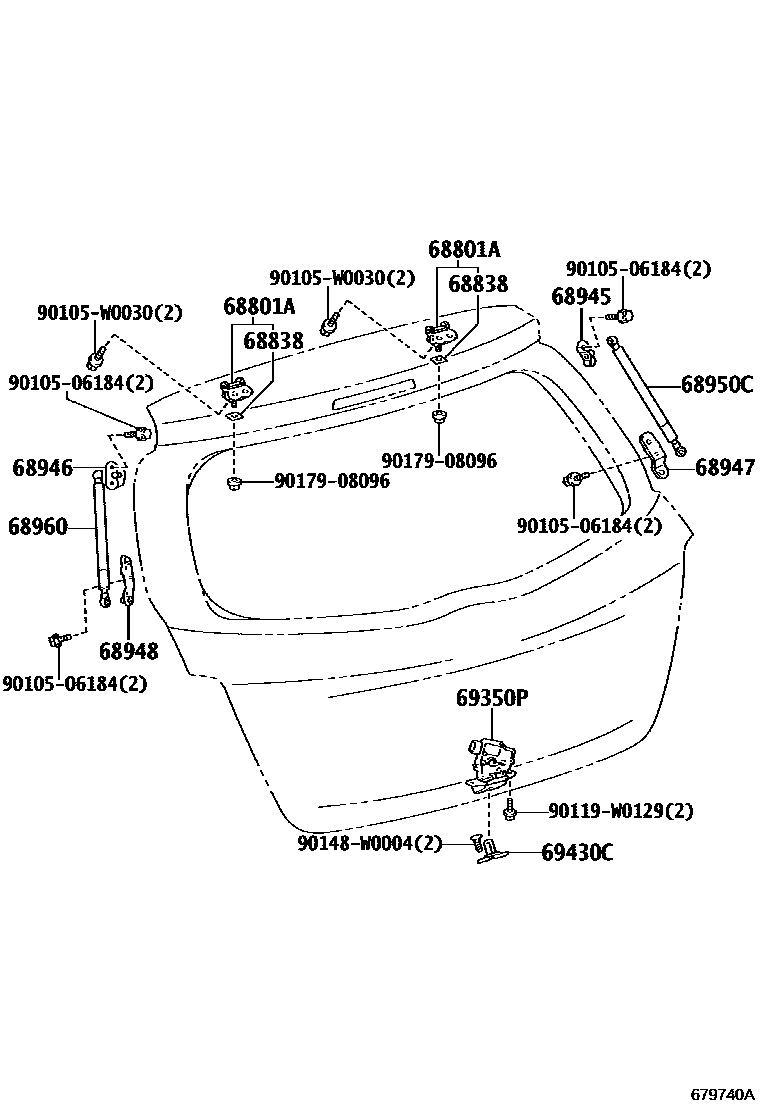

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-0D120 |
| 68838 | Back door hinge No. 1 gasket | 68838-74020 · 68838-74030 · 68838-74040 |
| 68945 | Back door right damping stay upper bracket | 68945-0D140 |
| 68946 | Rear door left damping strut upper bracket | 68946-0D050 |
| 68947 | Back door right damping strut lower bracket | 68947-0D110 |
| 68948 | Rear door left damping strut lower bracket | 68948-0D010 |
| 68950C | Back door right support rod assembly | 68950-0D200 |
| 68960 | Back door left support rod assembly | 68960-0D160 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-02090 |
| 69430C | Back door lock assembly | 69430-02030 |
