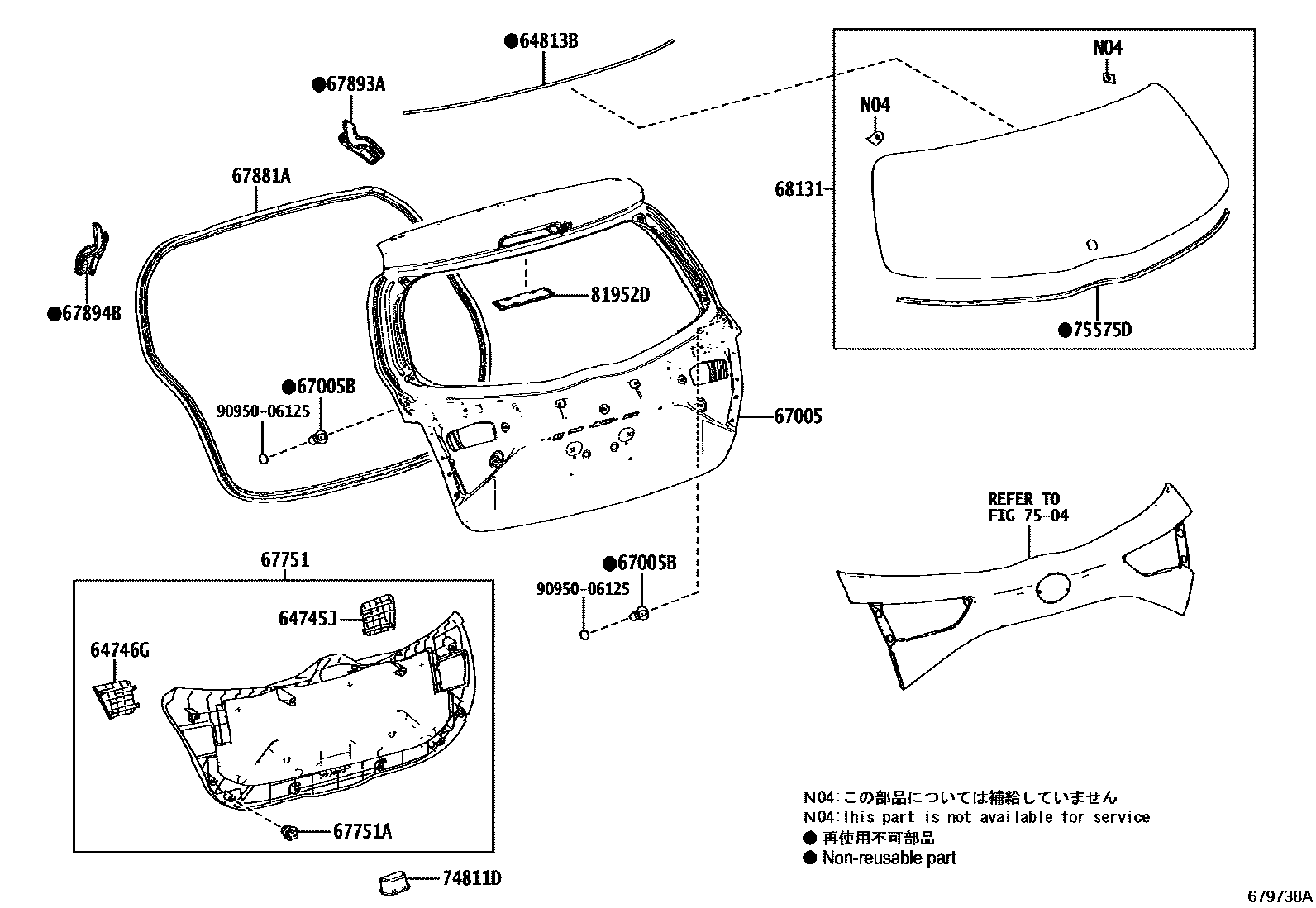

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64813B | Back window glass adhesive seal | 56117-50140 |
| 67005 | Rear door panel sub-assembly | 67005-0D760 |
| 67005B | Cushion pad (for back door panel) | 90541-09146 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67881A | Back door seal | 67881-0D220 |
| 67893A | Back door panel No. 1 protective piece | 67893-0D030 |
| 67894B | Back door panel No. 2 protective piece | 67894-0D030 |
| 68131 | back door glass | 68105-0D410 |
| 75575D | Protective strip under rear window | 75575-0D051 |
| 81952D | rear light cover | 81952-0D050 |
