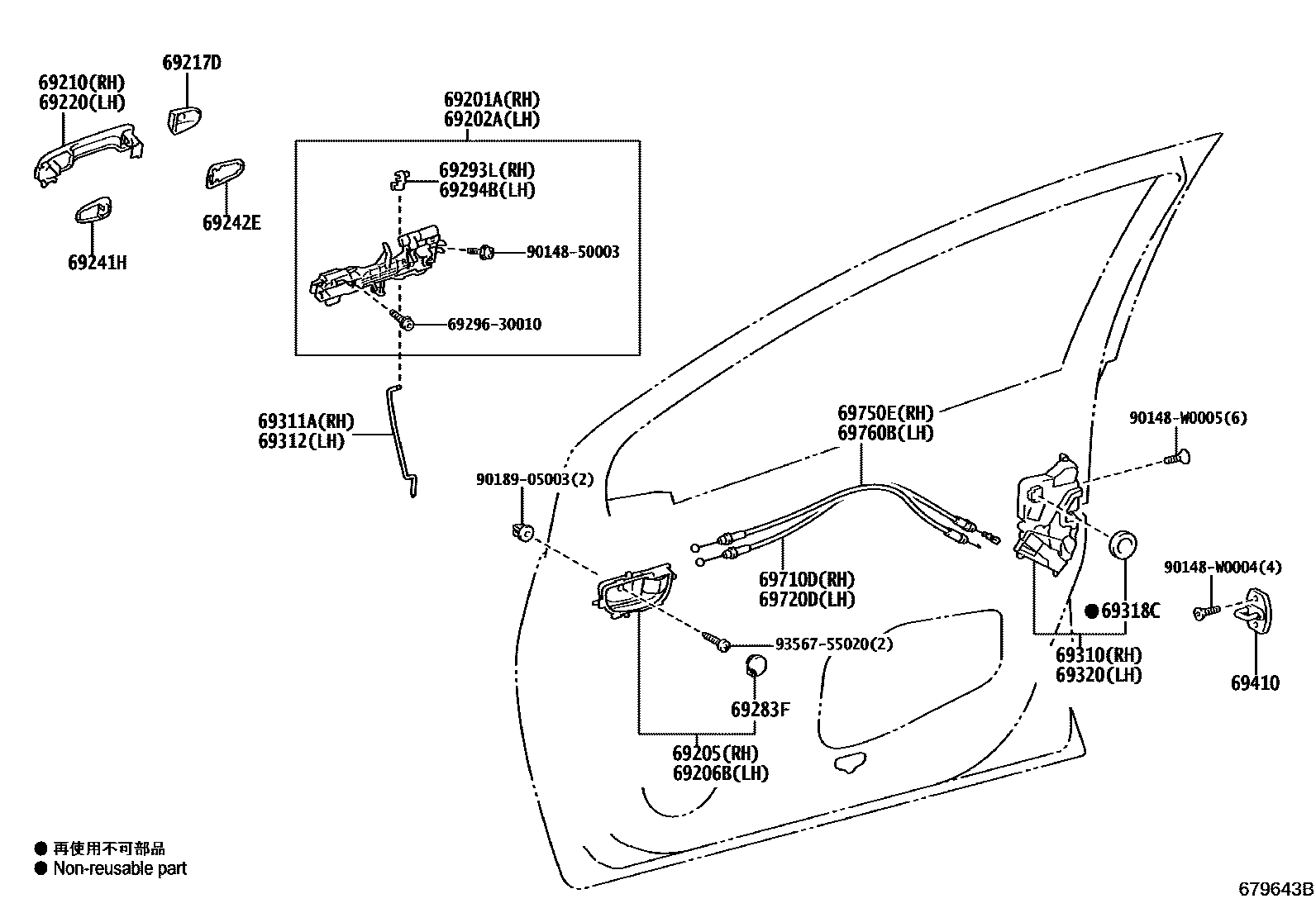

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02180 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02160 |
| 69217D | Front door outer handle cover | 69217-02940 · 69217-02941 |
| 69241H | Front door exterior handle pad | 69241-0D010 |
| 69242E | Front door rear outer handle pad | 69242-0D010 |
| 69293L | Right front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69310 | Right front door lock assembly | 69030-0D540 · 69030-0D560 |
| 69311A | Right front door lock opening lever | 69311-0D130 |
| 69312 | Left front door lock opening lever | 69312-0D130 |
| 69318C | door lock harness seal | 69318-47010 |
| 69320 | Left front door lock assembly | 69040-0D520 · 69040-0D530 |
| 69410 | Front door lock plate assembly | 69410-0D030 |
| 69710D | CABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE) | 69710-0D181 |
| 69720D | CABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE) | 69710-0D181 |
| 69750E | CABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR) | 69750-0D121 |
| 69760B | CABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR) | 69750-0D121 |
