Toyota YARIS 仪表板和手套箱 — Figure 5501

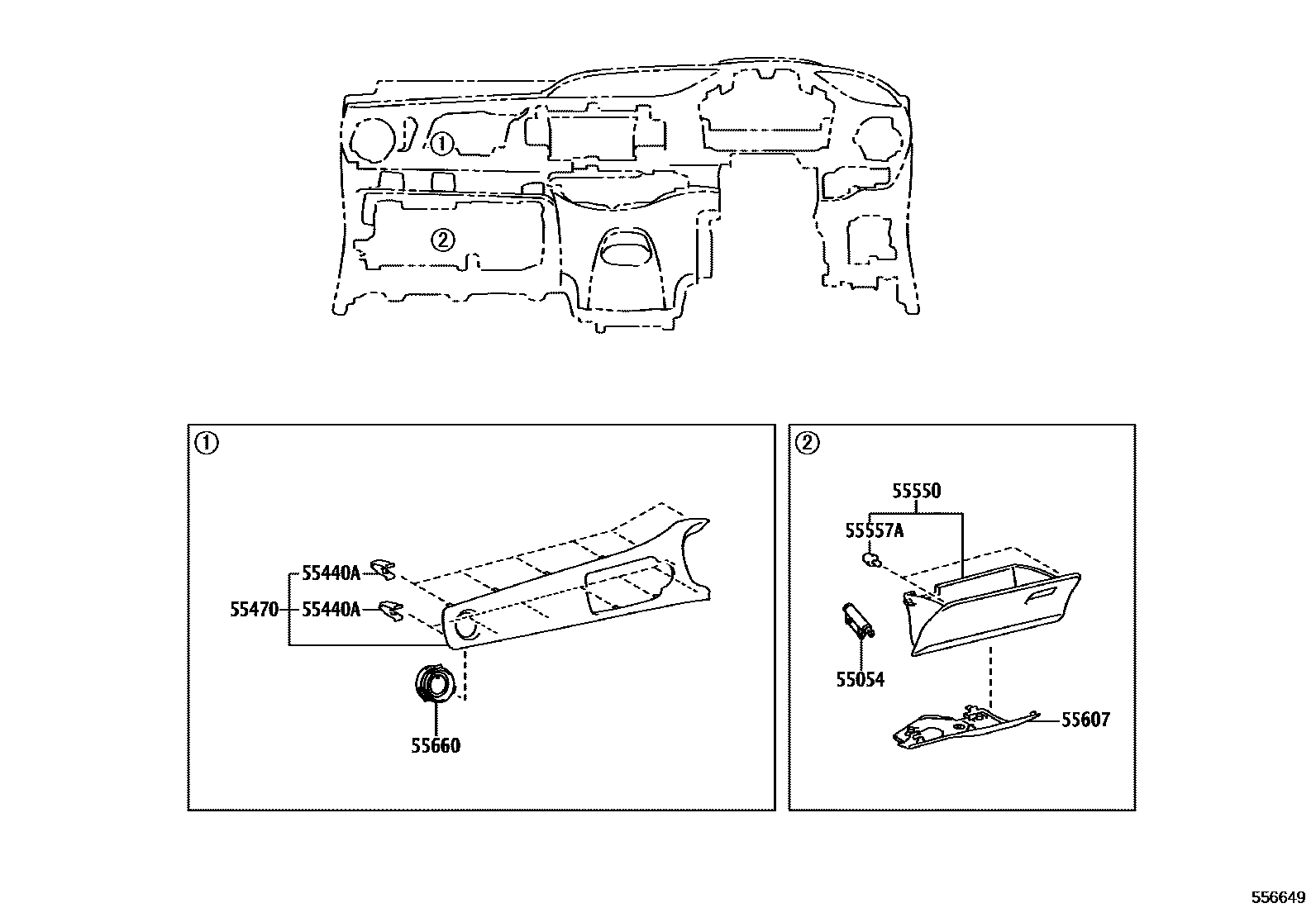

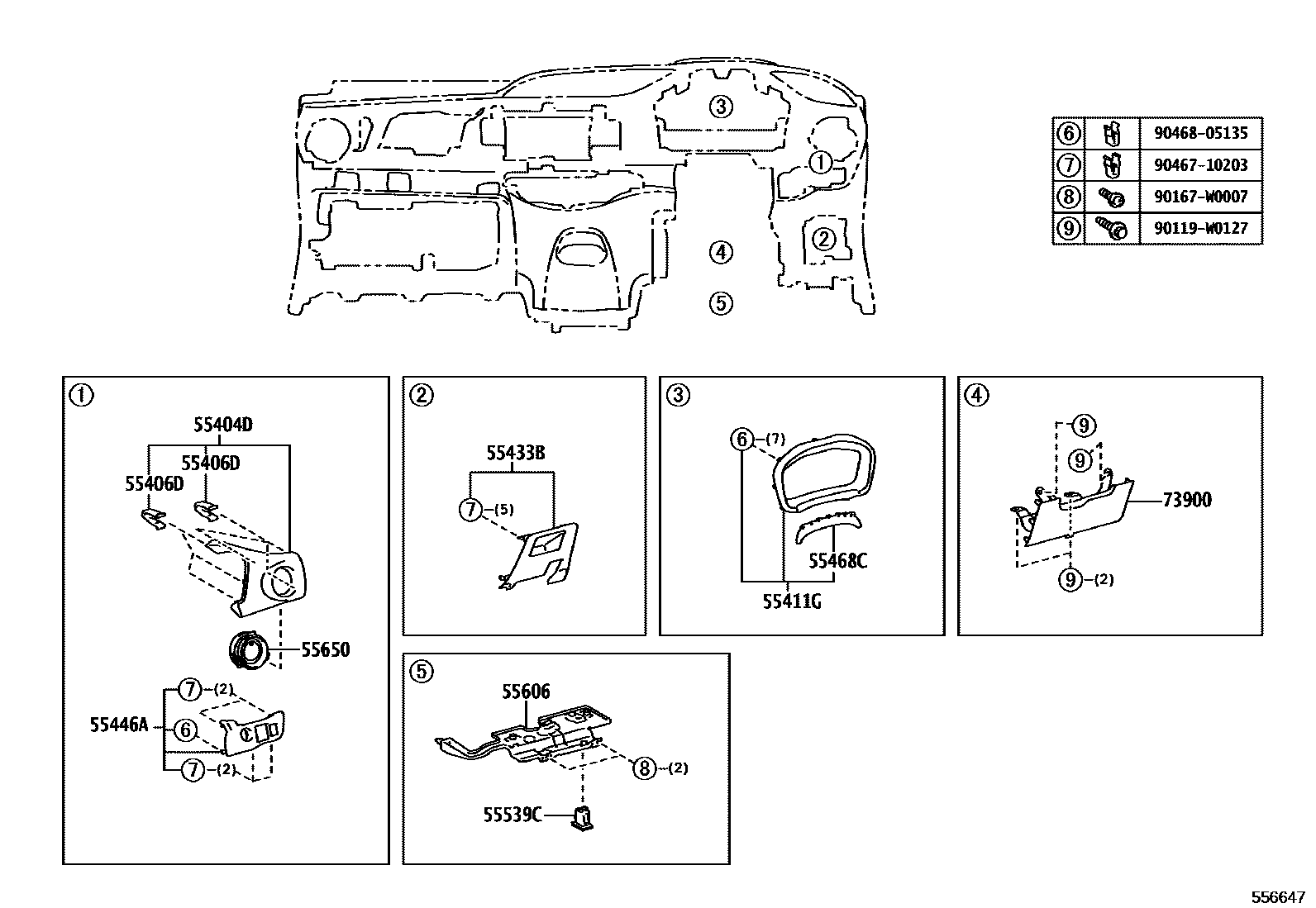

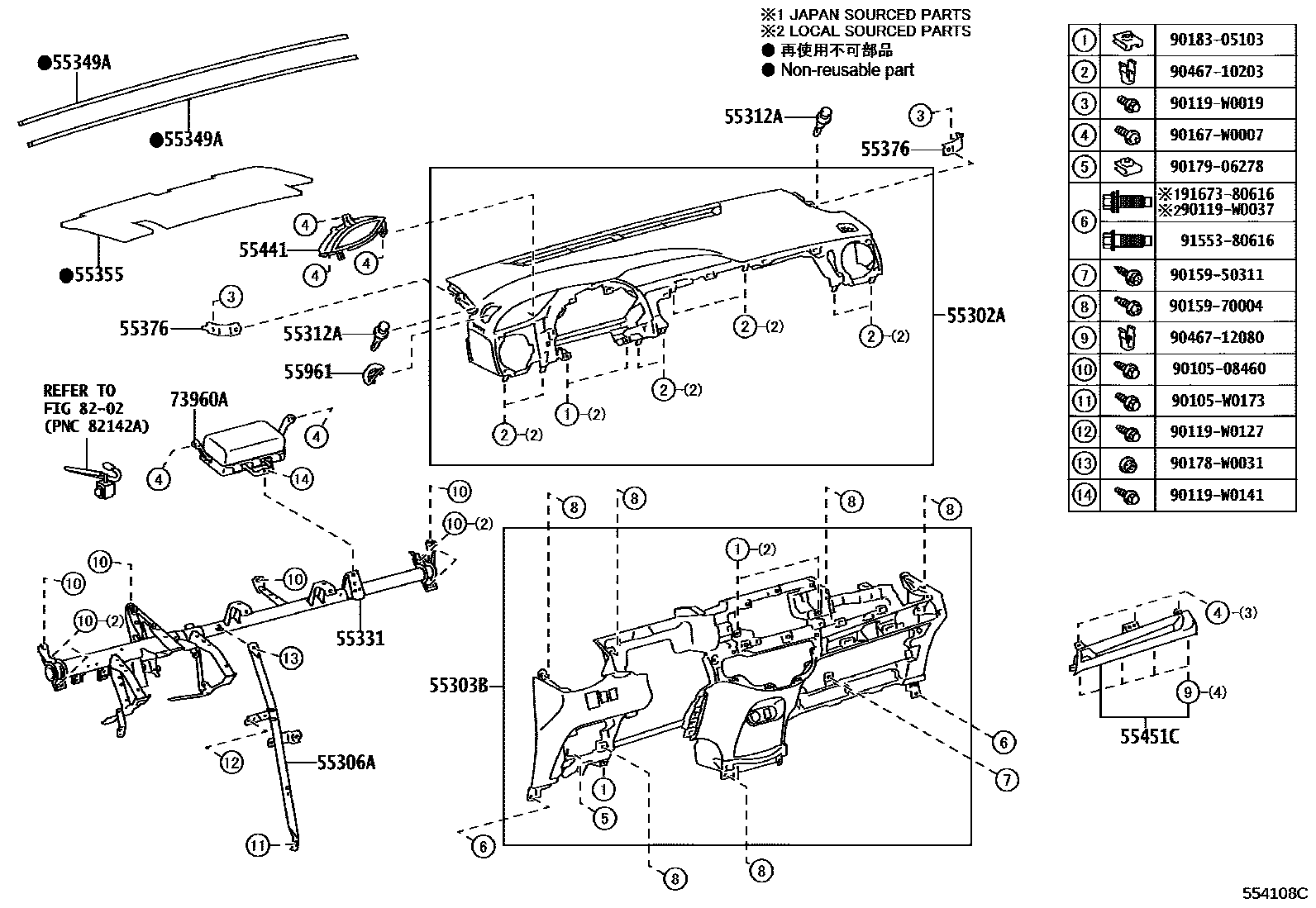

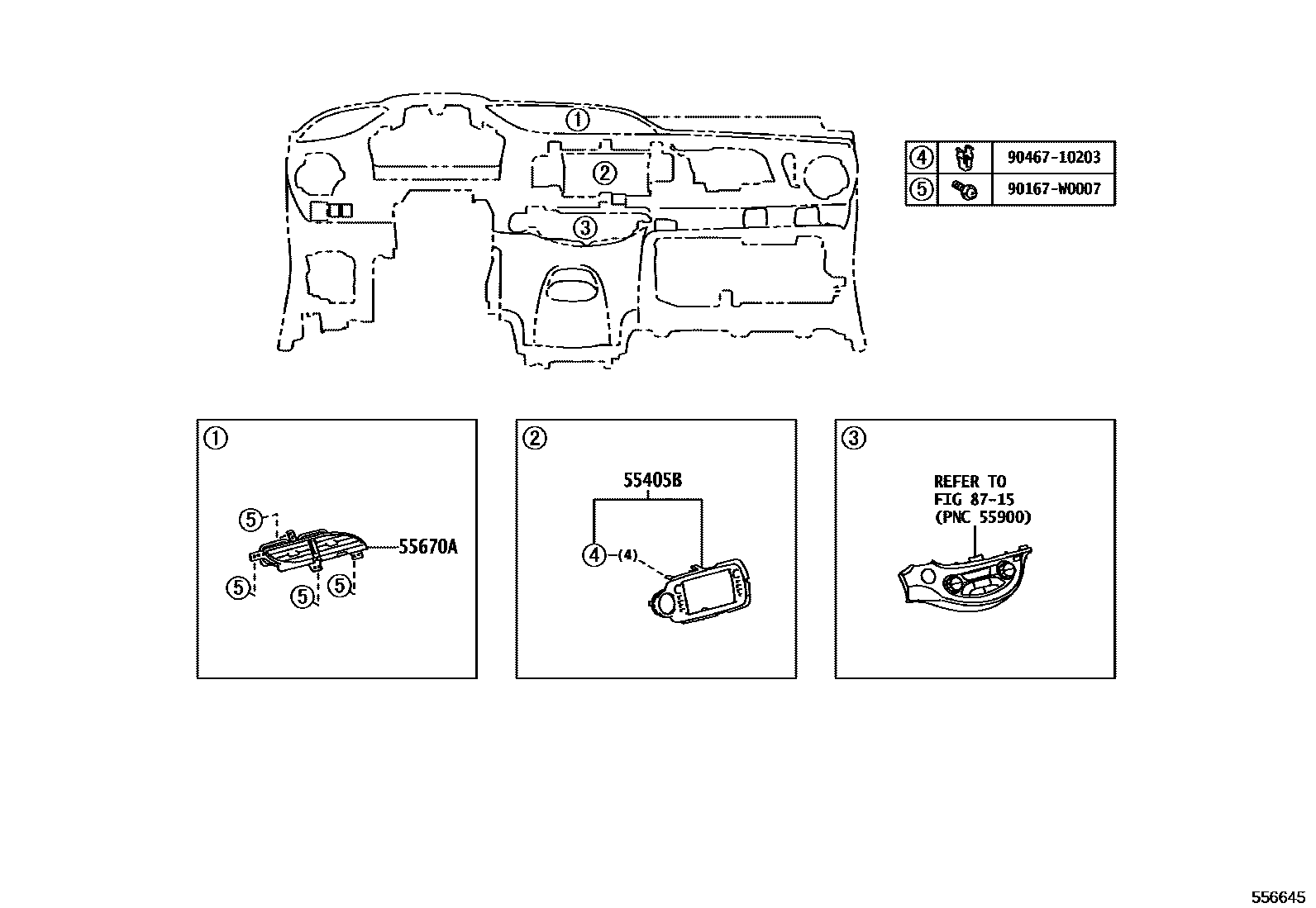

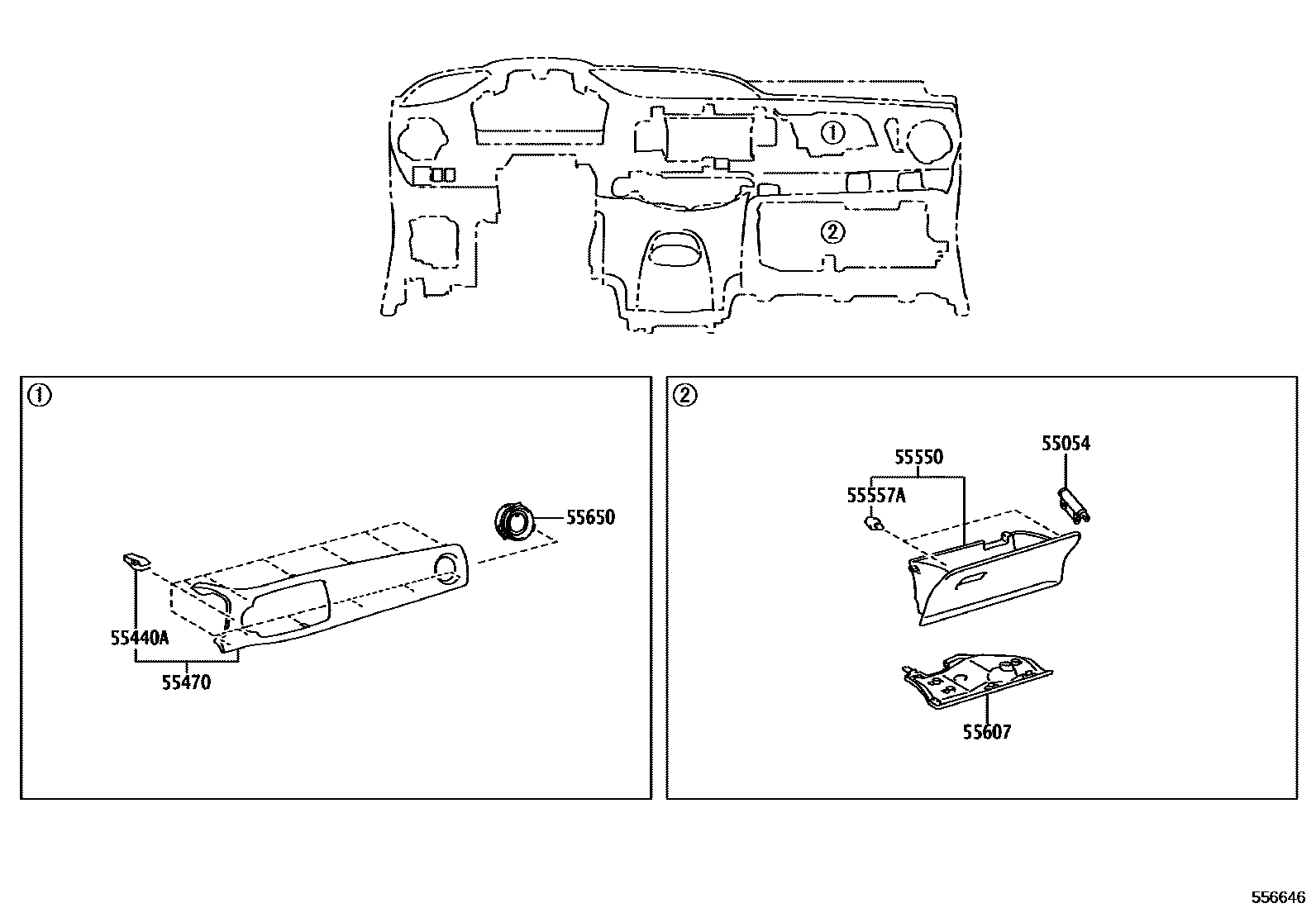

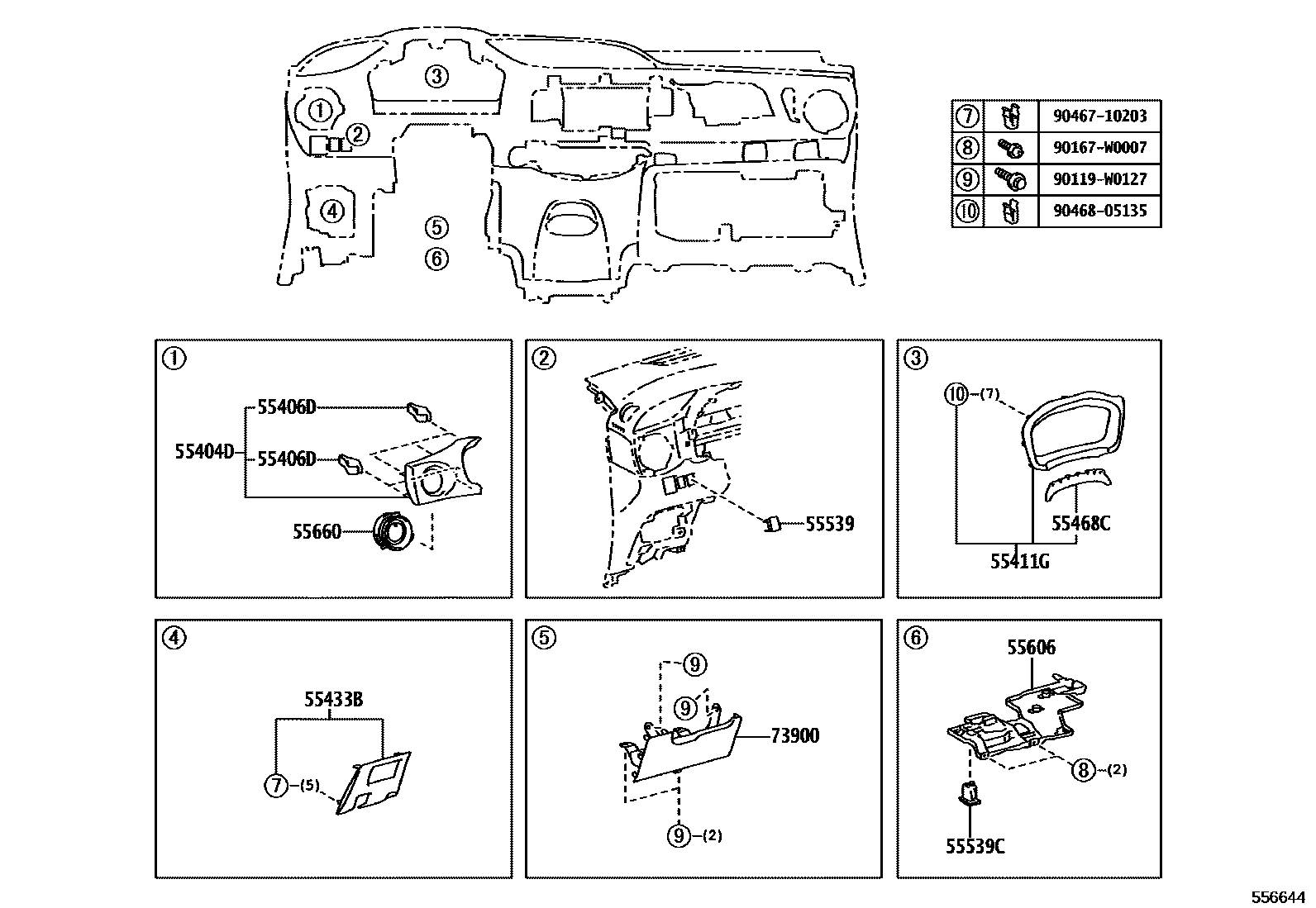

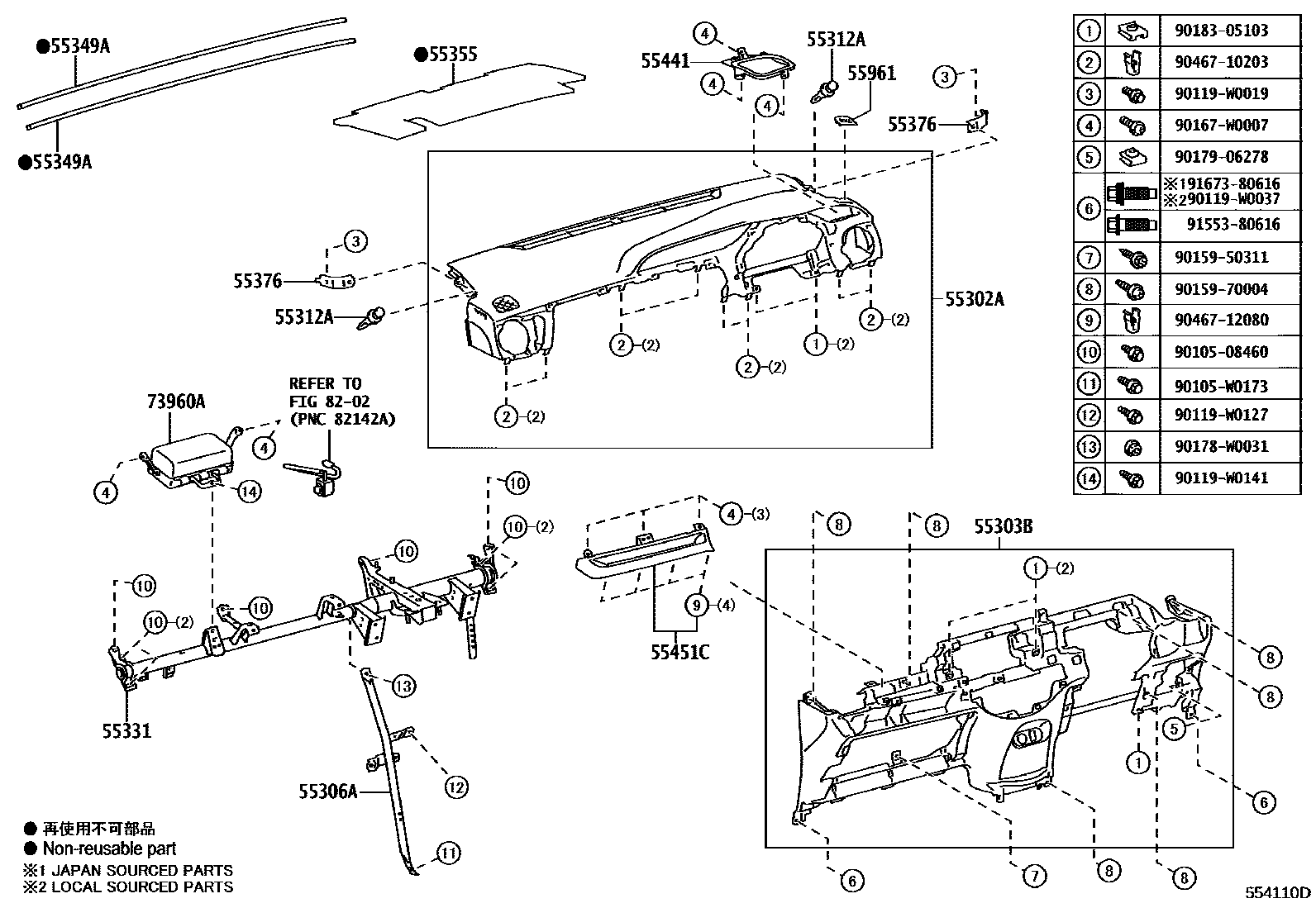

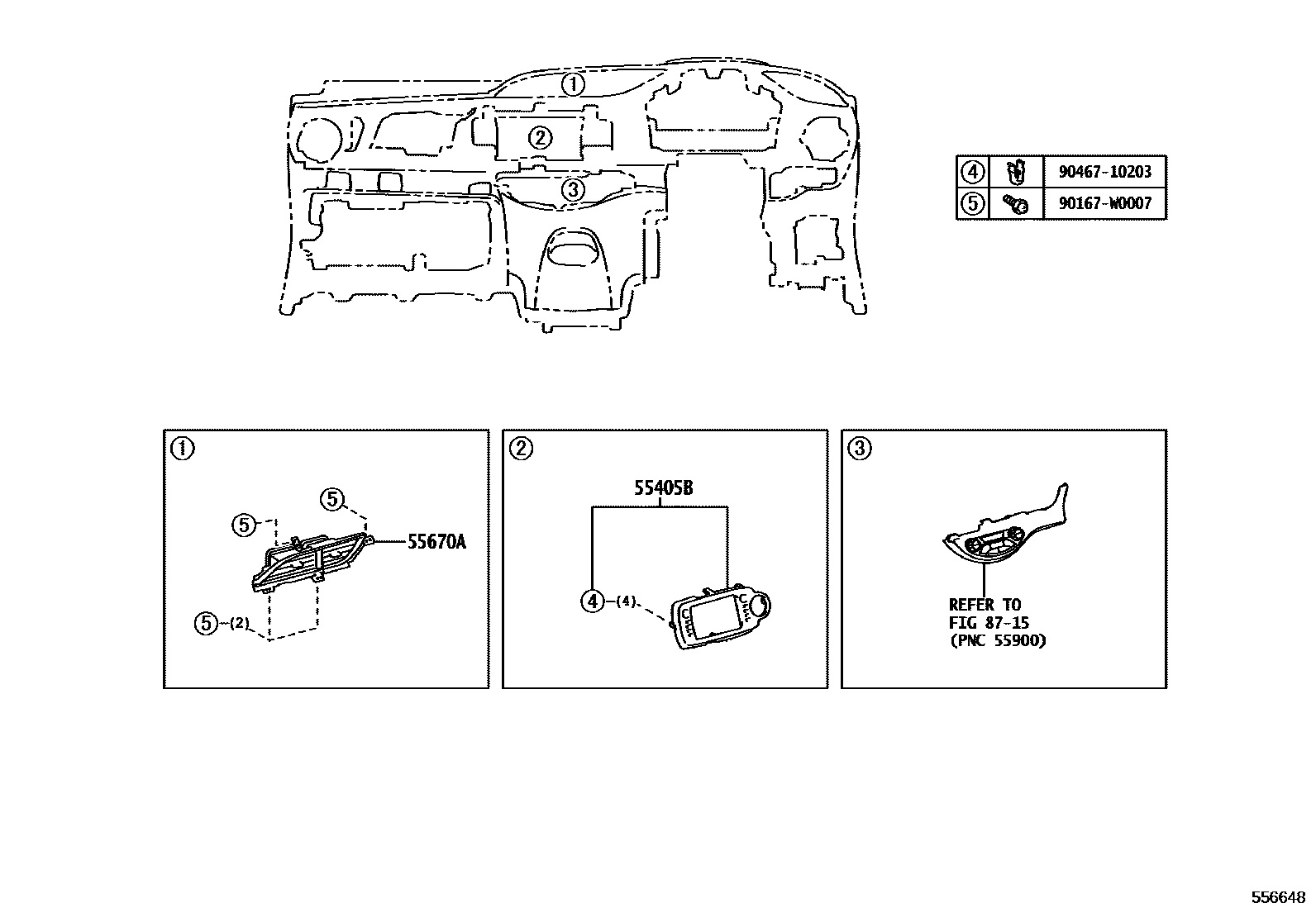

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D290 · 55306-0D300 |
| 55312A | Dashboard clip | 52161-02030 |
| 55331 | Dashboard reinforcement | 55330-0D551 · 55330-0D581 |
| 55349A | Dashboard cushion | 55355-0D031 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D470 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-0D030 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D170 · 55468-0D180 |
| 55539C | Spare switch hole cover | 55539-48020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D050 · 55606-0D060 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D050 · 55607-0D060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D111 · 73960-0D112 |
