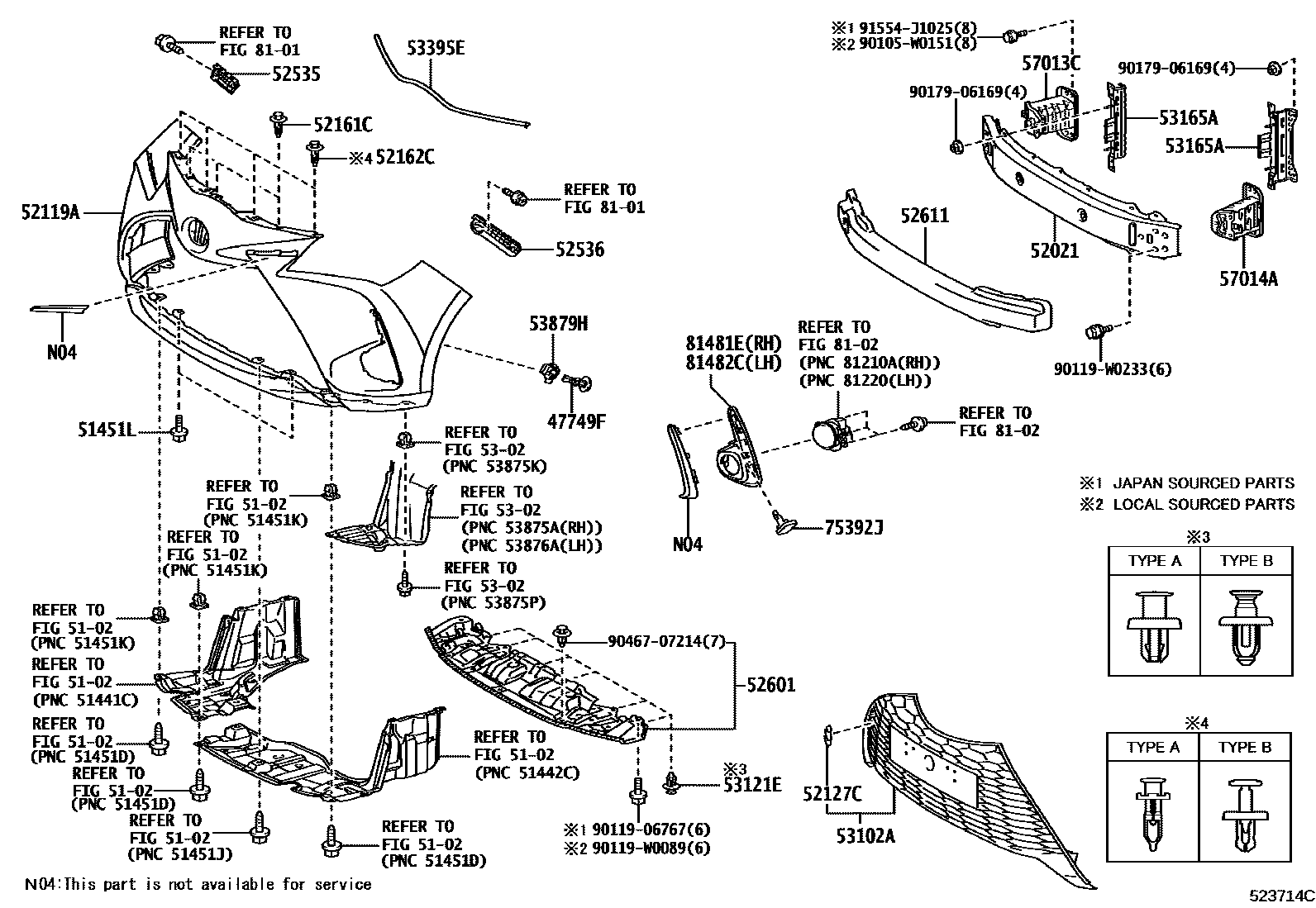

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-50090 |
| 51451L | BOULON, NO.1 | 90119-W0089 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D070 |
| 52119A | front bumper cover | 52119-0U931 |
| 52127C | Front bumper hole cover | 52127-0DB20 |
| 52161C | front bumper insert | 52161-02030 |
| 52162C | front bumper insert | 52161-02030 · 90467-09242 |
| 52535 | Front bumper right side fixing bracket | 52535-0D090 |
| 52536 | Front bumper left fixed bracket | 52536-0D090 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-0D040 |
| 52611 | front bumper energy absorber | 52611-0D020 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-0D140 |
| 53121E | Clamp No. 1 (for front bumper) | 51454-48010 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-0D060 |
| 53395E | Engine cover to front end plate seal | 53395-0D030 |
| 53879H | Front fender lining fixing parts | 53879-50020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0D041 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0D030 |
| 75392J | External protective strip fixings | 75392-35200 |
| 81481E | Right fog light cover | 81481-0D360 |
| 81482C | Left fog light cover | 81482-0D340 |
