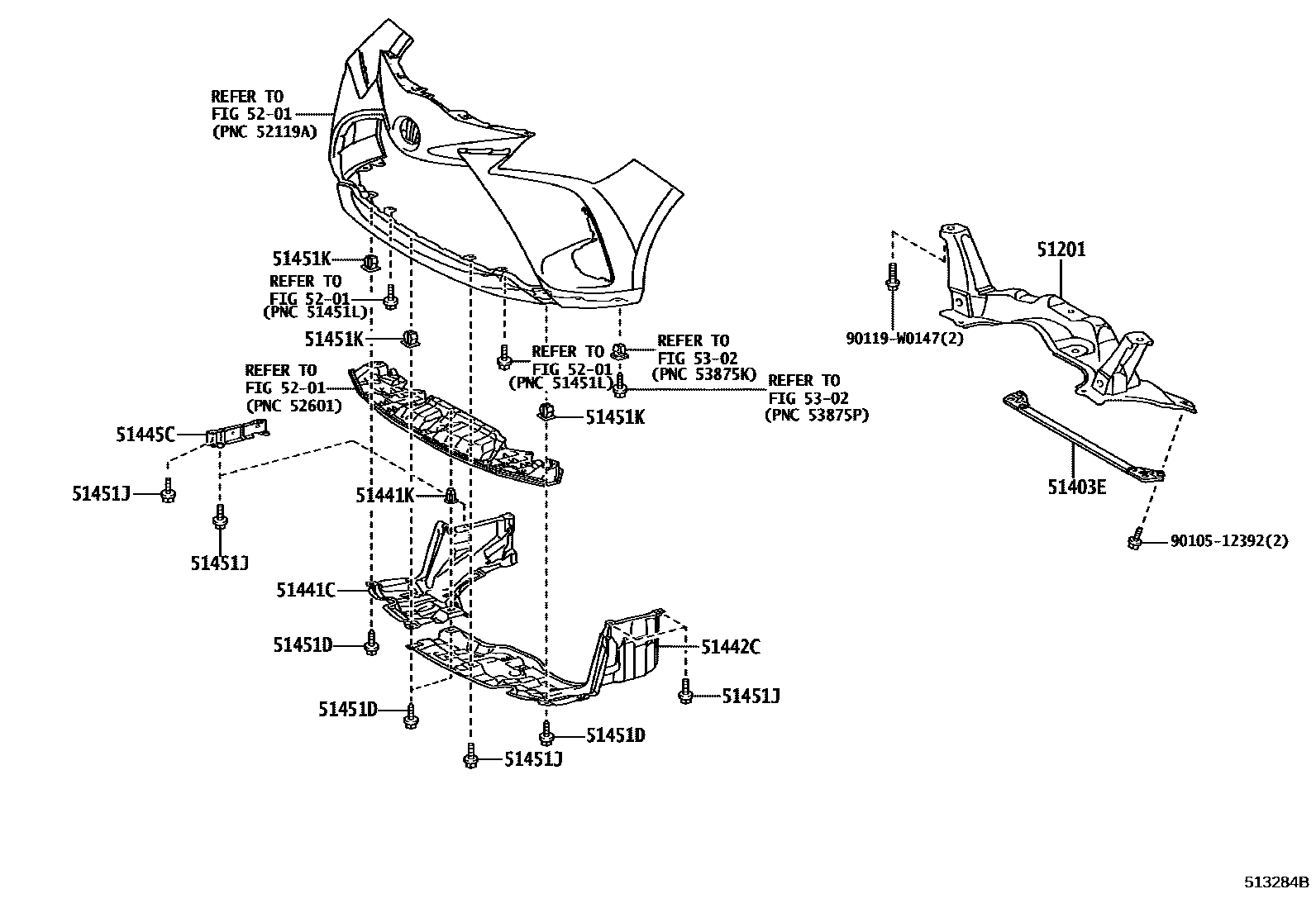

Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D106 |
| 51403E | Front suspension cross member bracket sub-assembly | 51403-WY050 |
| 51441C | Engine right bottom cover | 51441-52350 |
| 51441K | OEILLET(POUR PROTECTION SOUS MOTEUR) | 90189-06076 |
| 51442C | Engine left bottom cover | 51442-0D141 |
| 51445C | Engine rear cover bracket | 51445-52030 |
| 51451D | VIS, NO.1 | 90159-W0007 |
| 51451J | BOULON, NO.1 | 90119-W0089 |
| 51451K | RONDELLE, VIS, NO.1 | 90189-06237 |
