Toyota YARIS 制动配管和卡箍 — Figure 4708

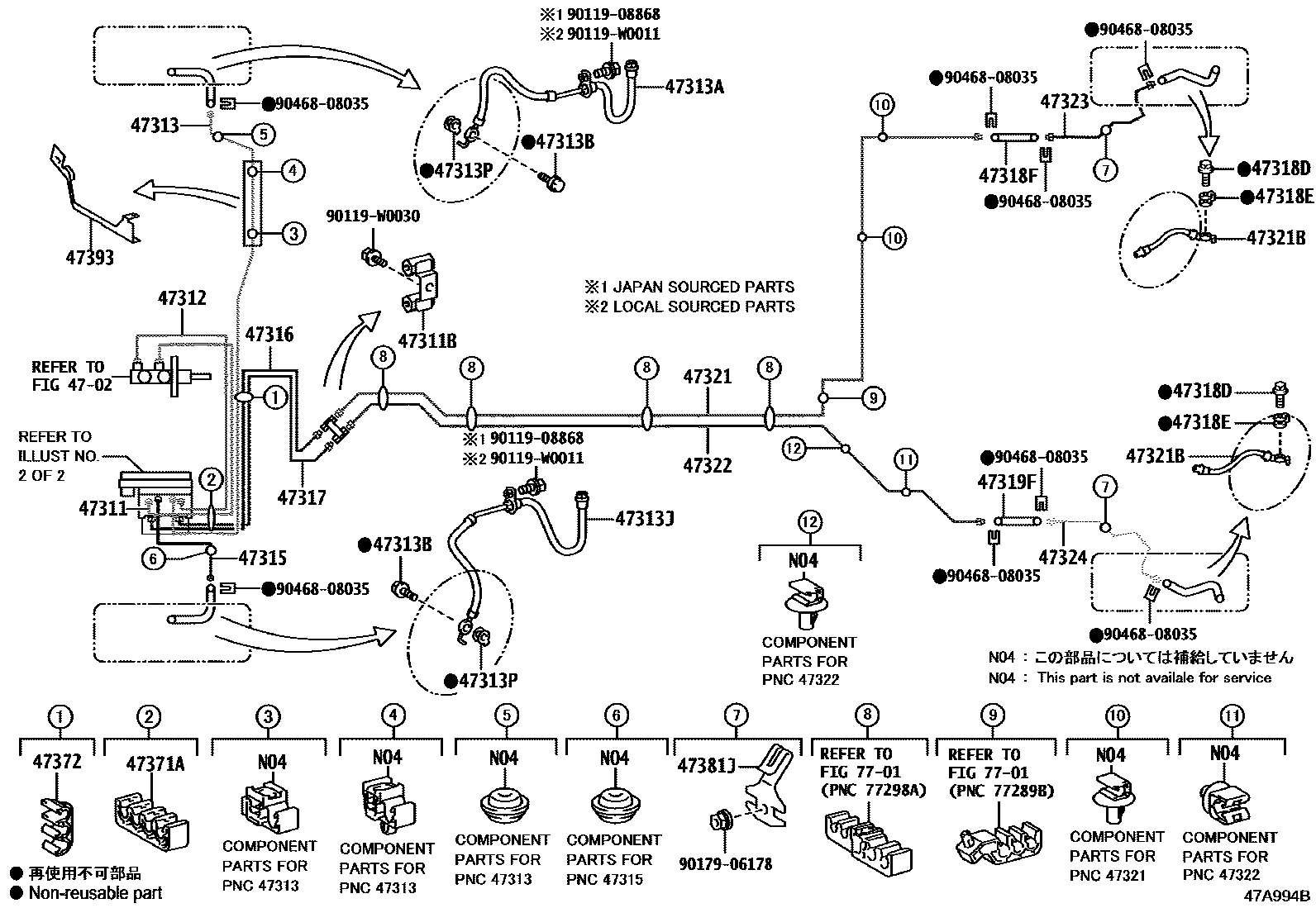

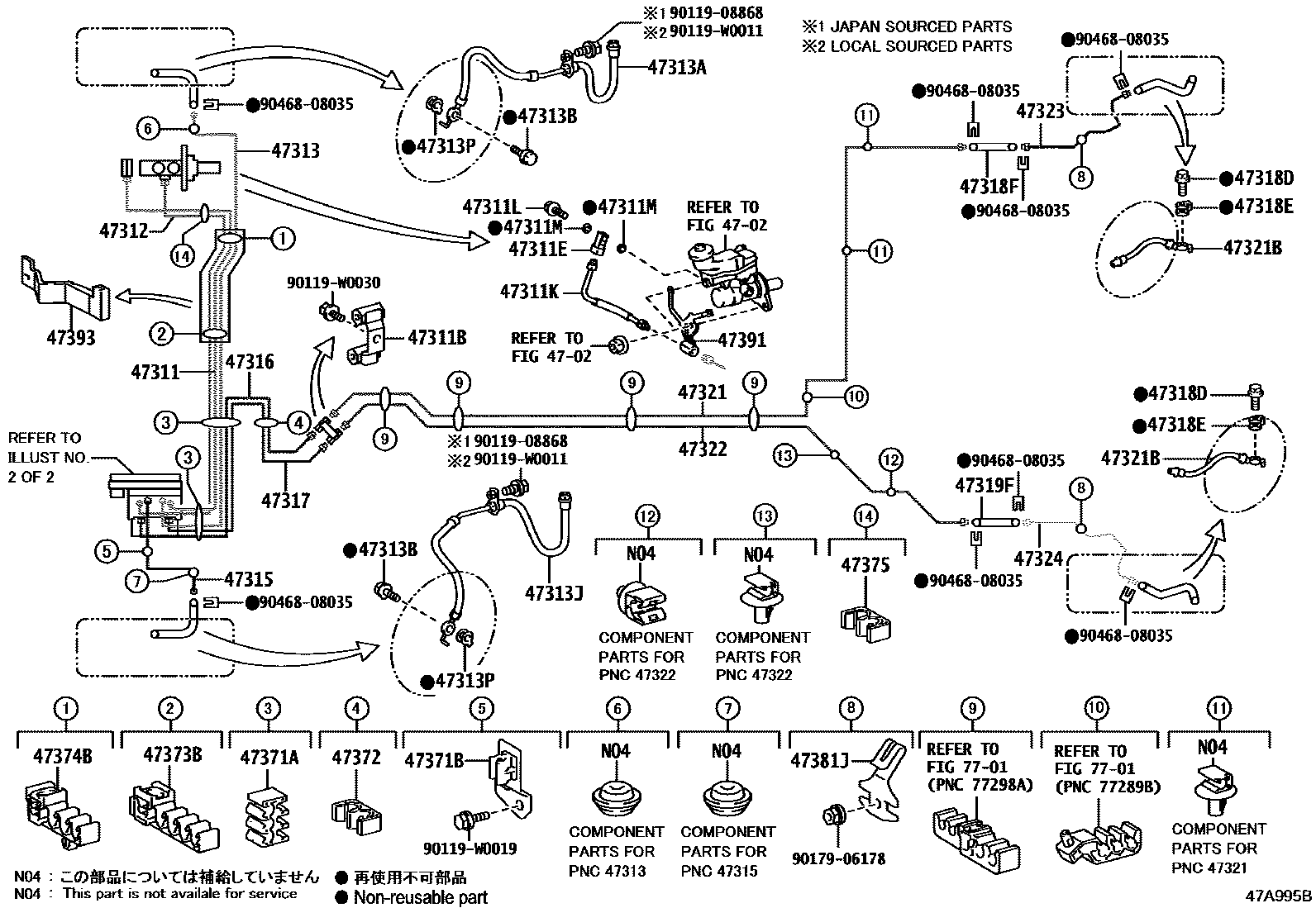

Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

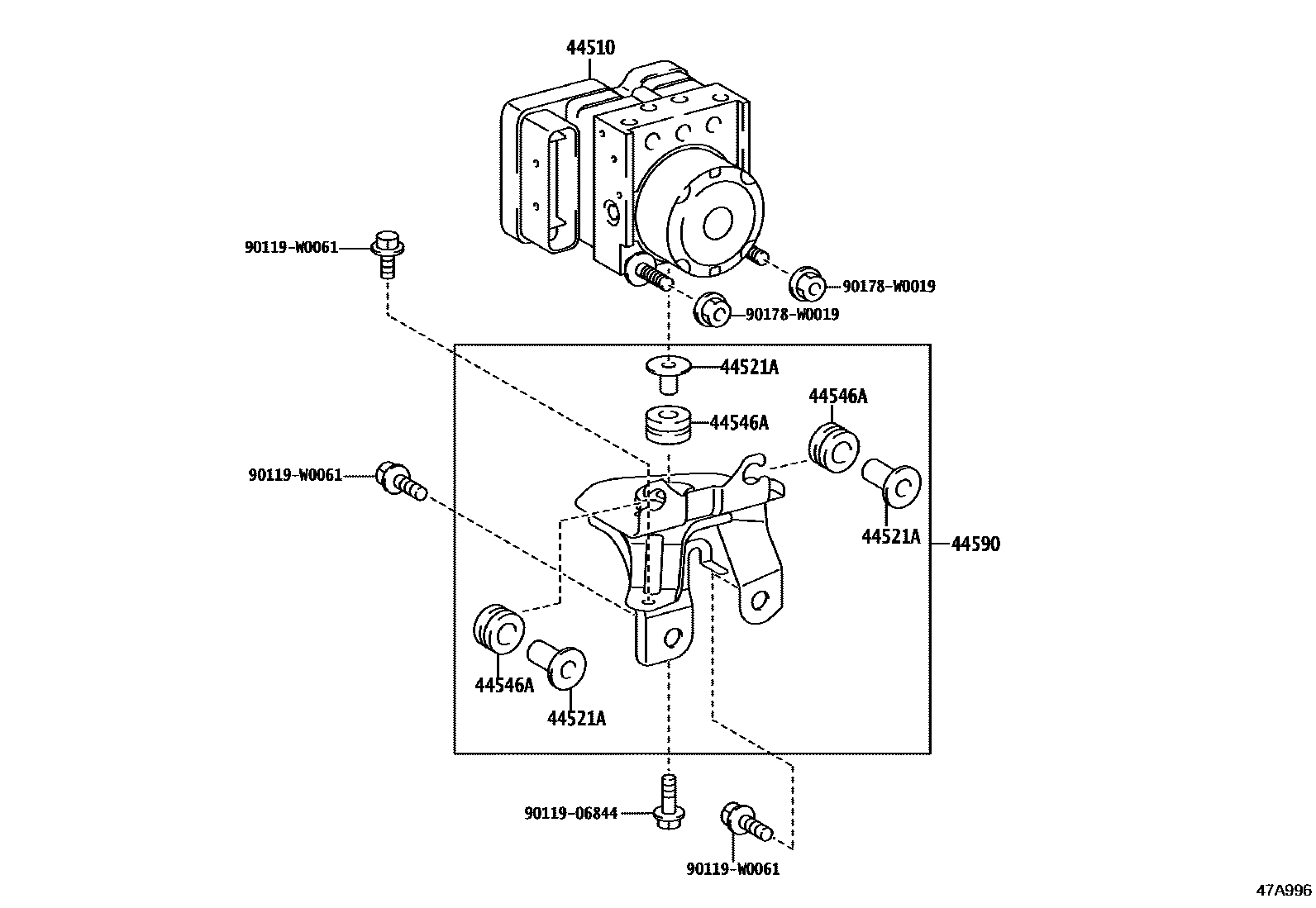

| 44510 | brake actuator assembly | 44050-0DA80 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-0D020 |
| 44546A | Brake actuator bolt cushion | 44546-52020 |
| 44590 | Brake actuator bracket assembly | 44590-0D130 · 44590-0D140 |
| 47311 | No. 1 front brake pipe | 47311-0D290 · 47311-0DB60 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311E | Connector No. 1 (for front brake pipe) | 90015-AM008 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-12C40 |
| 47311L | Joint bolts | 90015-AA104 |
| 47311M | padding | 90015-AP002 |
| 47312 | No. 2 front brake pipe | 47312-0D400 · 47312-0DA90 |
| 47313 | No. 3 front brake pipe | 47313-0D441 · 47313-0D650 |
| 47313A | No. 1 front flexible hose | 90947-W2050 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2051 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-0D371 · 47315-0D421 |
| 47316 | No. 6 front brake pipe | 47316-0D281 · 47316-0D331 |
| 47317 | No. 7 front brake pipe | 47317-0D281 · 47317-0D331 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2036 |
| 47319F | Left rear flexible hose | 90947-W2037 |
| 47321 | No. 1 rear brake pipe | 47321-0D301 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-W2038 |
| 47322 | No. 2 rear brake pipe | 47322-0D301 |
| 47323 | No. 3 rear brake pipe | 47323-0D201 |
| 47324 | No. 4 rear brake pipe | 47324-0D201 |
| 47371A | No. 1 brake pipe clamp | 90464-00956 · 90949-W1002 |
| 47371B | No. 6 brake pipe clamp | 47371-0D021 |
| 47372 | No. 2 brake pipe clamp | 90949-01D91 · 90949-01D92 |
| 47373B | No. 3 brake pipe clamp | 90949-01D97 |
| 47374B | No. 4 brake pipe clamp | 90949-01D94 |
| 47375 | No. 5 brake pipe clamp | 90464-00899 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-52020 |
| 47391 | Brake pipe joint | 47391-12070 |
| 47393 | brake pipe heat shield | 47393-0D010 · 47393-0D020 |
