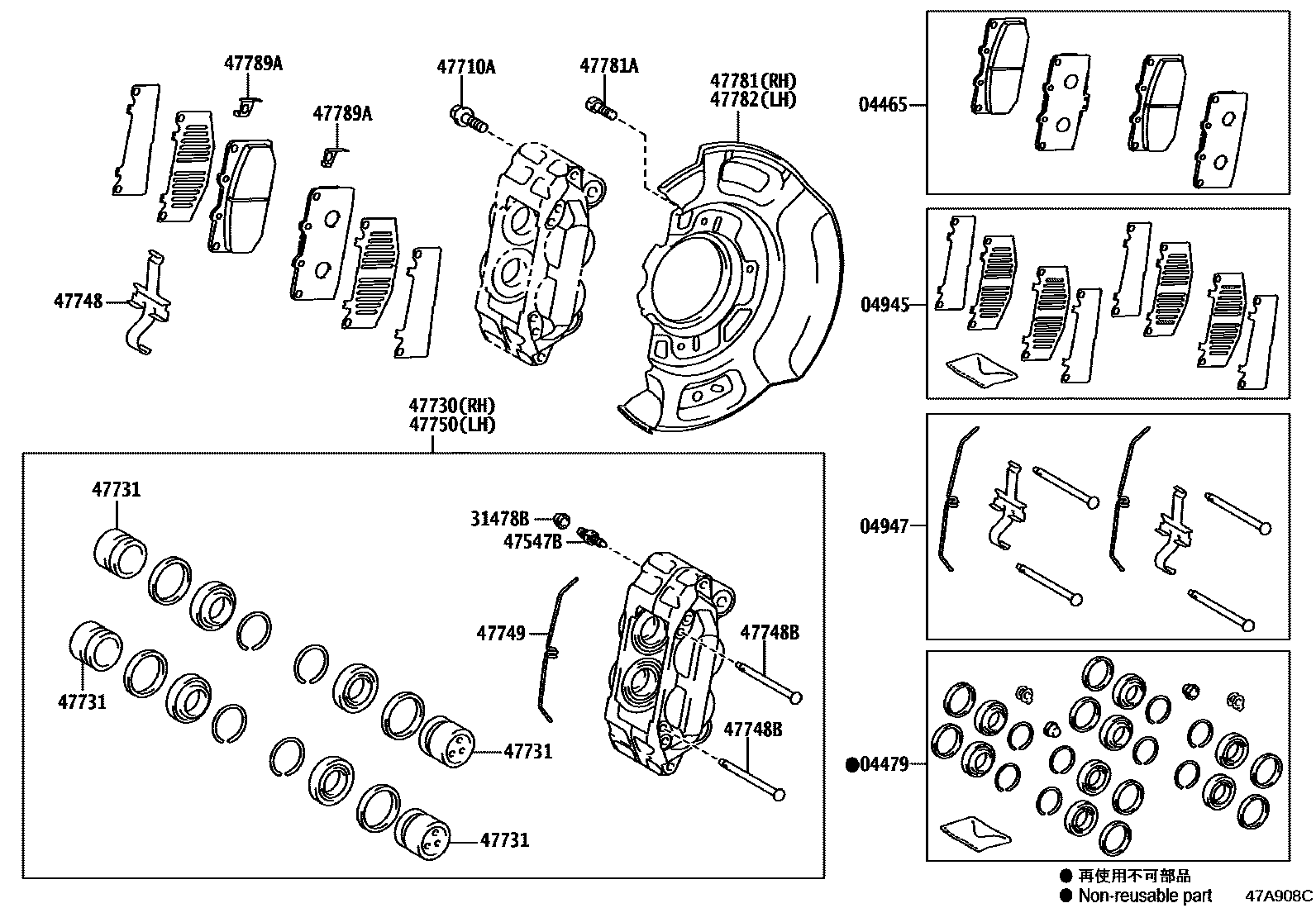

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-52360 |
| 04479 | Front disc brake cylinder assembly | 04478-52220 |
| 04945 | Front silencer gasket assembly | 04945-52200 |
| 04947 | Front disc brake mounting kit | 04947-52070 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-12040 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-W0121 |
| 47730 | Right front disc brake cylinder assembly | 47730-52340 |
| 47731 | Front disc brake piston | 47731-52310 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-60030 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 47735-52310 |
| 47749 | pin fixing clip | 90468-12015 |
| 47750 | Left disc brake cylinder assembly | 47750-52390 |
| 47781 | Right front disc brake dust cover | 47781-0D170 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11525 |
| 47782 | Left front disc brake dust cover | 47782-0D100 |
| 47789A | No. 1 front disc brake pad spacer | 47789-52020 · 47789-52030 |
