Toyota YARIS 制动助力器和真空管 — Figure 4703

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.

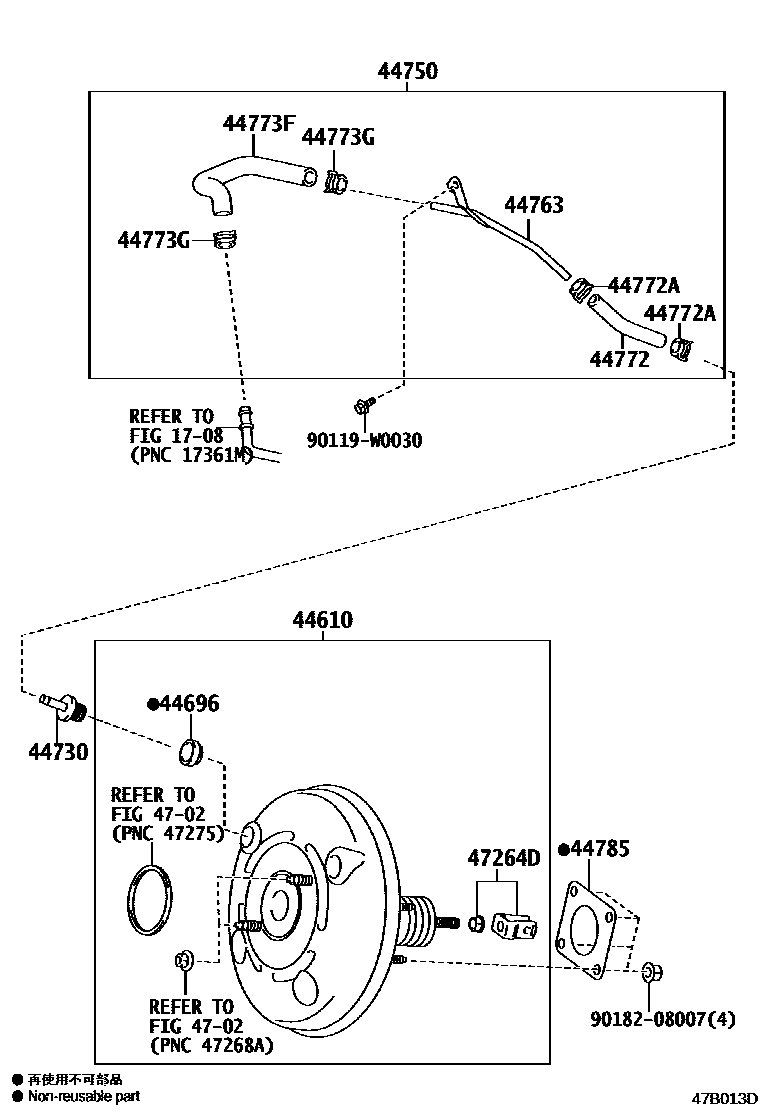

Toyota YARIS 制动助力器和真空管 EPC diagram — 47B013D
制动助力器和真空管 — 47B013D (201711 – 999999)

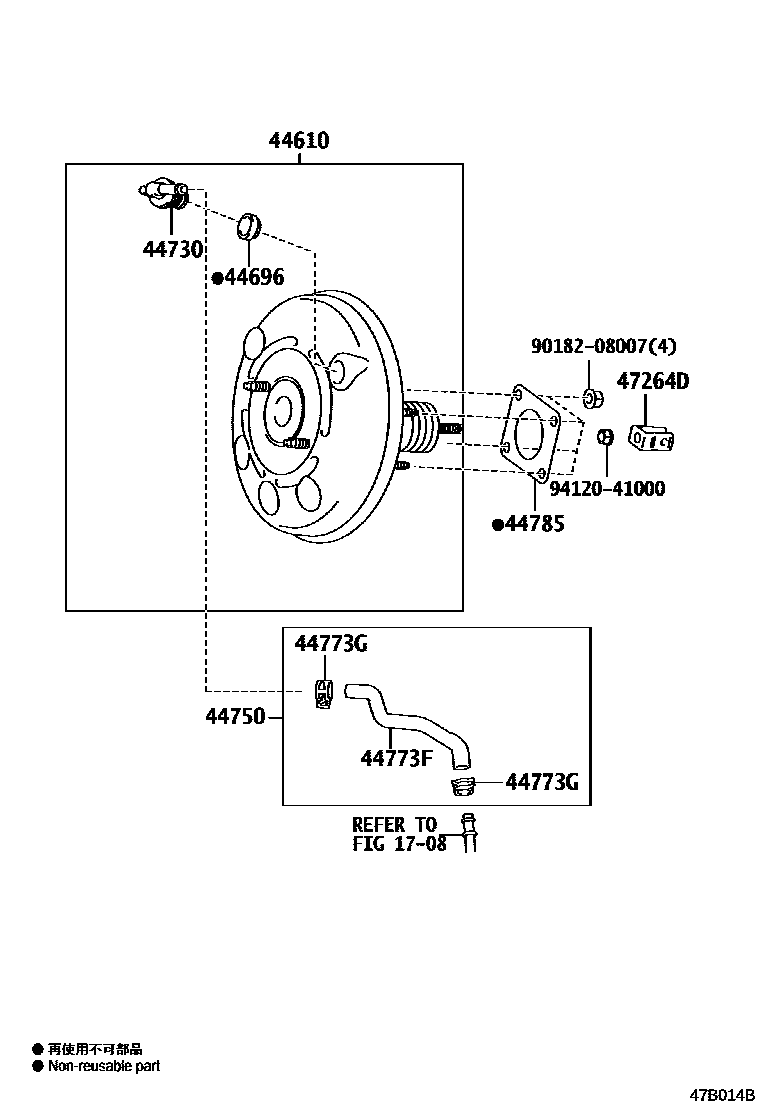

Toyota YARIS 制动助力器和真空管 EPC diagram — 47B014B
制动助力器和真空管 — 47B014B (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
44610brake booster assembly44610-09F40 · 44610-52J20
44696One-way valve seal44692-0D020 · 90480-24439
44730Vacuum check valve assembly (for brake)44730-0D010 · 44730-20170
44750Vacuum hose assembly44750-52620 · 44750-52670
44763booster vacuum tube44763-52190
44772Hoses (check valve to connector tube)44772-52340
44772AClip (for check valve to connector tube)96133-41500
44773FHoses (connector to check valve)44773-52280 · 44773-52290
44773GClamp (for connector to one-way valve hose)96133-41500
44785brake booster pad44785-16020
47264DBrake master cylinder push rod U-shaped clamp47262-09010 · 47264-52040
