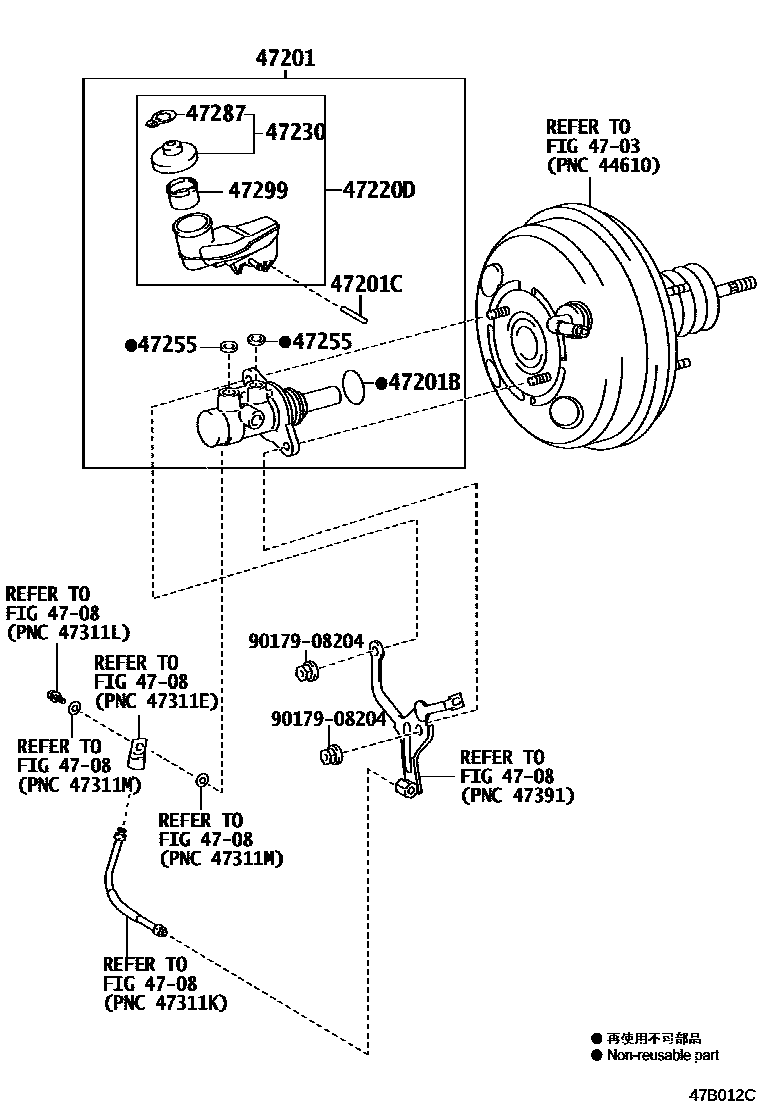

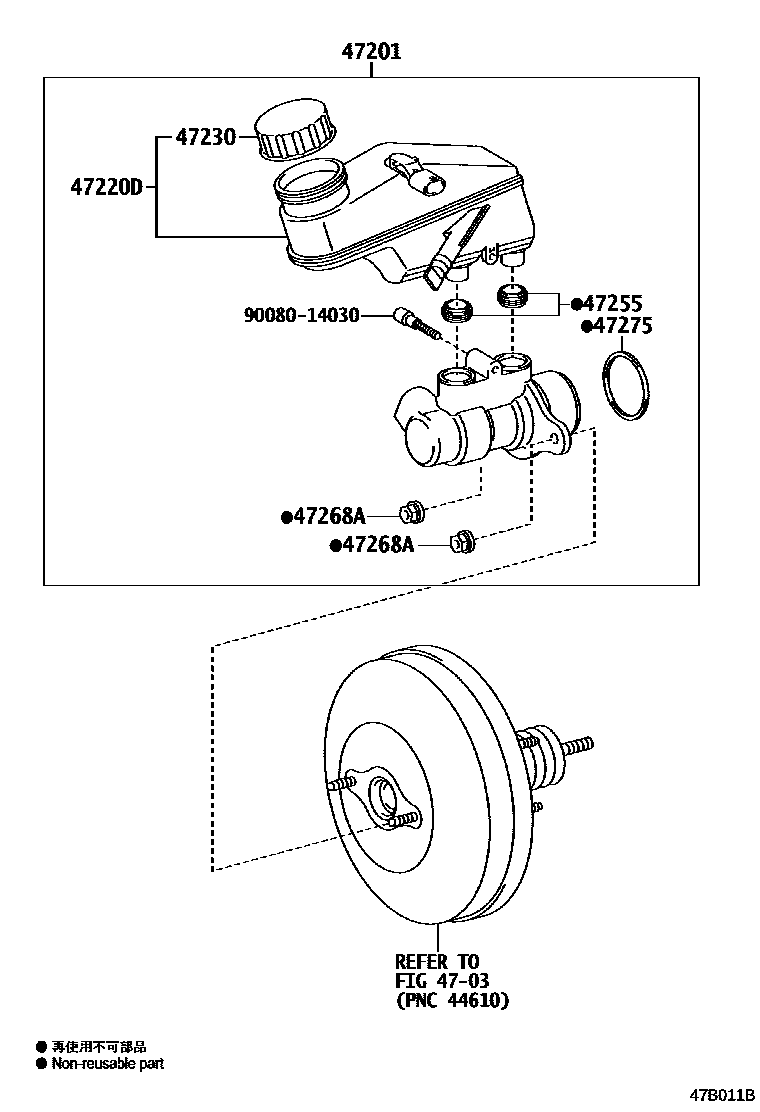

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09650 · 47201-52820 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0D080 · 47220-52320 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D060 · 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-09030 · 90029-48001 |
| 47268A | brake master cylinder nut | 47268-05010 |
| 47275 | brake master cylinder gasket | 47275-0D020 |
| 47287 | brake fluid information label | 47287-02360 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
