Toyota YARIS 前转向齿轮和连杆 — Figure 4505

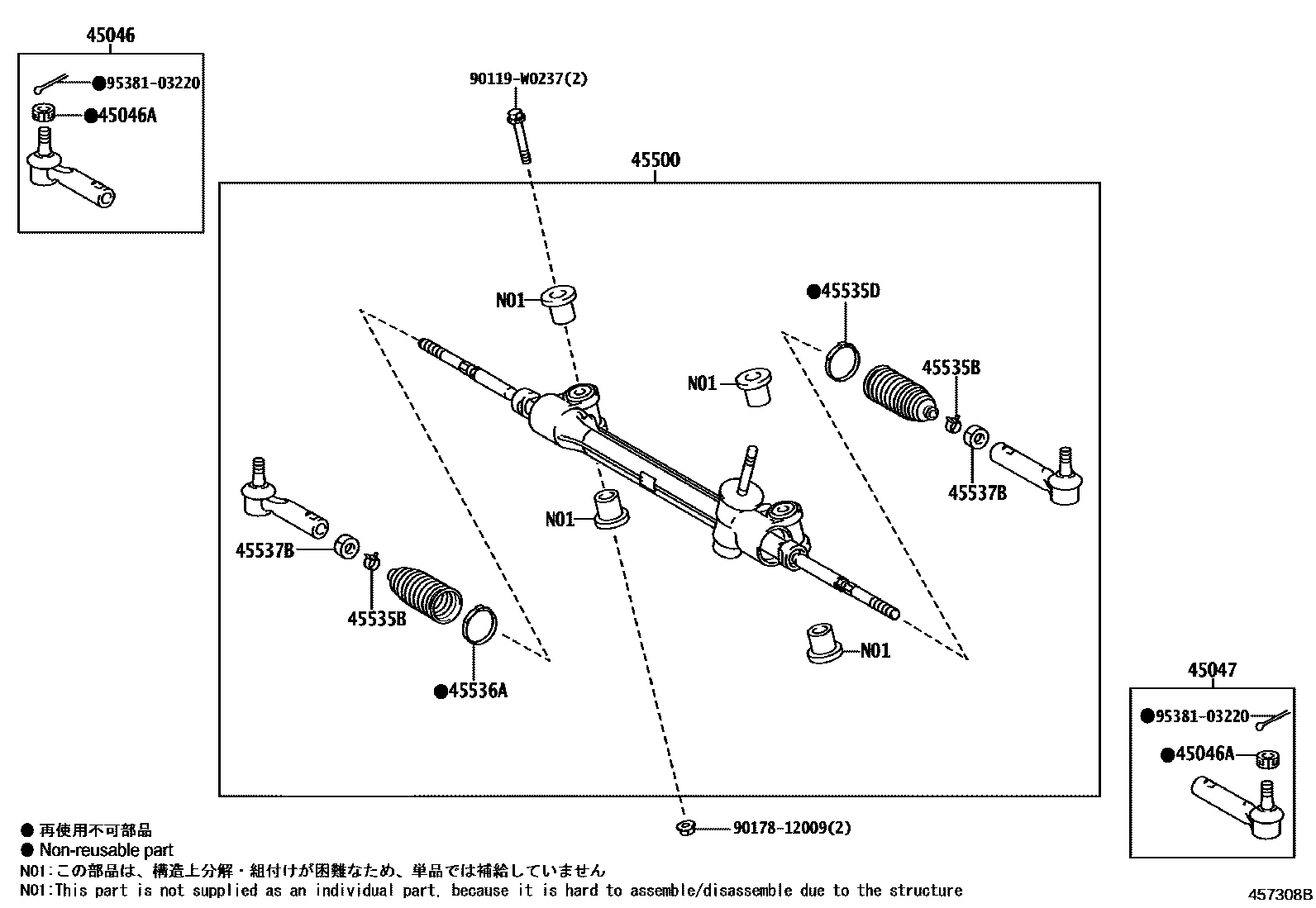

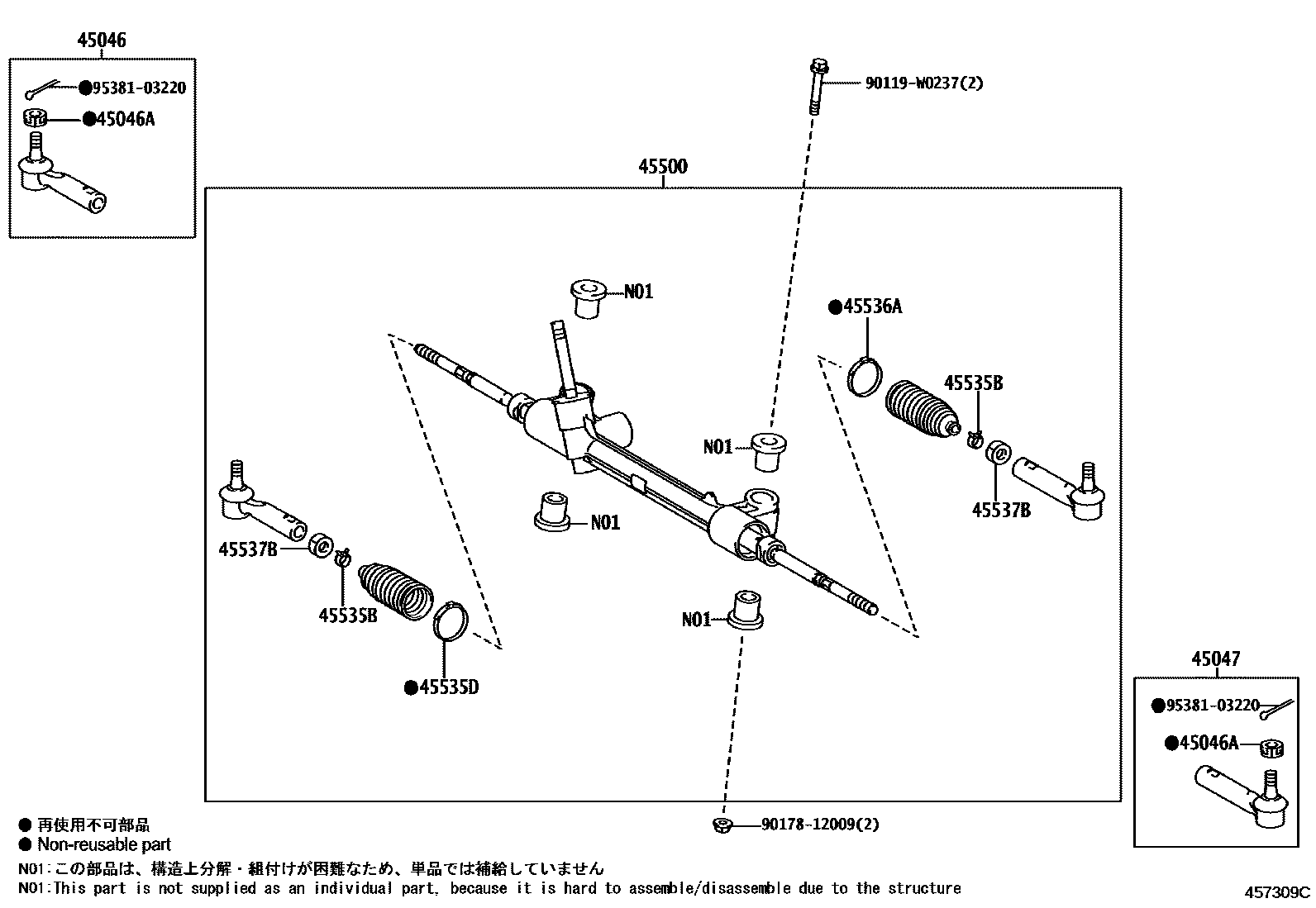

Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09860 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09860 |
| 45500 | steering tie rod assembly | 45500-0D280 · 45500-0D310 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D050 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0D040 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0D040 |
| 45537B | Rack end lock nut | 90178-15003 |
