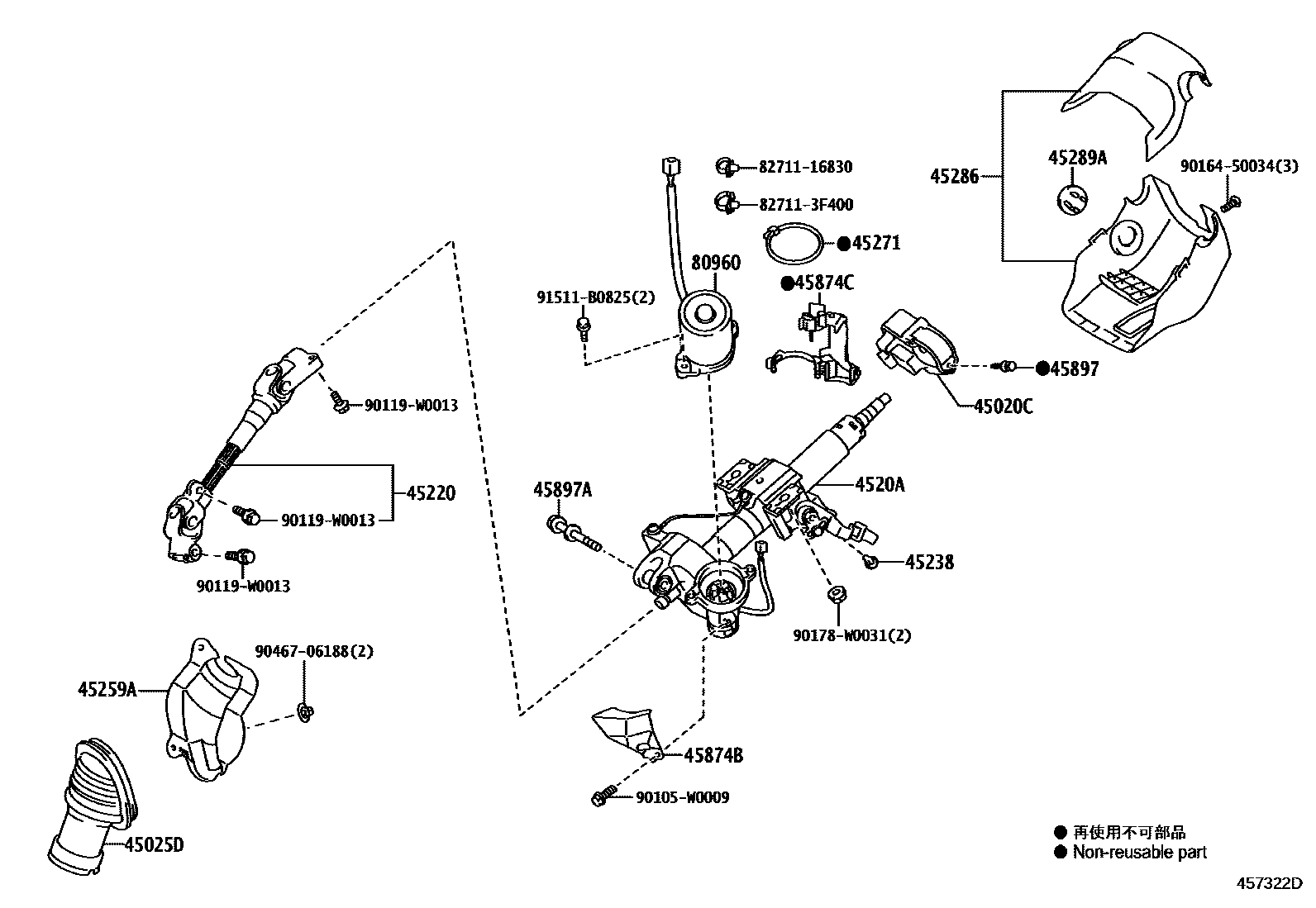

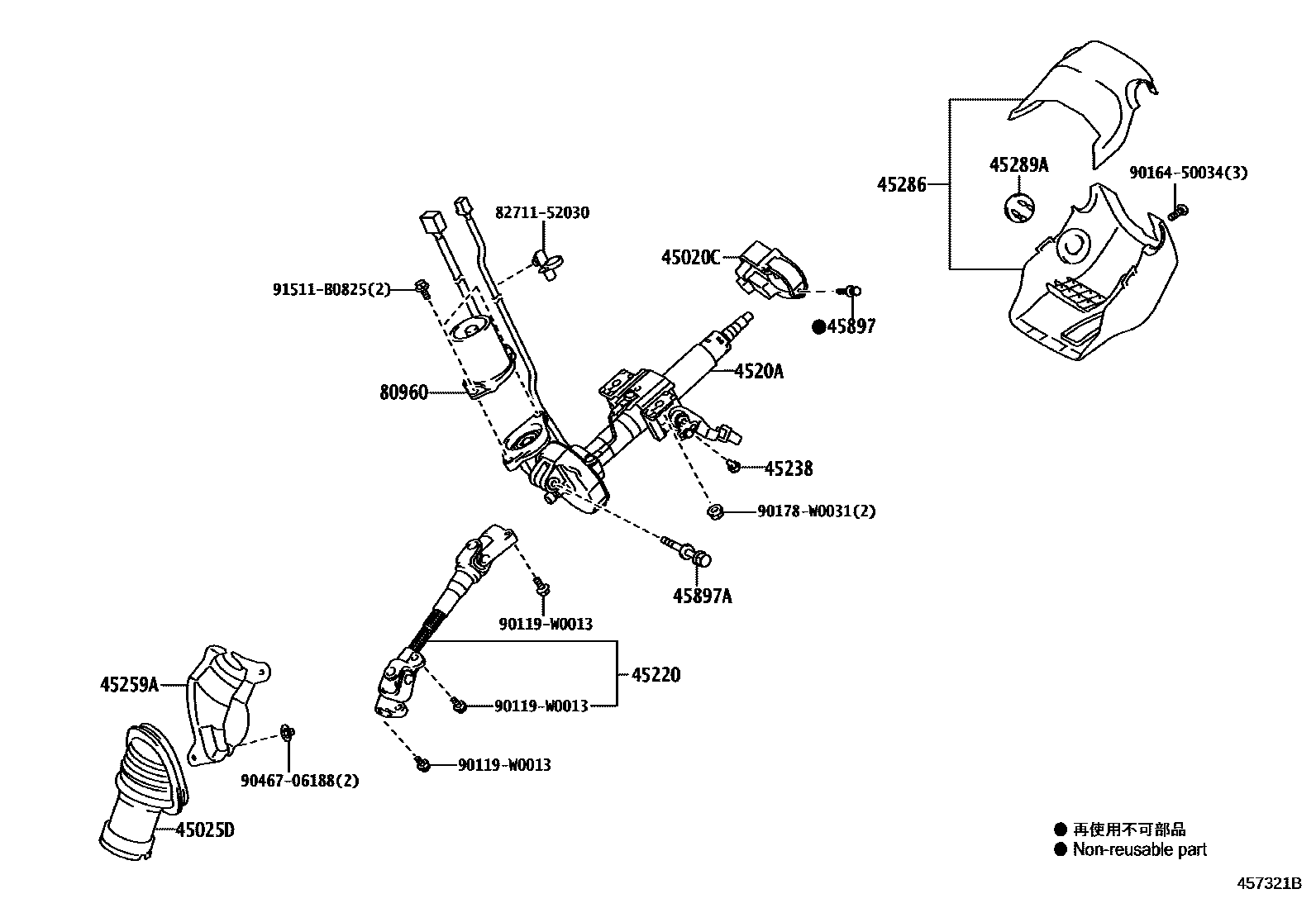

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-0D120 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D062 |
| 4520A | Electric steering column sub-assembly | 4520A-0D061 · 4520A-0D081 |
| 45220 | Steering intermediate shaft assembly | 45220-0D010 · 45220-0D020 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45259A | Steering column hole cover silencer plate | 45255-0D100 · 45255-0D120 |
| 45271 | Clamp on steering column | 45271-52040 |
| 45874B | No. 1 steering column guard | 45874-52030 |
| 45874C | No. 1 steering column guard | 45874-0D040 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 |
| 80960 | Power steering motor assembly | 80960-0D180 · 80960-0D200 |
