Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 3 images and 27 PNC and OE references.

Toyota YARIS Front Drive Shaft EPC diagram — 433792

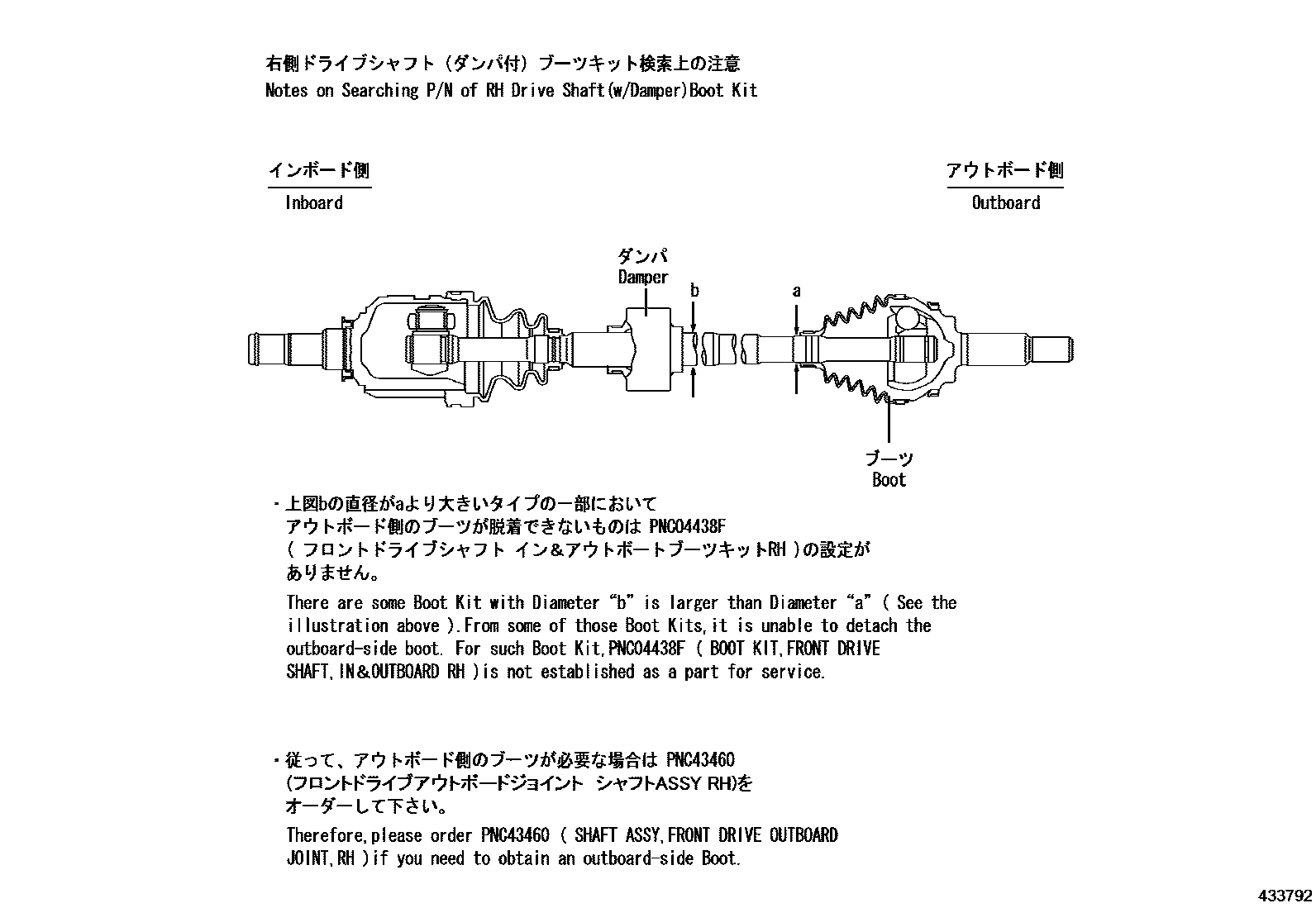

Front Drive Shaft — 433792 (201711 – 999999)
Toyota YARIS Front Drive Shaft EPC diagram — 433872B

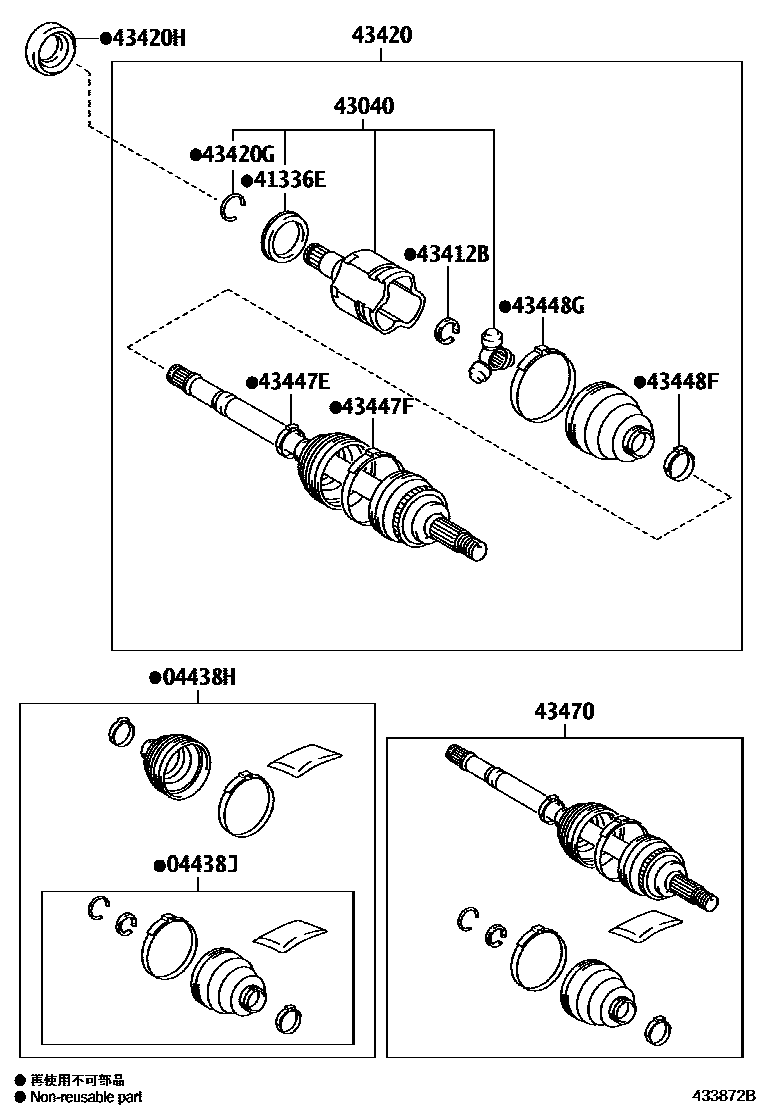

Front Drive Shaft — 433872B (201711 – 999999)
Toyota YARIS Front Drive Shaft EPC diagram — 433875A

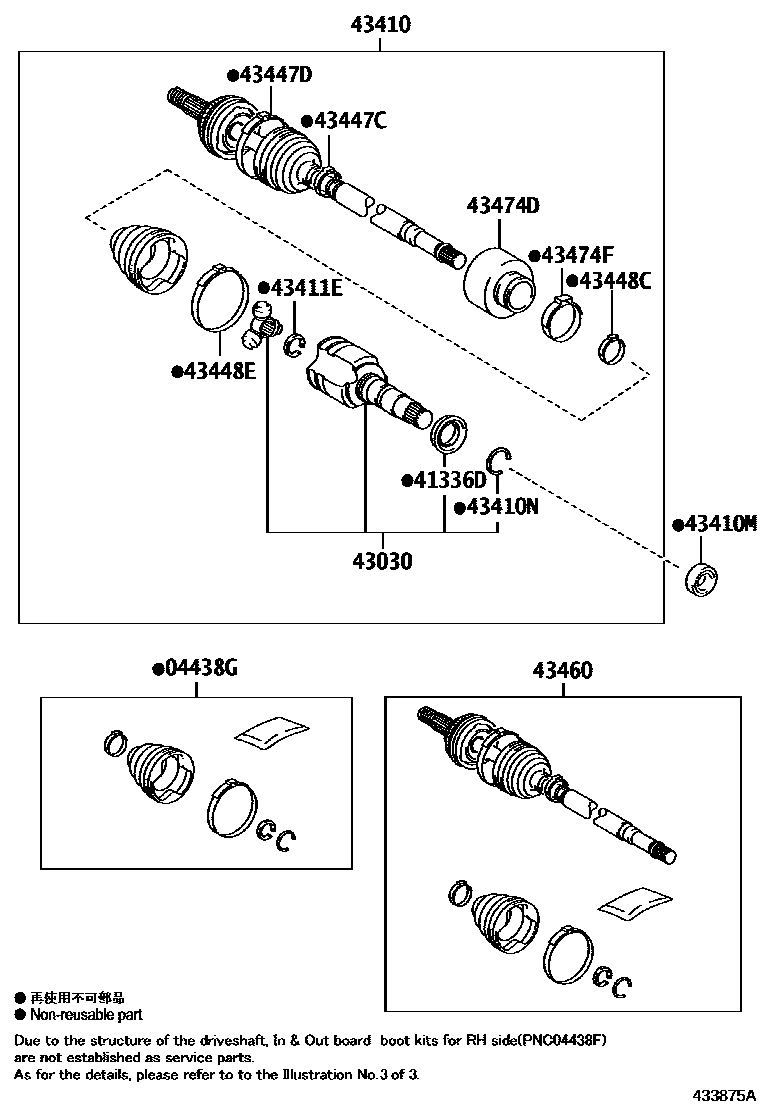

Front Drive Shaft — 433875A (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D220
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-0D300
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D220
41336DRight front driveshaft dust cover41336-05140
41336ELeft front driveshaft dust cover41336-05140
43030Right front drive shaft inner universal joint assembly43040-0D020
43040Left front drive shaft inner universal joint assembly43040-0D020
43410Right front driveshaft assembly43410-0D710
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-35065
43410NHole snap ring (for right front driveshaft)90080-52055
43411EInner shaft snap ring (for right front axle inner drive shaft)90080-52093
43412BInner shaft snap ring (for left front axle inner drive shaft)90080-52093
43420Left front drive shaft assembly43420-0D690
43420GHole snap ring (for left front driveshaft)90080-52055
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-35075
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0D260
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0D250
43447EClamp (for left front axle outer universal joint dust cover)42345-0D260
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0D250
43448CClamp (for the universal joint dust cover inside the right front axle)42345-02240
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0D850
43448FClamp (for left front axle inner universal joint dust cover)42345-02240
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0D850
43460Right front outer drive universal joint shaft assembly43460-09Z50
43470Left front outer drive universal joint shaft assembly43470-8Z282
43474DRight front driveshaft shock absorber43474-0D160
43474FClamp (for right front driveshaft shock absorber)42345-0D770
