Toyota YARIS Shift Lever & Retainer — Figure 3312

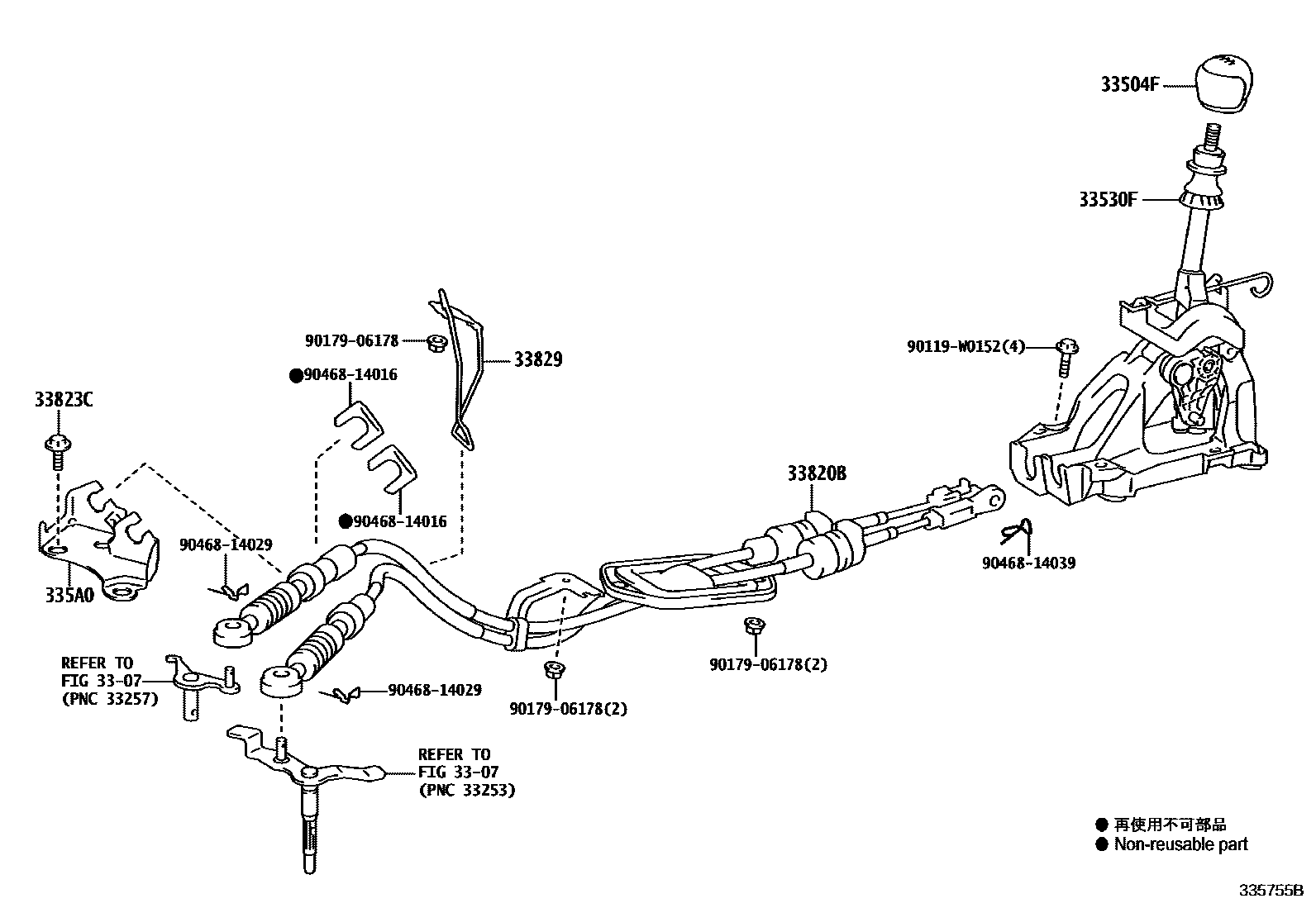

Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-0D070 |
| 335A0 | Control cable bracket assembly | 335A0-52010 |
| 33820B | Transmission control cable assembly | 33820-0D810 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 |
| 33829 | Transmission control cable bracket | 33829-52151 |
