Toyota YARIS 离合器总泵 — Figure 3103

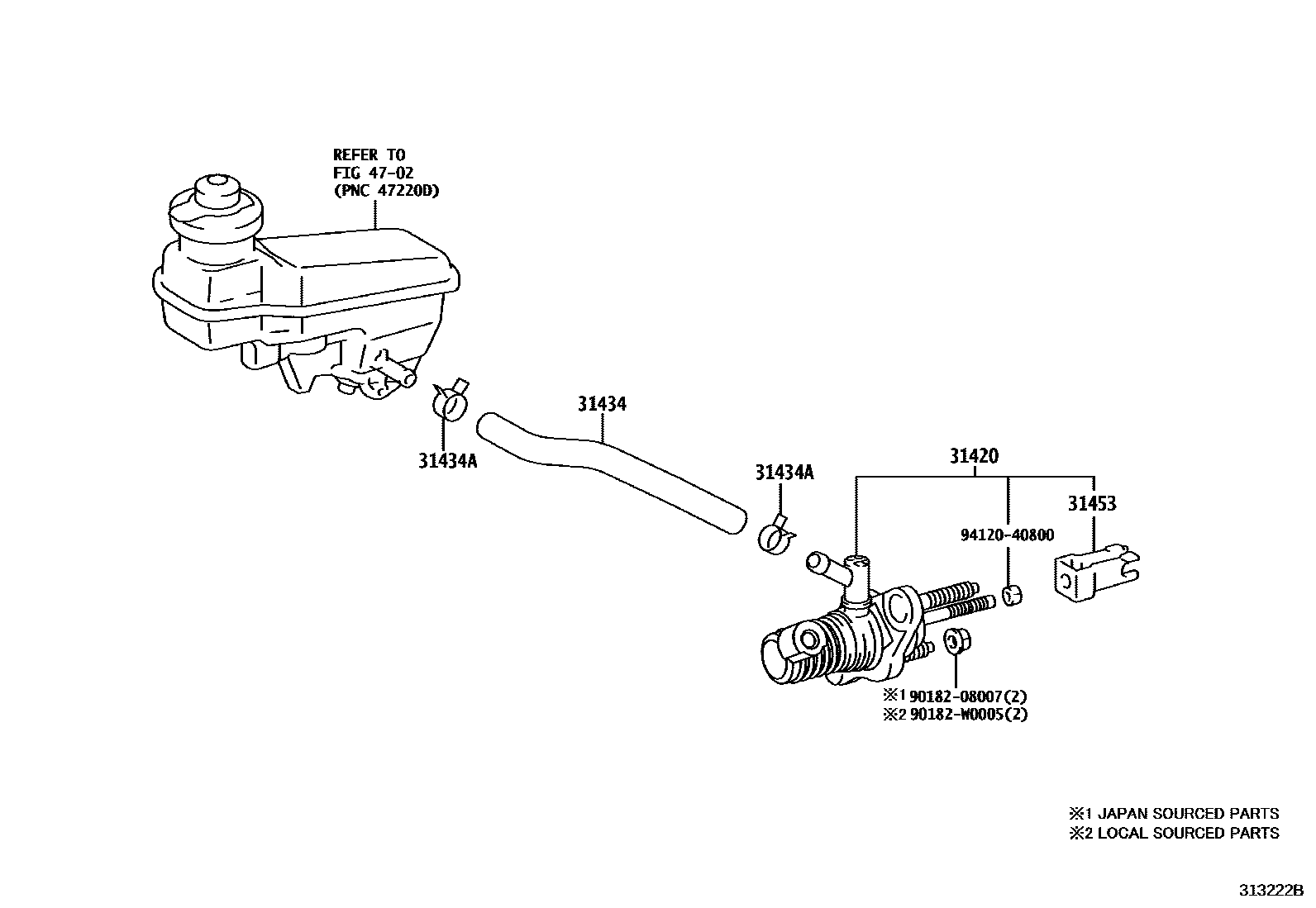

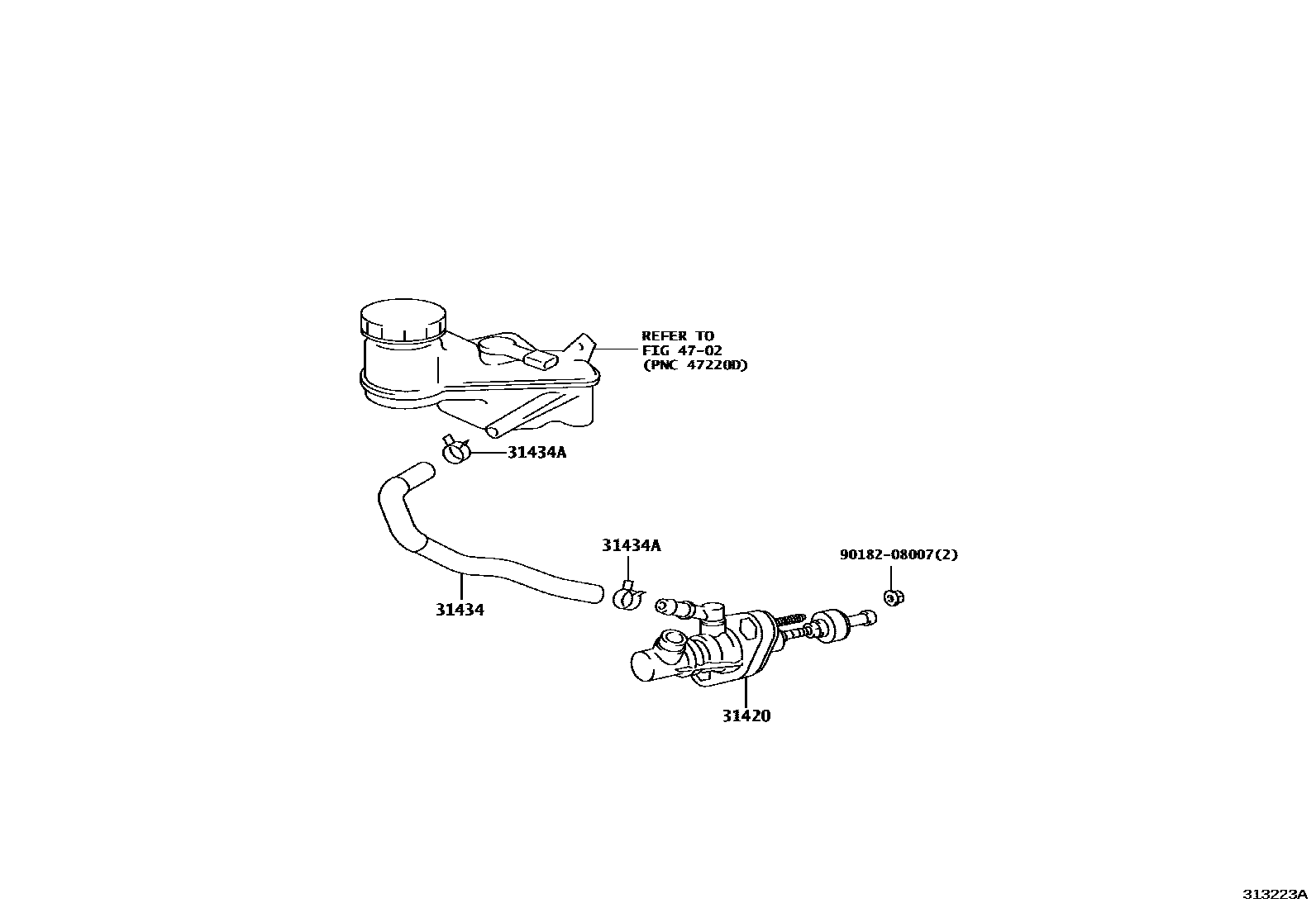

Toyota YARIS EPC diagram 3103, 离合器总泵, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31420 | Master pump assembly without reservoir | 31420-0D160 · 31420-52050 |
| 31434 | Clutch reservoir connecting pipe | 31434-52180 · 31434-52200 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96136-41801 · 96137-41501 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31453-52010 |
