Toyota YARIS 燃油喷射系统 — Figure 2211

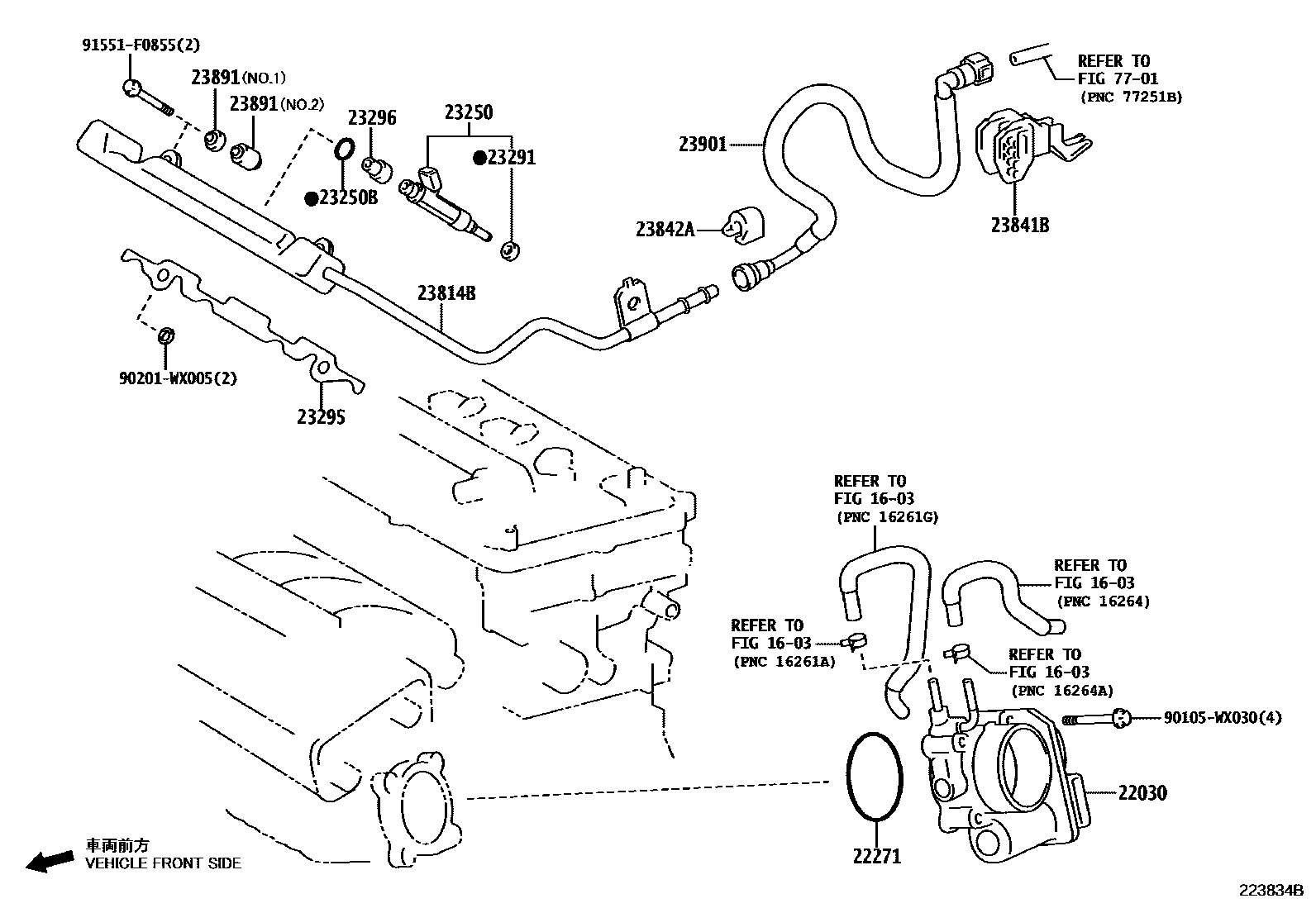

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-36010 |
| 22271 | Throttle body gasket | 22215-YV010 |
| 23250 | Fuel injector assembly | 23209-39305 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-23010 |
| 23295 | No. 1 injector fixing piece | 23295-YV010 |
| 23296 | No. 2 injector fixing piece | 23296-YV010 |
| 23814B | oil pipeline | 23814-37120 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-37070 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23891 | oil pipe septum | 23891-37010 · 23891-YV020 |
| 23901 | Fuel pipe sub-assembly | 23901-0T440 |
