Toyota YARIS Alternator — Figure 1903

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

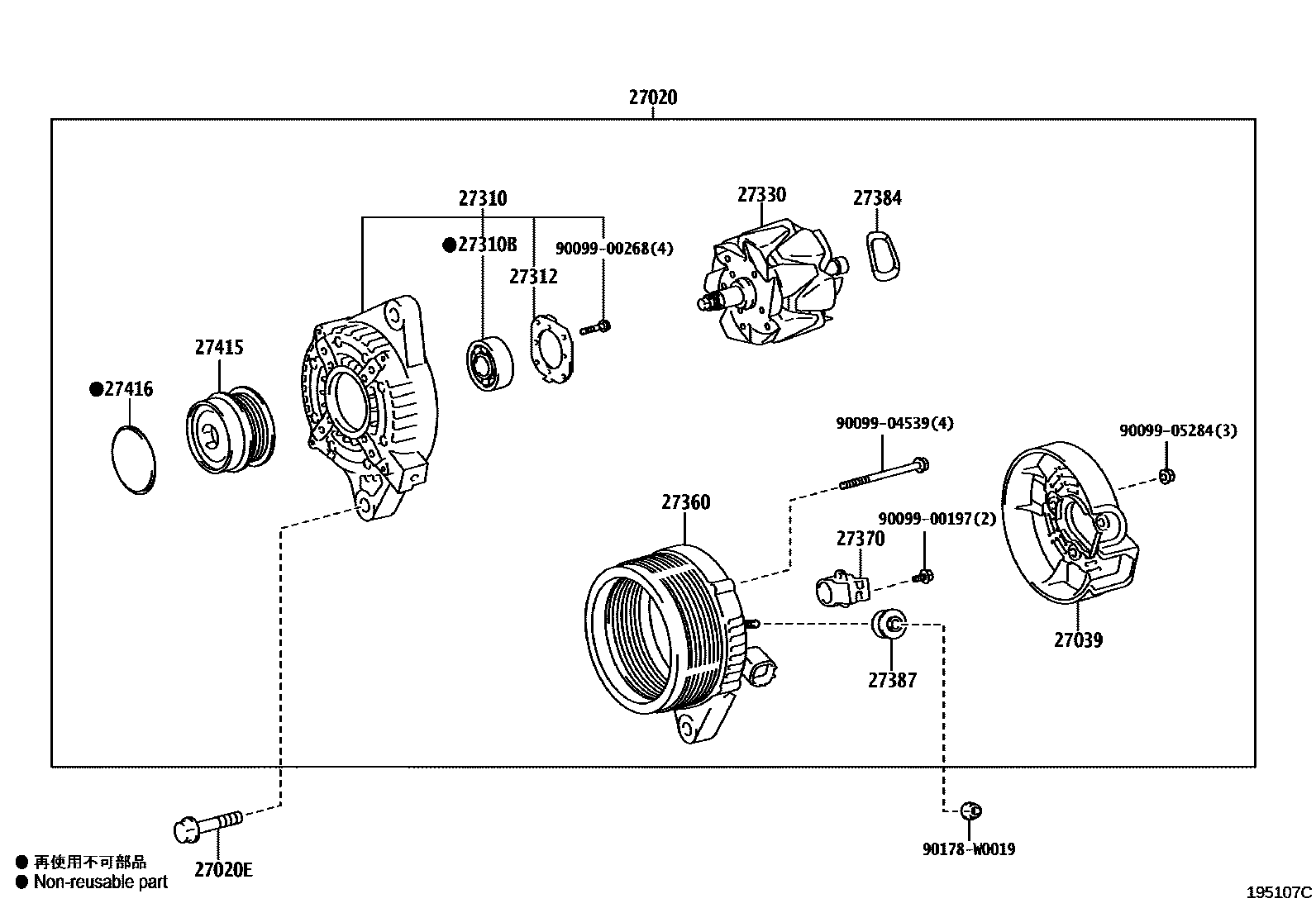

Toyota YARIS Alternator EPC diagram — 195107C
Alternator — 195107C (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-37051
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-31390
27310Alternator Drive End Frame Assembly27310-37030
27310BBearing (for Alternator Drive End Frame)90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-30070
27360Alternator Stator Coil Assembly27360-37080
27370Alternator Brush Holder Assembly27370-31220
27384Washer27384-50030
27387Terminal Insulator27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T060
27416Generator pulley cover27416-0W050
