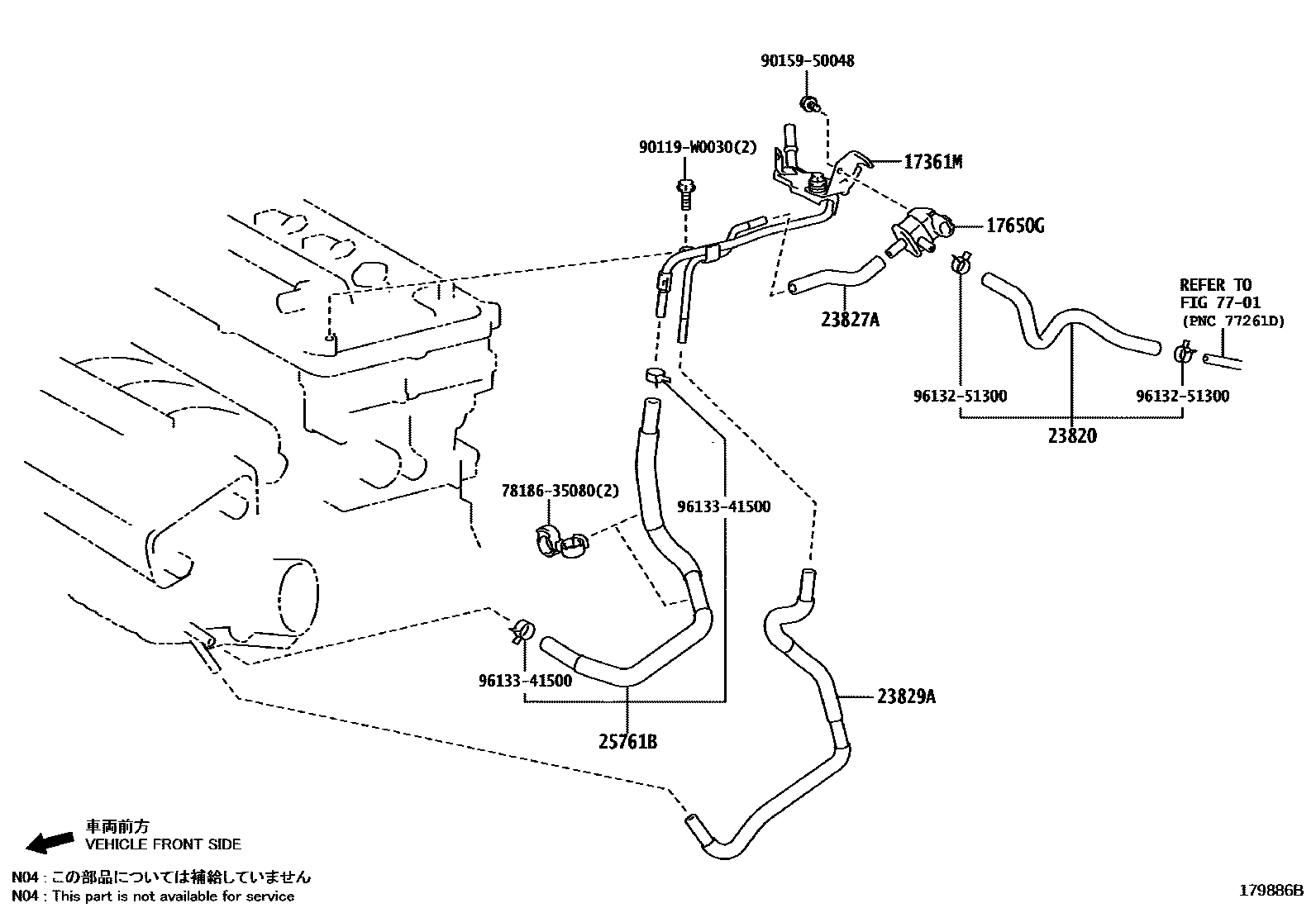

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17361M | air tube | 17361-37011 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-TC001 |
| 23820 | Fuel vapor supply hose assembly | 23820-37120 |
| 23827A | No. 2 fuel vapor supply hose | 23827-37020 |
| 23829A | Fuel vapor supply hose | 23829-37010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37090 |
