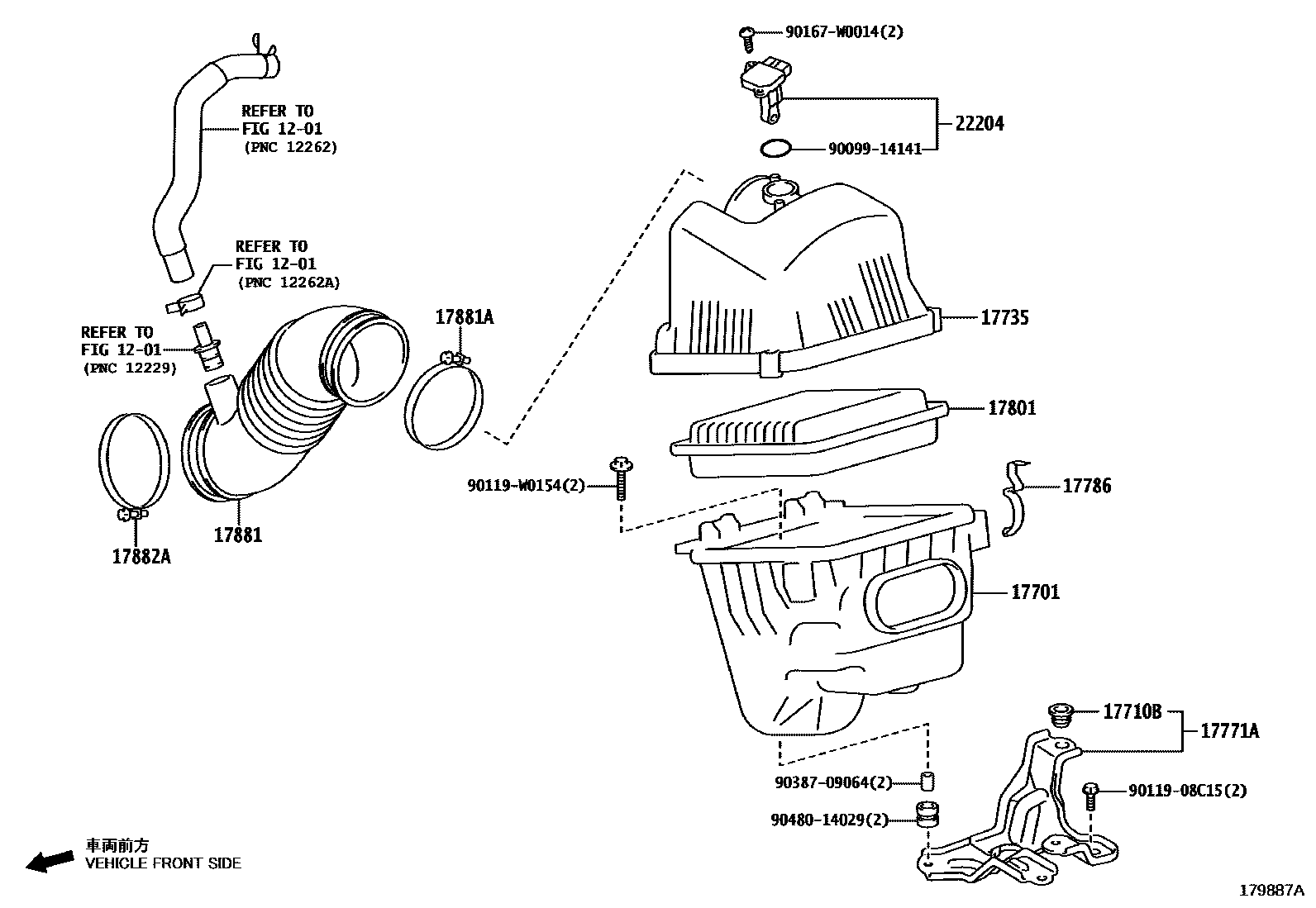

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-0T300 |
| 17710B | gasket | 90480-18006 |
| 17735 | air filter cover | 17735-0T260 |
| 17771A | air filter bracket | 17771-21050 |
| 17786 | Air filter clip | 17786-37010 |
| 17801 | Air filter element sub-assembly | 17801-0D060 |
| 17881 | No. 1 air cleaner hose | 17881-37350 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10830 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10880 |
| 22204 | Intake air flow meter assembly | 22204-22010 |
