Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.

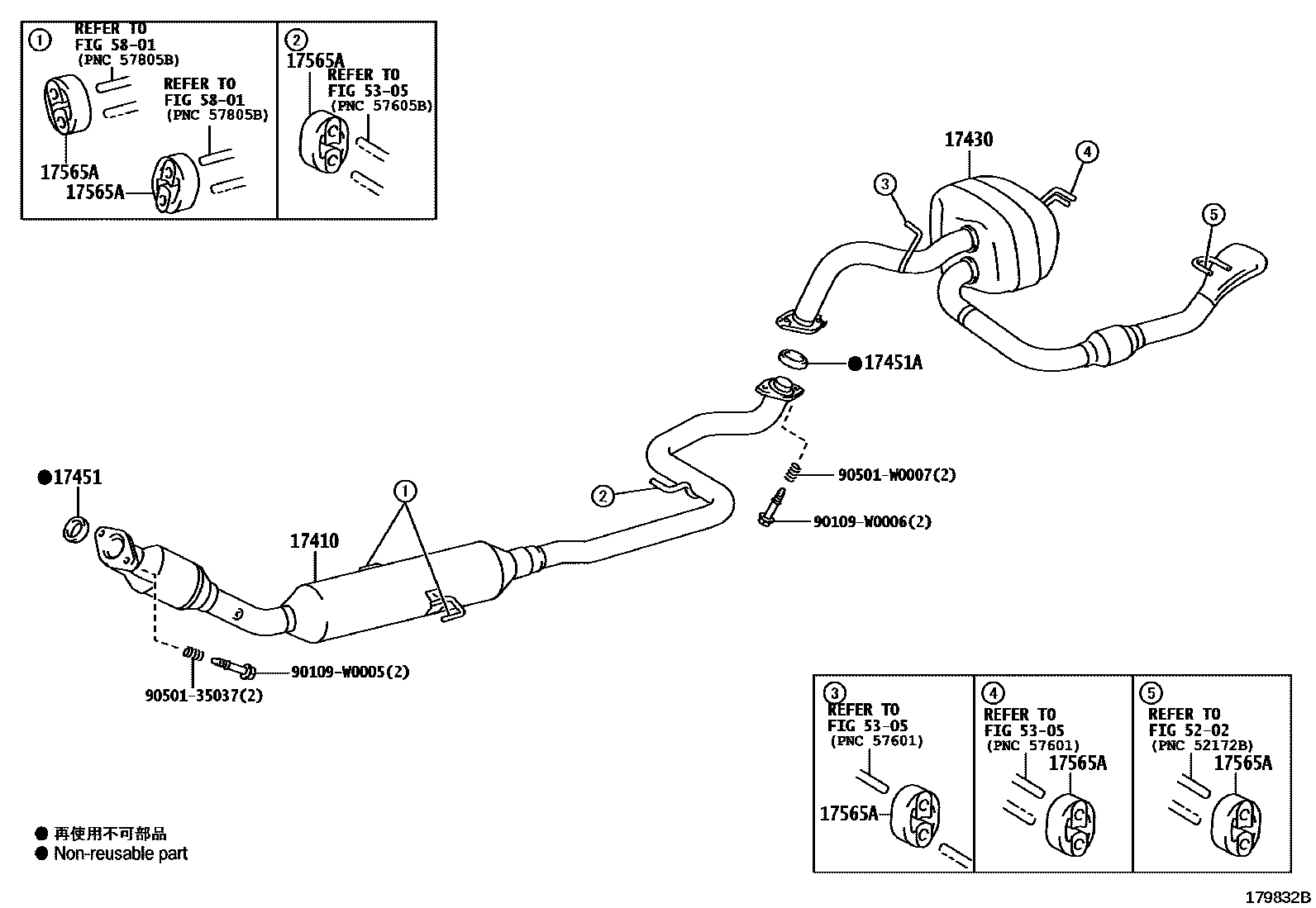

Toyota YARIS Exhaust Pipe EPC diagram — 179832B
Exhaust Pipe — 179832B (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-37C10
17430Exhaust tailpipe assembly17430-37780
17451Exhaust pipe gasket17451-0R010
17451ANo. 2 exhaust pipe gasket17451-28022
17565ANo. 4 exhaust pipe lifting lug17565-0Q030
