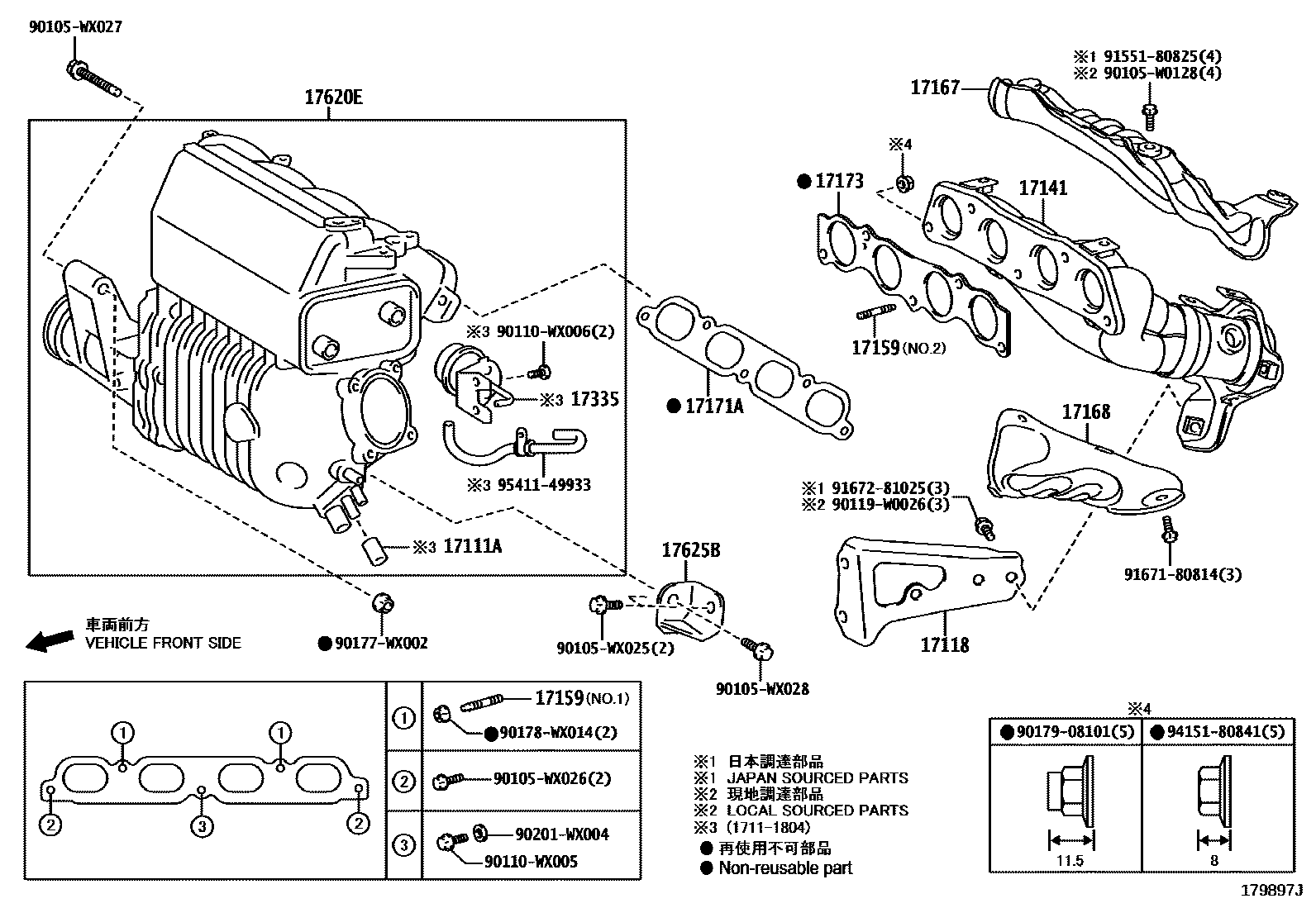

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111A | No. 1 screw plug | 90339-03005 |
| 17118 | Manifold stays | 17118-0T020 · 17118-37010 |
| 17141 | exhaust manifold | 17141-0T050 · 17141-37051 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0T020 · 17167-37011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0T030 · 17168-37100 |
| 17171A | JOINT, COLLECTEUR ADMISSION | 17171-YV010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0T020 · 17173-37010 |
| 17335 | Intake control valve actuator | 17335-YV010 |
| 17620E | supercharger assembly | 17620-YV010 |
| 17625B | SUPPORT, SURCOMPRESSEUR | 17625-YV020 |
