Toyota YARIS 中间冷却器和副散热器 — Figure 1604

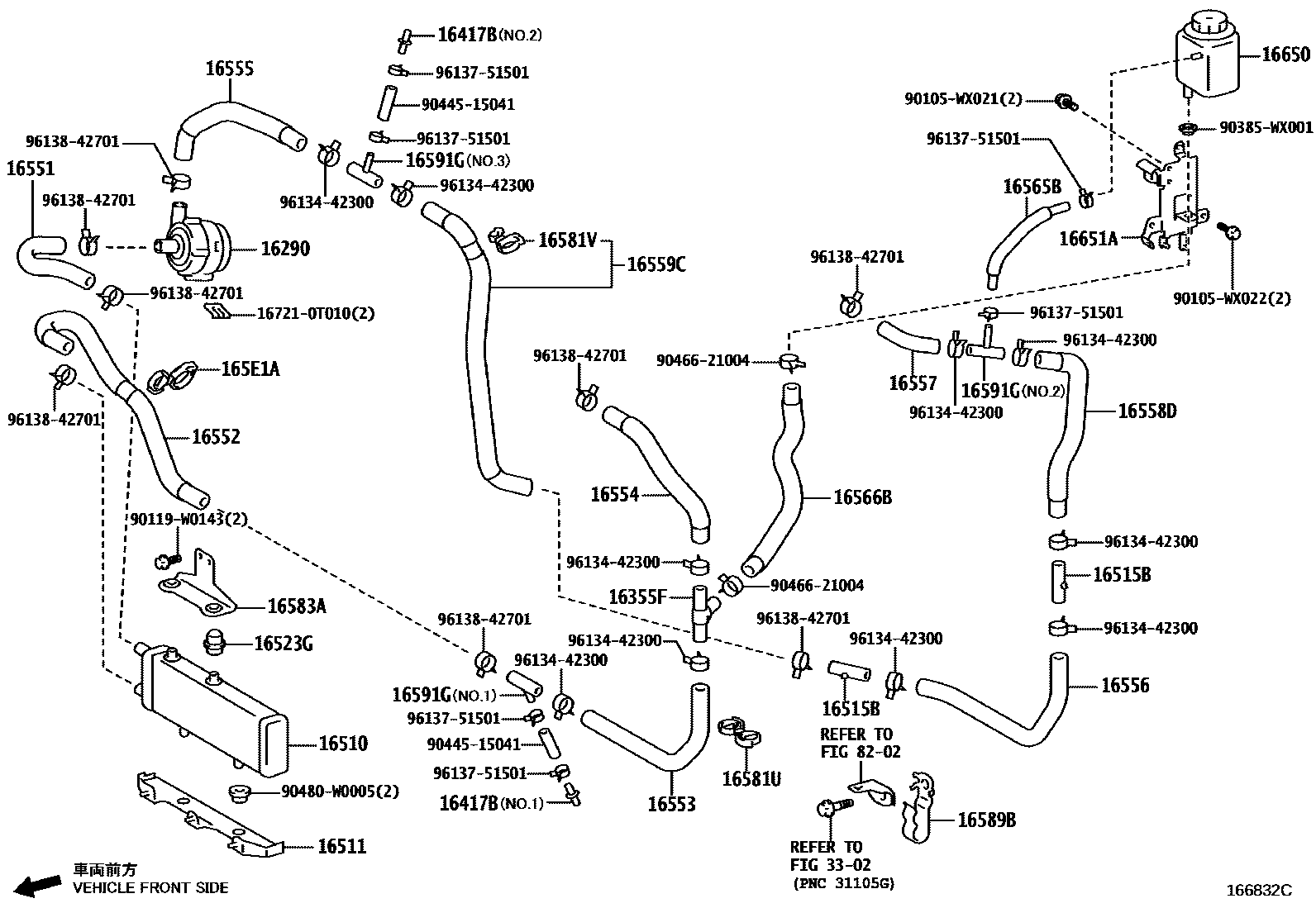

Toyota YARIS EPC diagram 1604, 中间冷却器和副散热器, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16290 | Water pump assembly with motor and bracket | 16100-0T100 |
| 16355F | JOINT, DERIVATION EAU, AVANT | 16355-70050 |
| 16417B | ROBINET, PURGE RADIATEUR | 16417-45190 |
| 16510 | Sub-radiator assembly | 16510-0T010 |
| 16511 | Secondary radiator bracket | 16511-0T010 |
| 16515B | TUYAU, SOUS-RADIATEUR, NO.1 | 16515-37010 |
| 16523G | COUSSIN, SUPPORT RADIATEUR | 16523-0Q020 |
| 16551 | No. 1 auxiliary radiator hose | 16551-37011 |
| 16552 | No. 2 auxiliary radiator hose | 16552-37010 |
| 16553 | No. 3 auxiliary radiator hose | 16553-37010 |
| 16554 | No. 4 auxiliary radiator hose | 16554-37010 |
| 16555 | No. 5 auxiliary radiator hose | 16555-37010 |
| 16556 | No. 6 auxiliary radiator hose | 16556-37010 |
| 16557 | No. 7 auxiliary radiator hose | 16557-37010 |
| 16558D | FLEXIBLE, EAU REFR REFR INTERMEDIAIRE, NO.8 | 16558-37010 |
| 16559C | FLEXIBLE, EAU REFR REFR INTERMEDIAIRE, NO.9 | 16559-37010 |
| 16565B | FLEXIBLE, ENTREE RESERVOIR RESERVE | 16565-37010 |
| 16566B | FLEXIBLE, SORTIE RESERVOIR RESERVE | 16566-37011 |
| 16581U | COLLIER, FLEXIBLE(POUR FLEX SOUS-RADIATEUR NO.3) | 16581-37220 |
| 16581V | COLLIER,FLEX(POUR FLEX EAU REFR REFR INTERMEDI NO.9) | 16581-37230 |
| 16583A | Radiator bracket No. 2 | 16583-0T010 |
| 16589B | SUPPORT, COLLIER FLEX RADIATEUR | 16589-37020 |
| 16591G | TUYAU, DERIVATION RADIATEUR | 16591-37010 |
| 165E1A | COLLIER, TUYAU DERIVATION D'EAU, NO.1 | 165E1-37010 |
| 16650 | Reservoir tank assembly (for intercooler) | 16640-0T010 |
| 16651A | SUPPORT, RESERVOIR AUXILIAIRE DE REFROIDISSEUR | 16651-0T010 |
