Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 36 PNC and OE references.

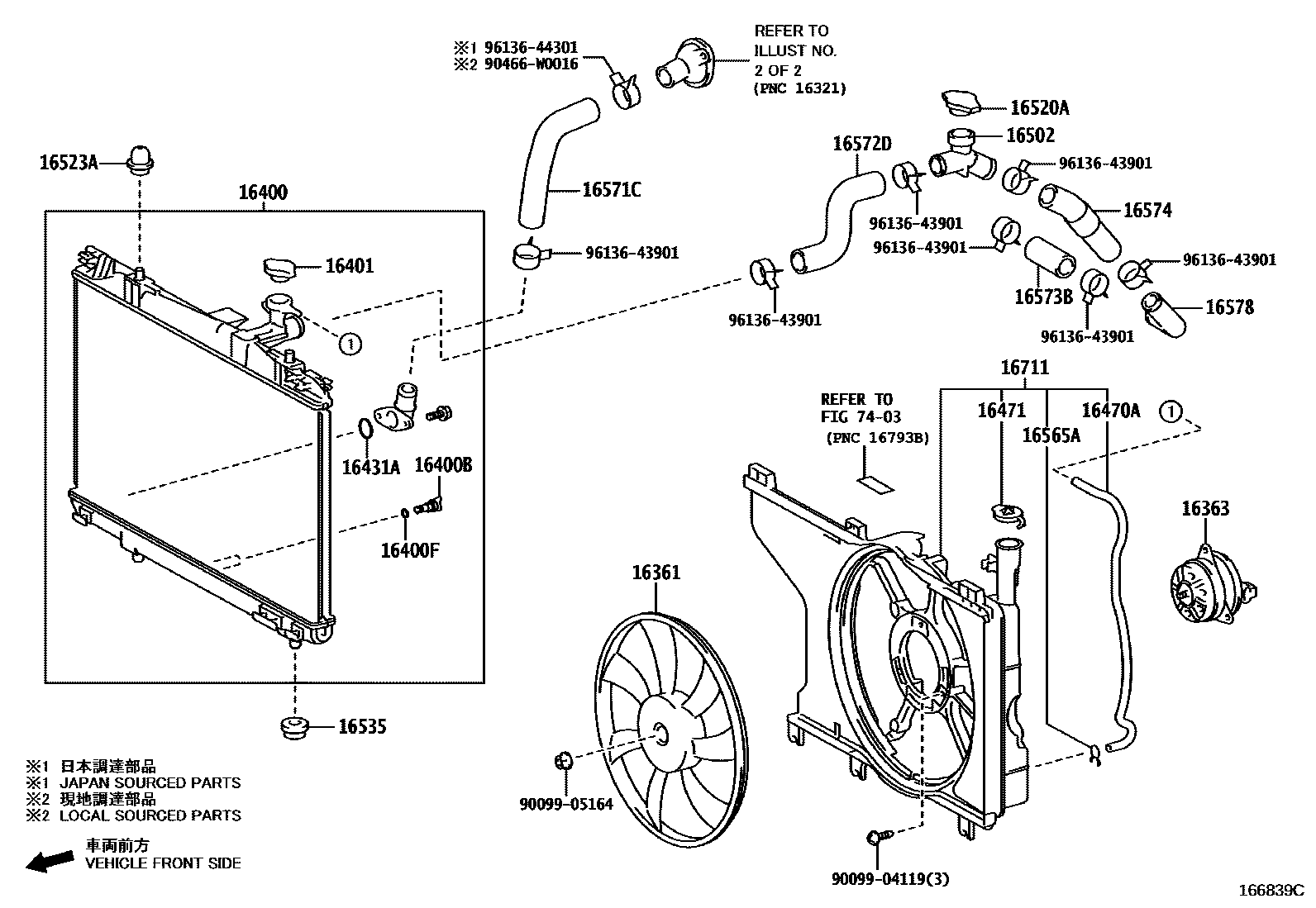

Toyota YARIS RADIATOR & WATER OUTLET EPC diagram — 166839C
RADIATOR & WATER OUTLET — 166839C (201711 – 999999)

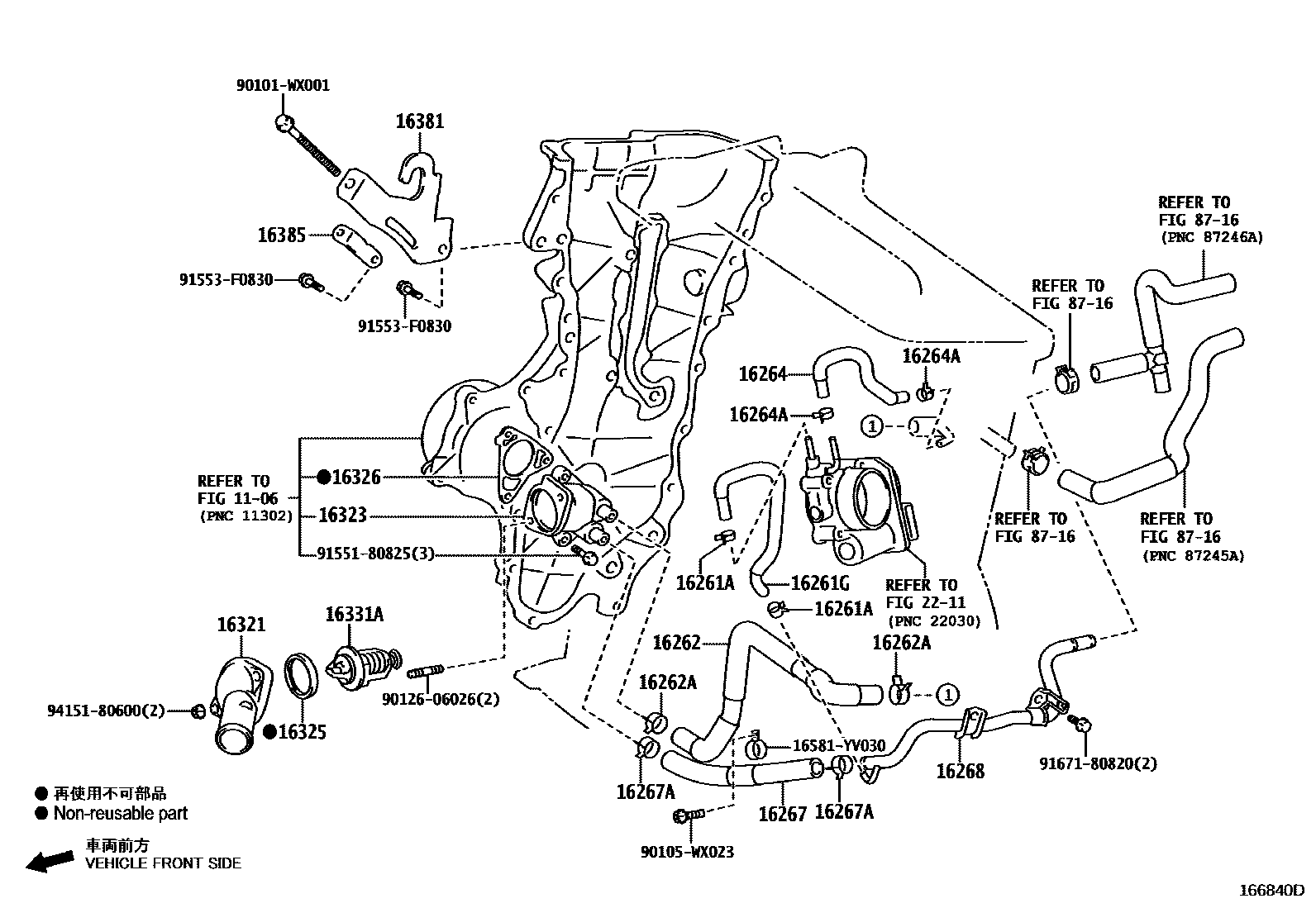

Toyota YARIS RADIATOR & WATER OUTLET EPC diagram — 166840D
RADIATOR & WATER OUTLET — 166840D (201711 – 999999)

PNC and OE references

PNCPart nameOE numbers
16261ACLAMP OR CLIP, WATER BY-PASS HOSE96137-41501
16261GHOSE, WATER BY-PASS, NO.116261-37210
16262water inlet hose16262-0T050 · 16262-37010
16262AClamp (for water inlet hose)90466-W0007 · 96136-42501
16264HOSE, WATER BY-PASS, NO.216264-37220
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.296137-41501
16267HOSE, WATER BY-PASS, NO.316267-37010
16267ACLAMP OR CLIP, WATER BY-PASS HOSE NO.390466-W0007 · 96136-42501
16268PIPE, WATER BY-PASS, NO.116268-0T140 · 16268-37070
16321water inlet16321-0T010 · 16321-37010
16323HOUSING, WATER INLET16323-37021
16325GASKET, WATER INLET HOUSING, NO.116325-28010
16326GASKET, WATER INLET HOUSING, NO.216326-37010
16331Athermostat90916-03125
16361Fan16361-0Y250
16363cooling fan motor16363-0G051
16381Fan belt adjustment lever16381-0T060
16385Fan belt adjustment slider16385-0T010
16400Radiator assembly16400-0T561
16400BRadiator drain switch screw plug16417-0Q040
16400FSeal (for radiator drain switch)16492-21050
16401Radiator cover sub-assembly16401-36020
16431AO-ring (for radiator water inlet)16492-0Y070
16470AHoses or tubes (for radiator reservoir)16378-0Y110
16471Liquid storage tank cover sub-assembly16471-23030
16502Water injection port sub-assembly16502-37030
16520AWater injection port cover sub-assembly16401-30020
16523ARadiator bracket cushion16523-0Q020
16535Radiator lower support90480-W0005
16565Aclip90467-11085
16571CRadiator hose No. 116571-37250
16572DRadiator hose No. 216572-37230
16573BRadiator hose No. 316573-37100
16574Radiator hose No. 416574-37030
16578Radiator pipe No. 216578-37020
16711fan cover16711-0T350
