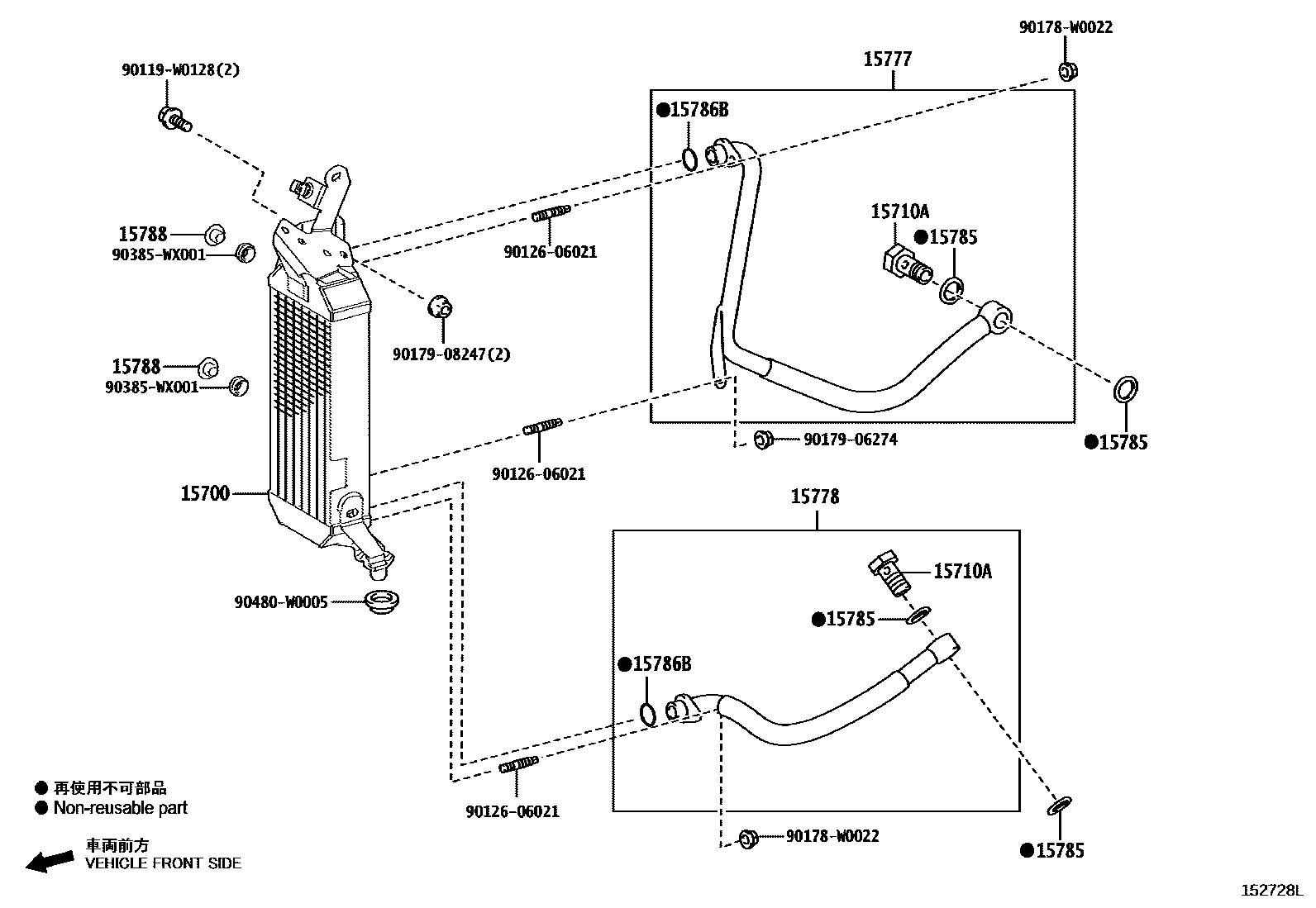

Toyota YARIS Engine Oil Cooler — Figure 1503
Toyota YARIS EPC diagram 1503, Engine Oil Cooler, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15700 | Oil cooler assembly with bracket | 15700-0T011 |
| 15710A | Connector bolt (for oil cooler) | 90401-W0004 |
| 15777 | oil cooler hose | 15777-0T050 |
| 15778 | No. 2 oil cooler hose | 15778-0T050 |
| 15785 | oil cooler gasket | 15785-0T070 |
| 15786B | Oil pipe seal | 15786-0T010 |
| 15788 | oil cooler gasket | 15788-0T010 |
