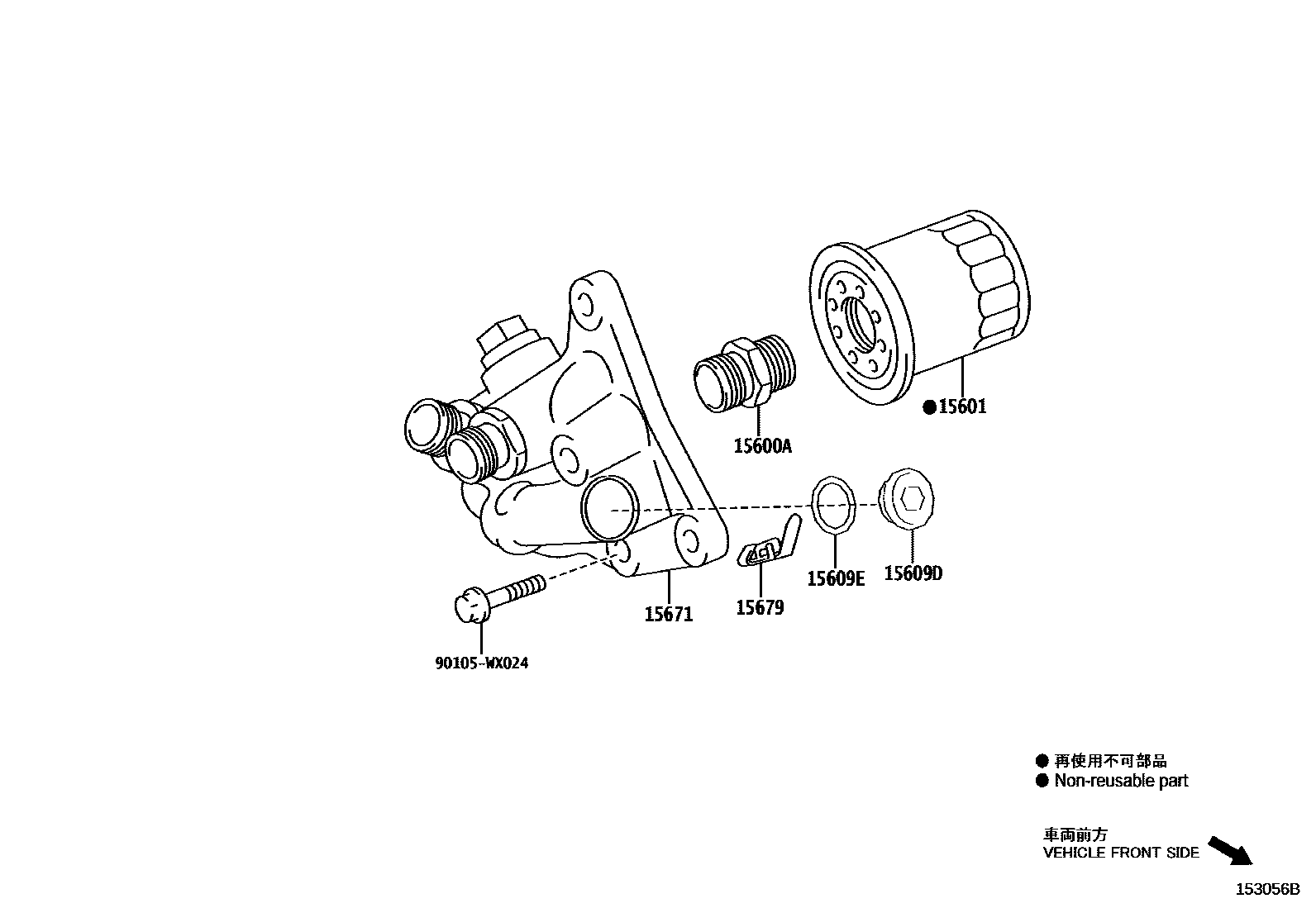

Toyota YARIS Oil Filter — Figure 1502
Toyota YARIS EPC diagram 1502, Oil Filter, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90402-WX001 |
| 15601 | Oil filter sub-assembly | 90915-10003 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 |
| 15609E | Headed straight thread plug liner | 90430-20004 |
| 15671 | Oil filter bracket | 15670-YV010 |
| 15679 | Oil filter bracket clip | 15679-37011 |
