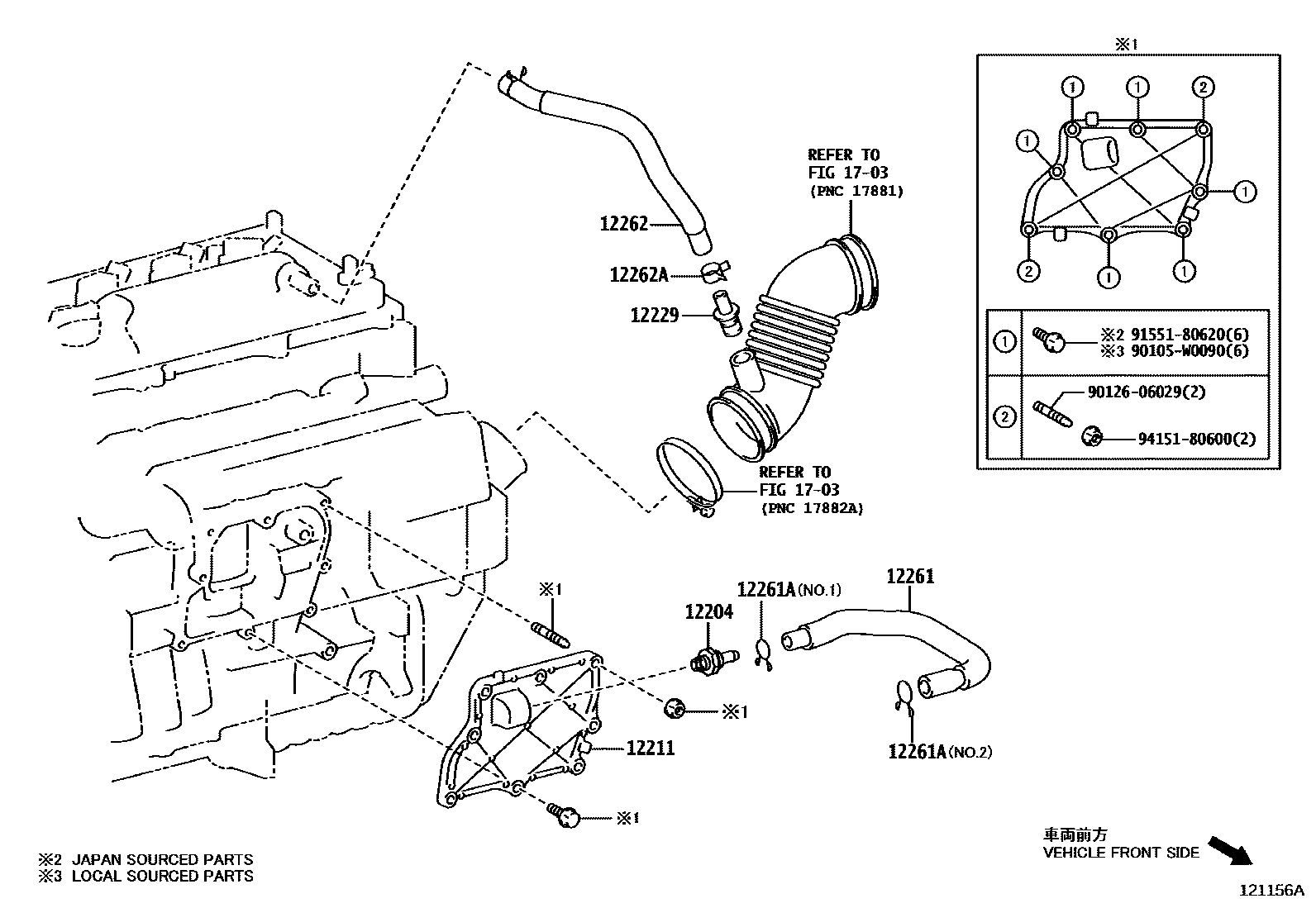

Toyota YARIS Ventilation Hose — Figure 1201
Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-37010 |
| 12211 | Ventilation box No. 1 | 12211-0T010 · 12211-37010 |
| 12229 | ventilation duct | 12229-21010 |
| 12261 | Ventilation Hose | 12261-37050 |
| 12261A | Clip or clip (for vent hose) | 90467-15120 · 90467-23002 |
| 12262 | Ventilation hose No. 2 | 12262-37090 |
| 12262A | Clamp (for vent hose No. 2) | 96136-42201 |
