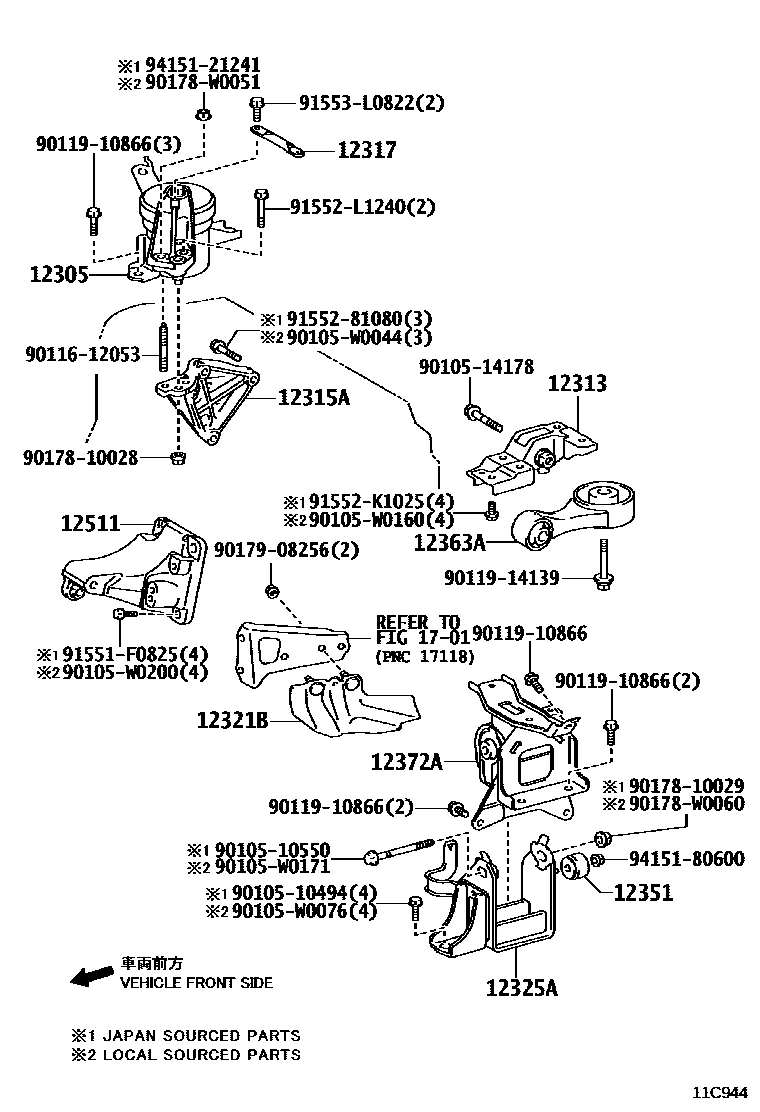

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-37190 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-37010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37040 |
| 12317 | Engine right mounting bracket | 12317-37010 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-37100 |
| 12351 | engine mount shock absorber | 12351-37100 |
| 12363A | Engine movement control lever | 12363-37010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-37141 |
| 12511 | No. 1 generator bracket | 12511-0T020 · 12511-37010 |
