Toyota YARIS Cylinder Head — Figure 1104

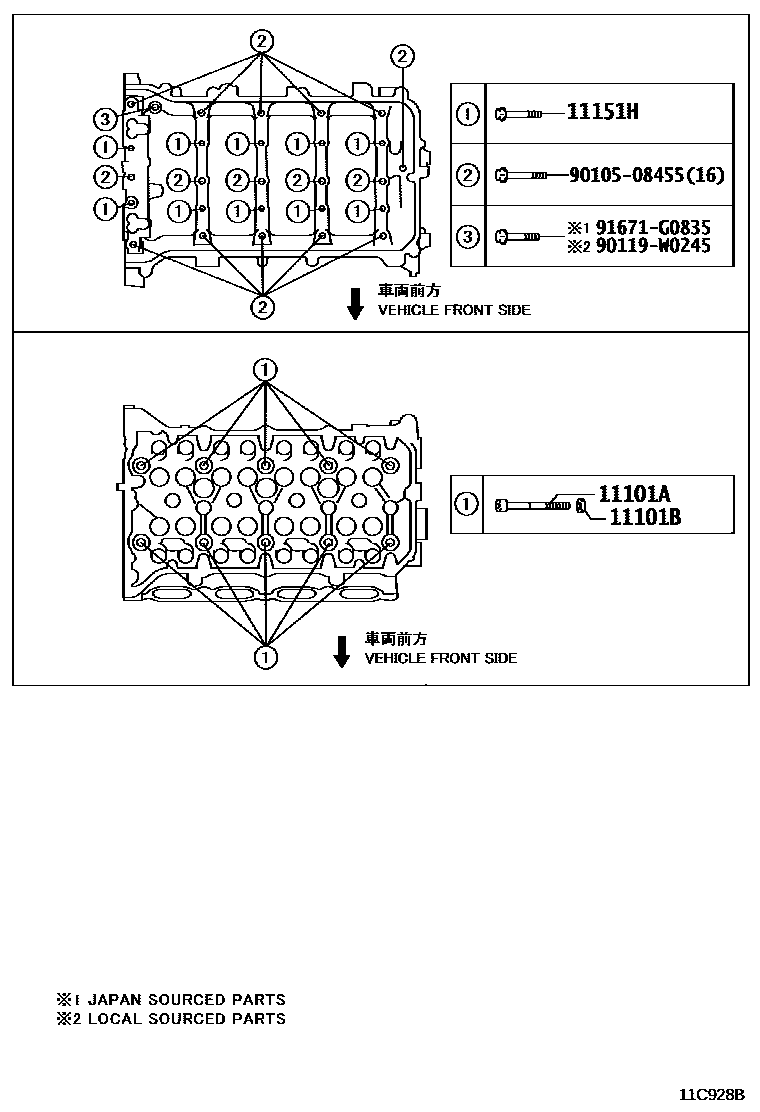

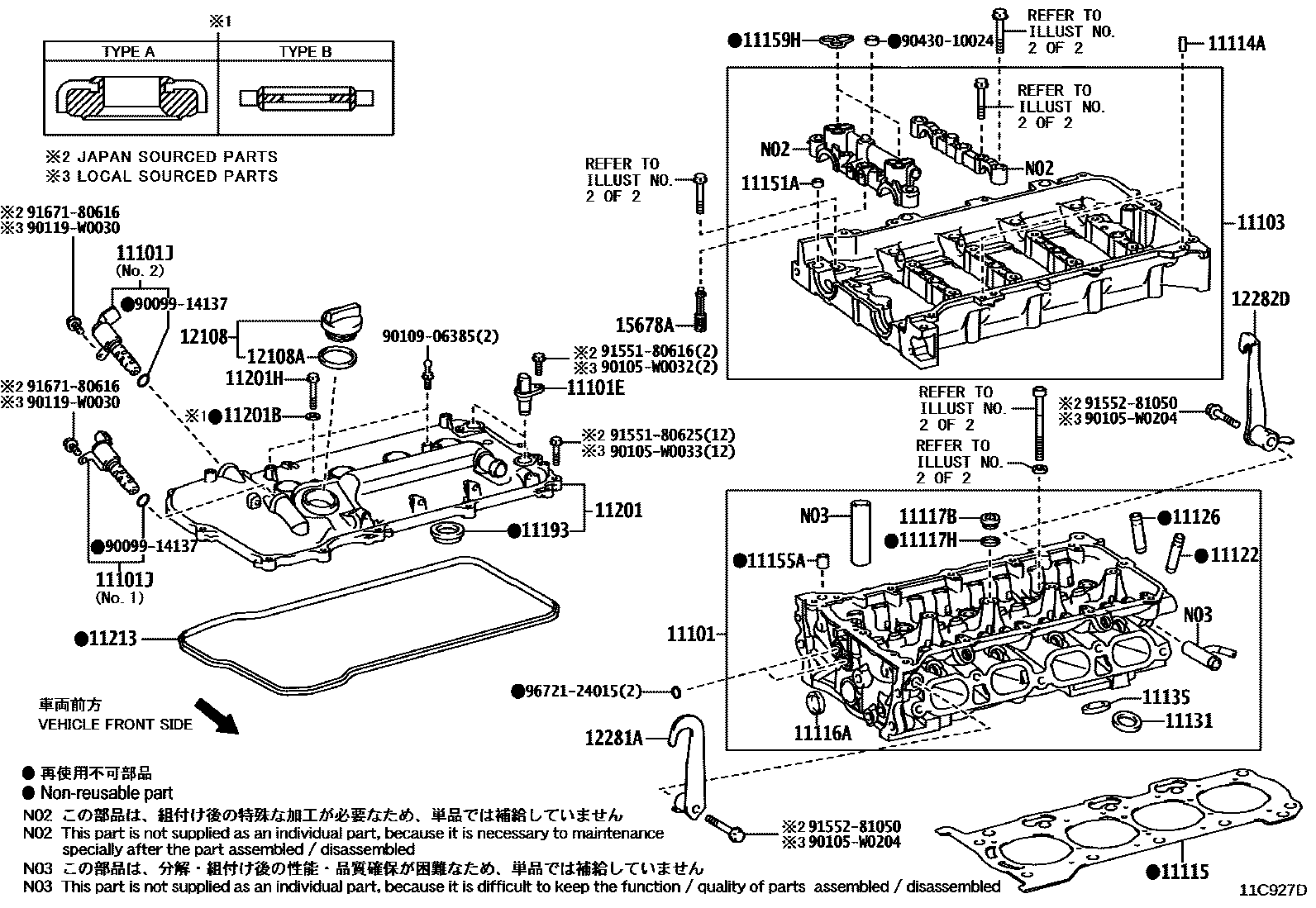

Toyota YARIS EPC diagram 1104, Cylinder Head, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09710 · 11101-39675 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02166 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T050 · 15330-0T060 · 15330-37010 · 15330-37020 |
| 11103 | Camshaft housing sub-assembly | 11103-0T021 · 11103-37021 |
| 11114A | direct selling | 90250-06001 |
| 11115 | GASKET, CYLINDER HEAD | 11115-37061 |
| 11116A | No. 1 sealing plug | 96411-62500 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11123-31050 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-31030 · 11127-31030 |
| 11131 | intake valve seat | 11131-37040 · 11132-37040 |
| 11135 | Exhaust valve seat | 11135-37020 · 11136-37020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155A | PIN, RING W/HEAD | 90253-12002 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-37010 |
| 11193 | spark plug bushing gasket | 11193-37020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-37032 |
| 11201B | Gasket (for cylinder head cover) | 16258-37010 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-W0220 · 91551-80670 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0T031 · 11213-37041 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-0T040 · 12281-37021 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0T040 · 12282-37011 |
| 15678A | Oil control valve filter | 15678-37010 |
