Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

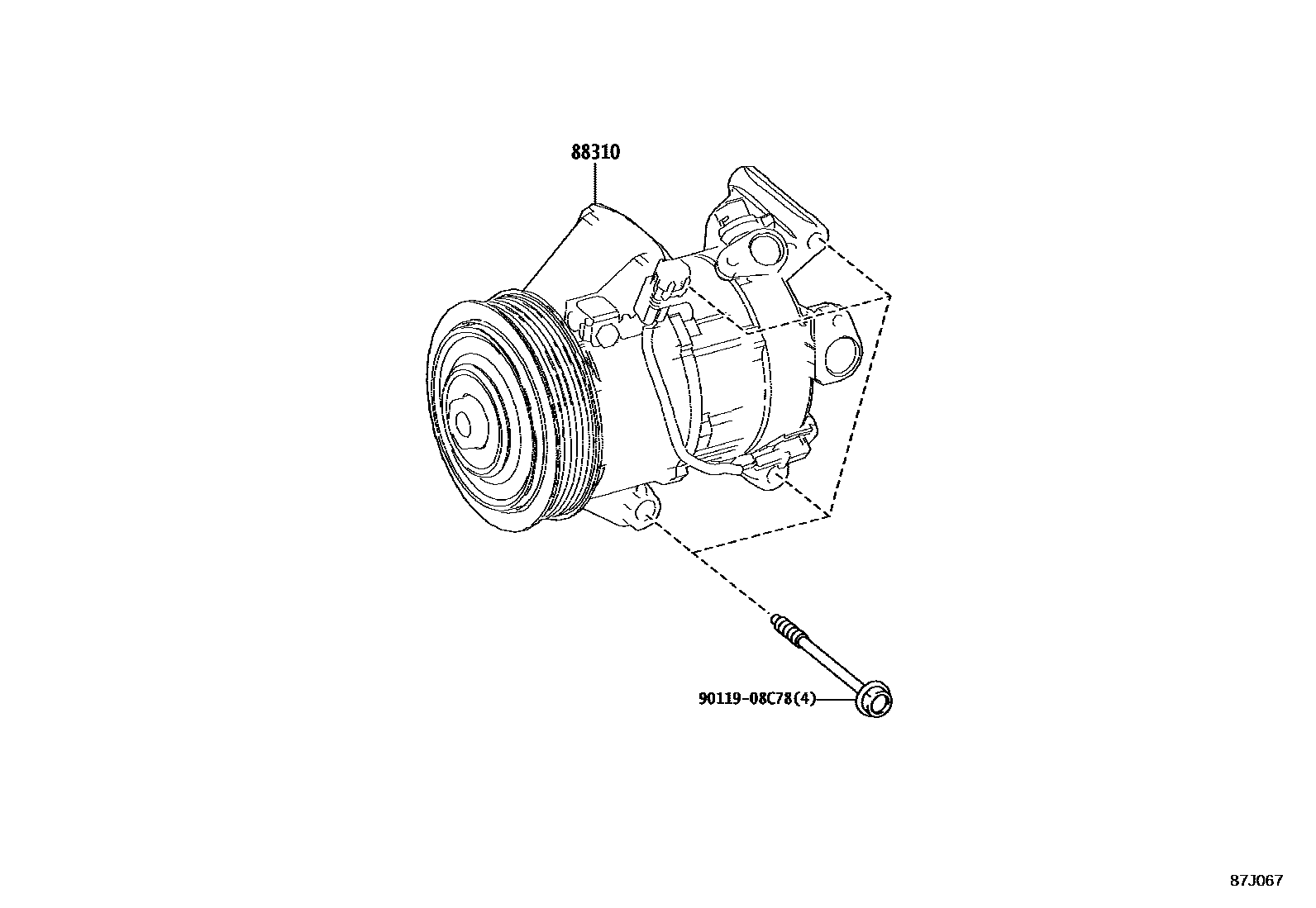

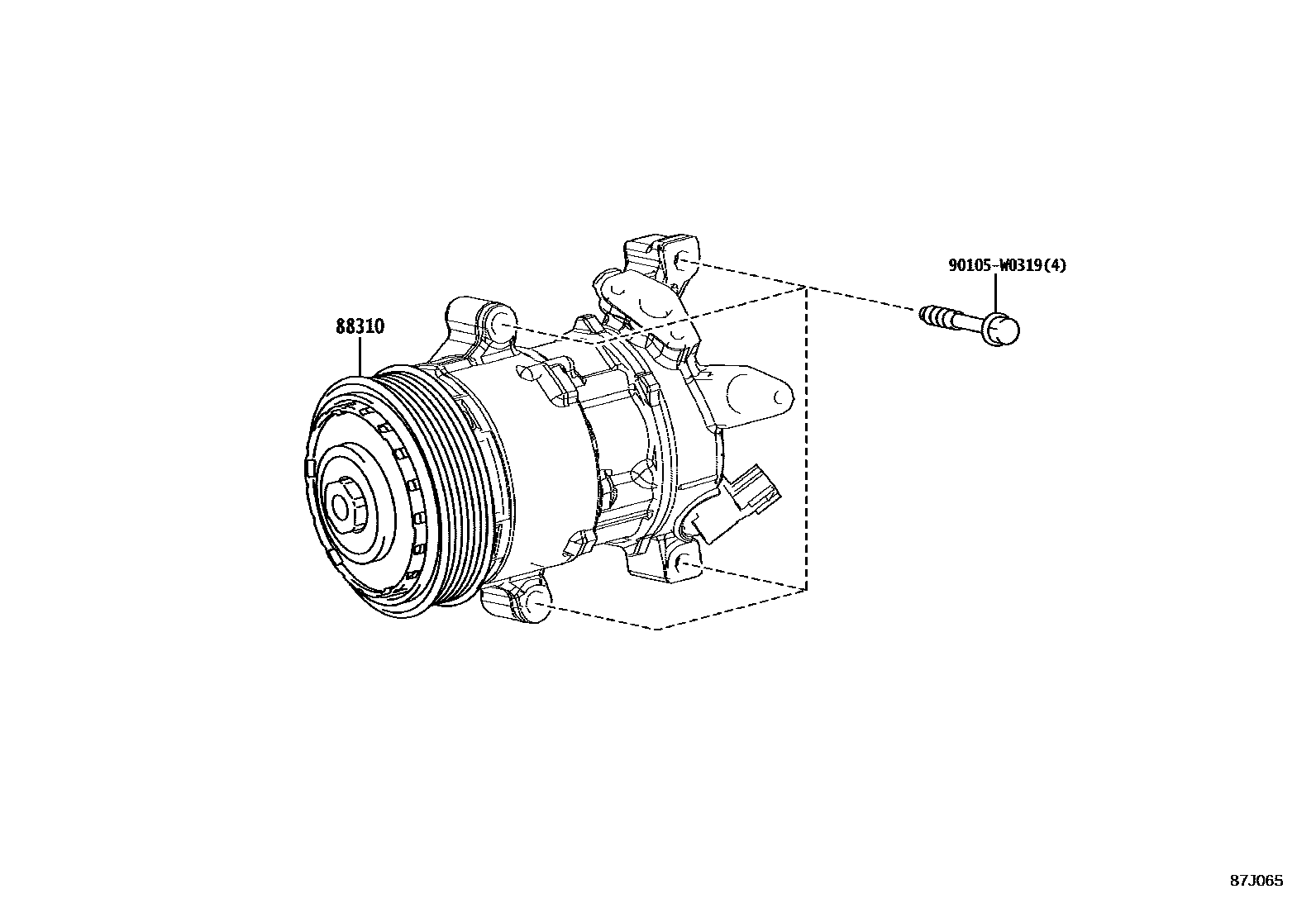

| 88310 | Compressor assembly with pulley | 88310-0D380 · 88310-0D410 · 88310-0DA80 · 88310-0DA90 · 88310-K0030 · 88310-K0040 |

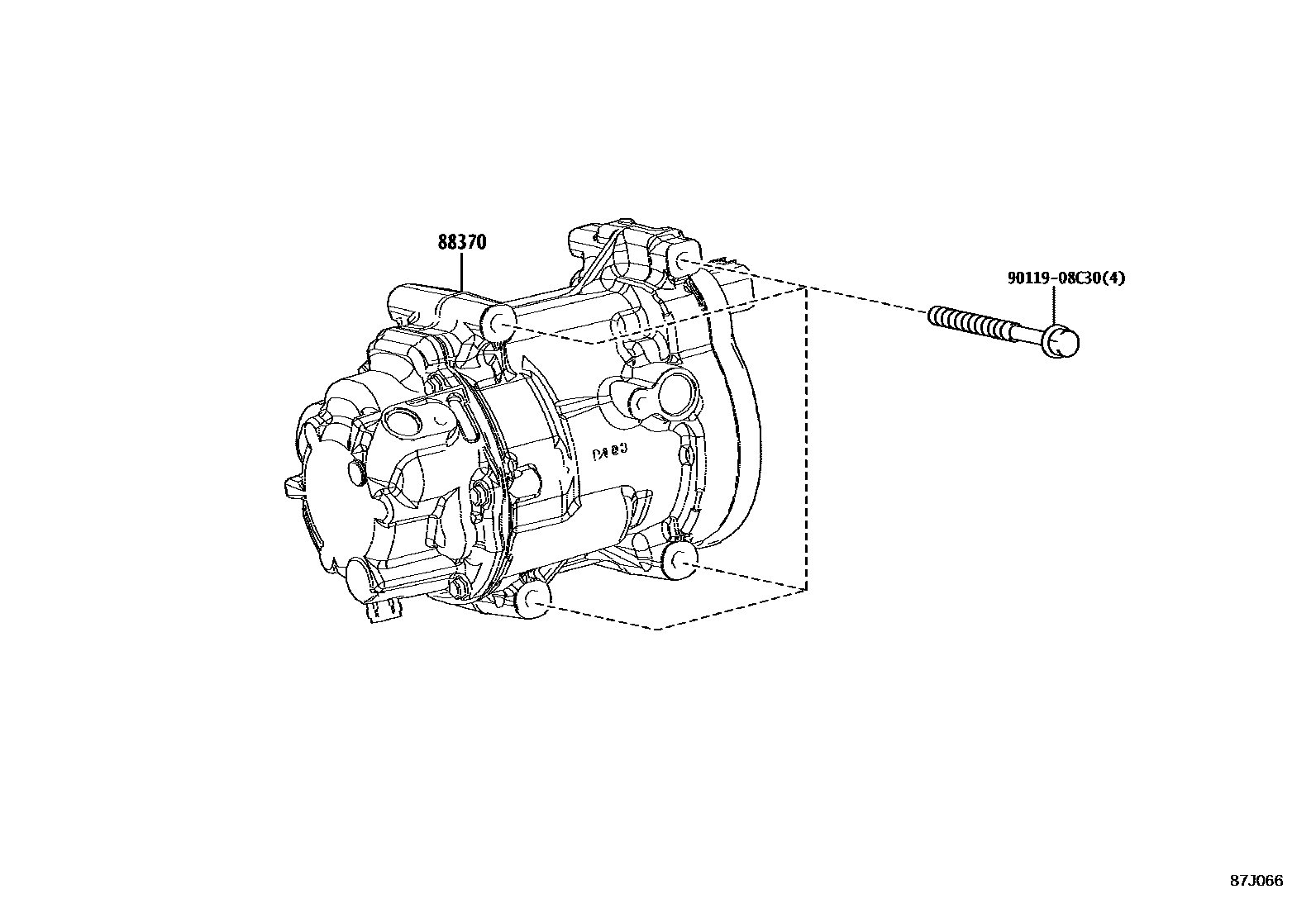

| 88370 | Compressor assembly with motor | 88370-K0010 |
