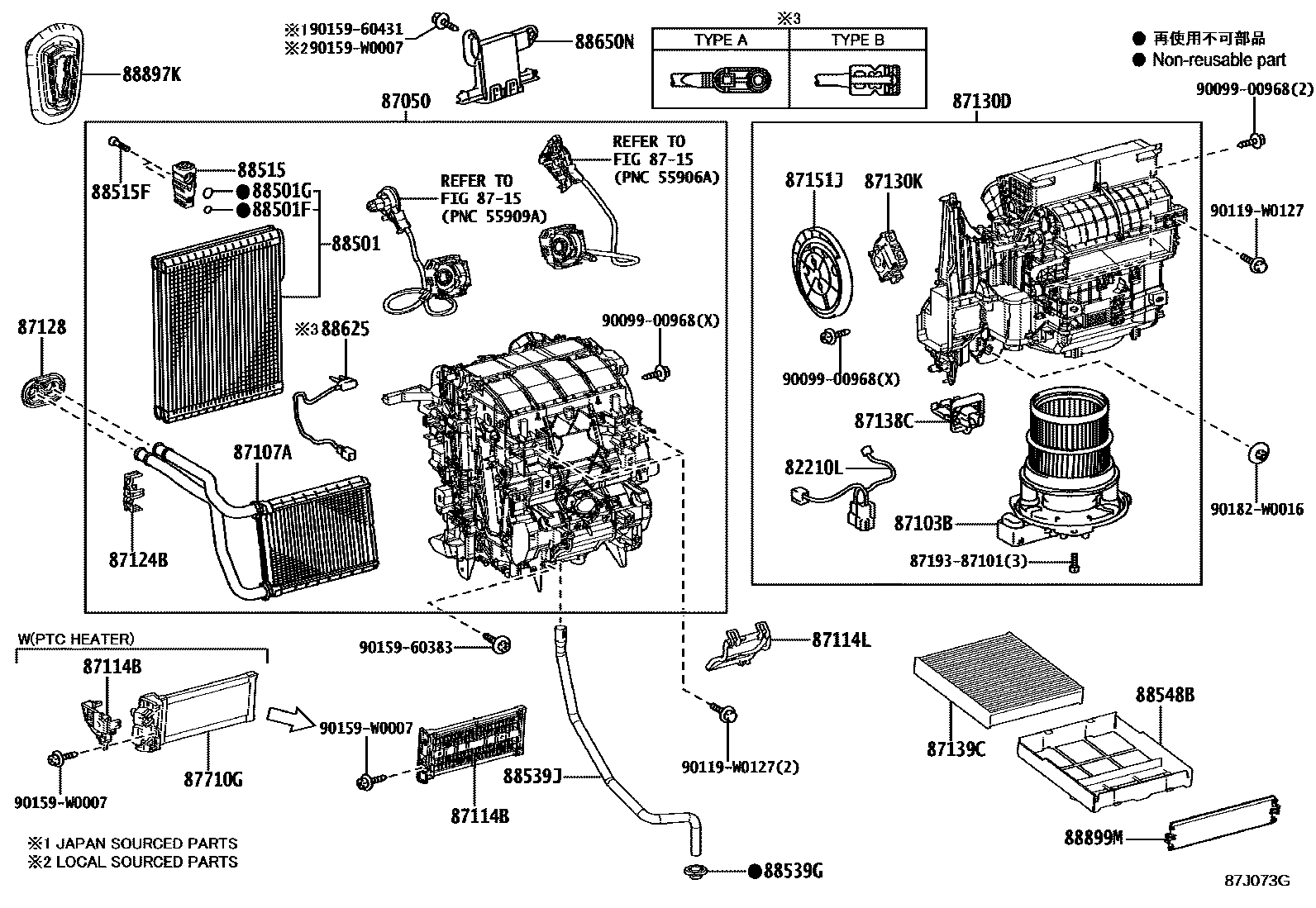

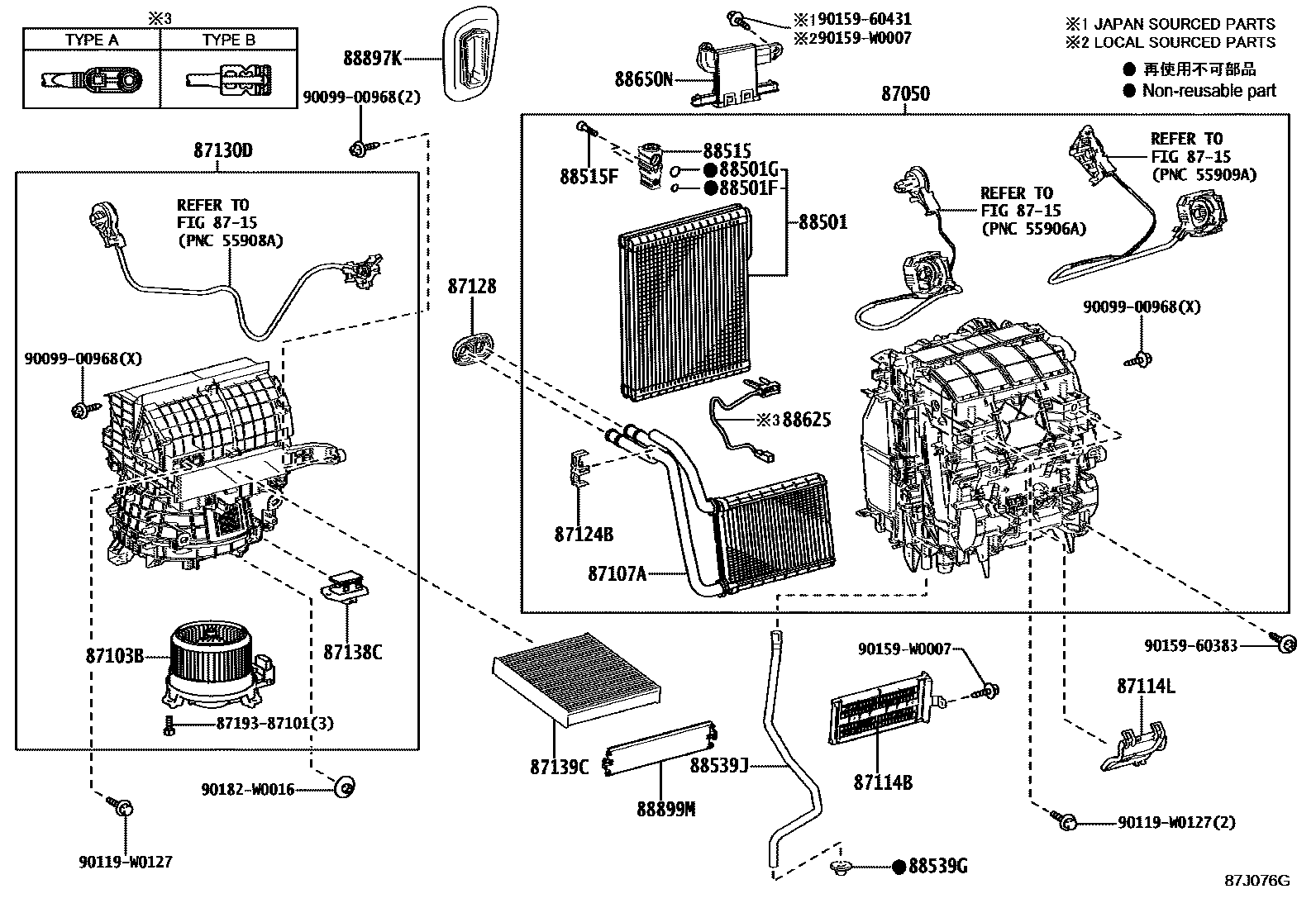

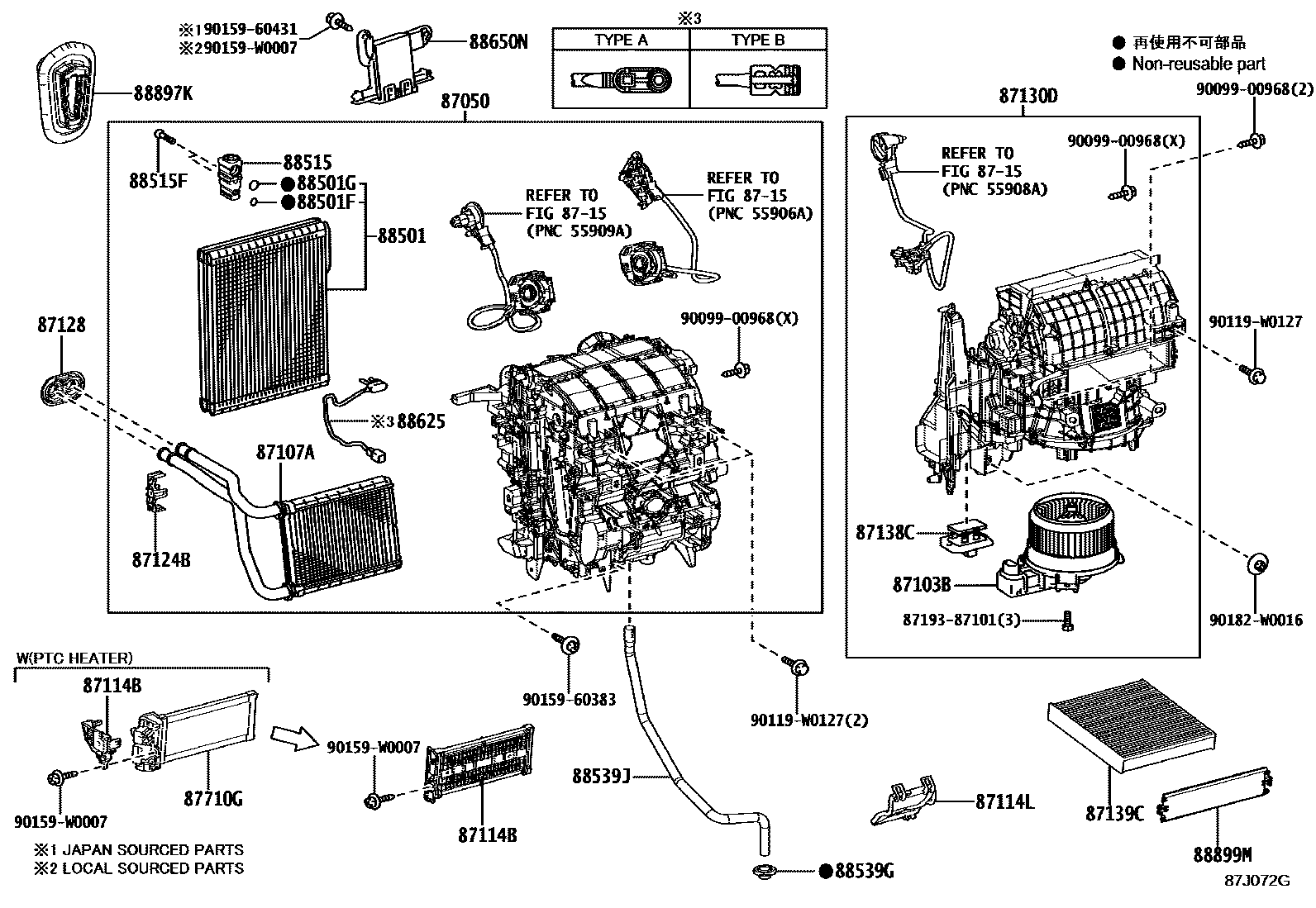

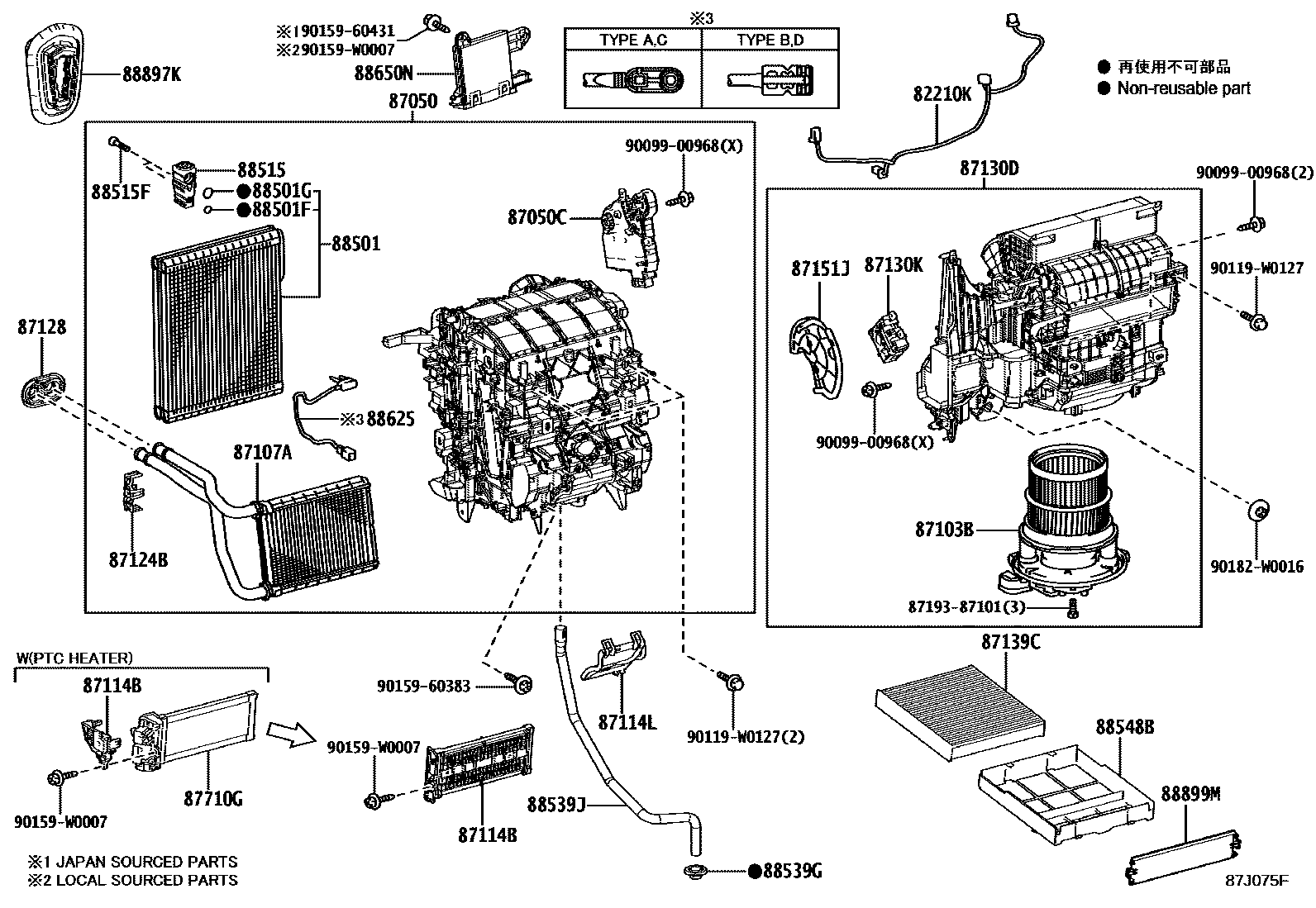

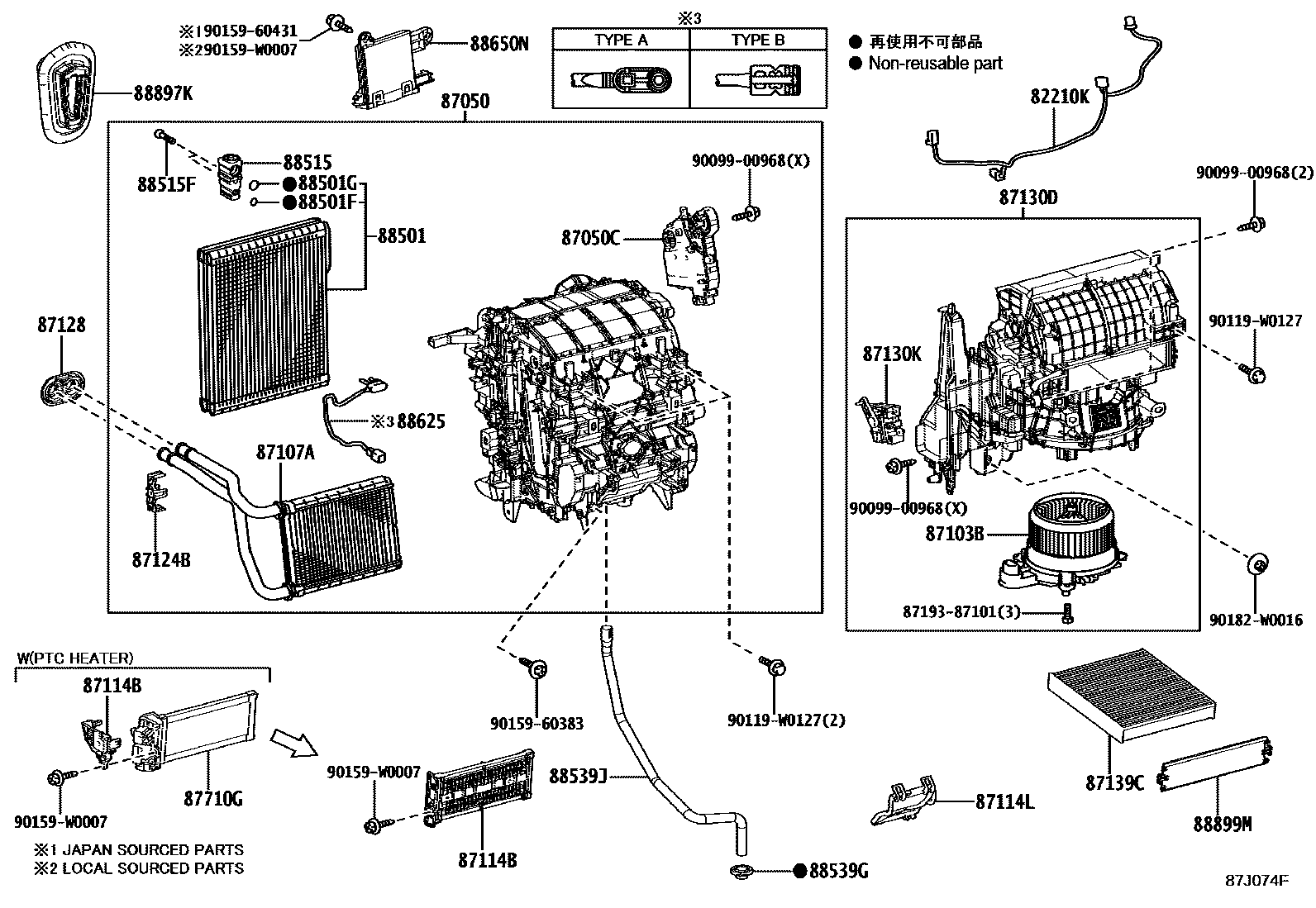

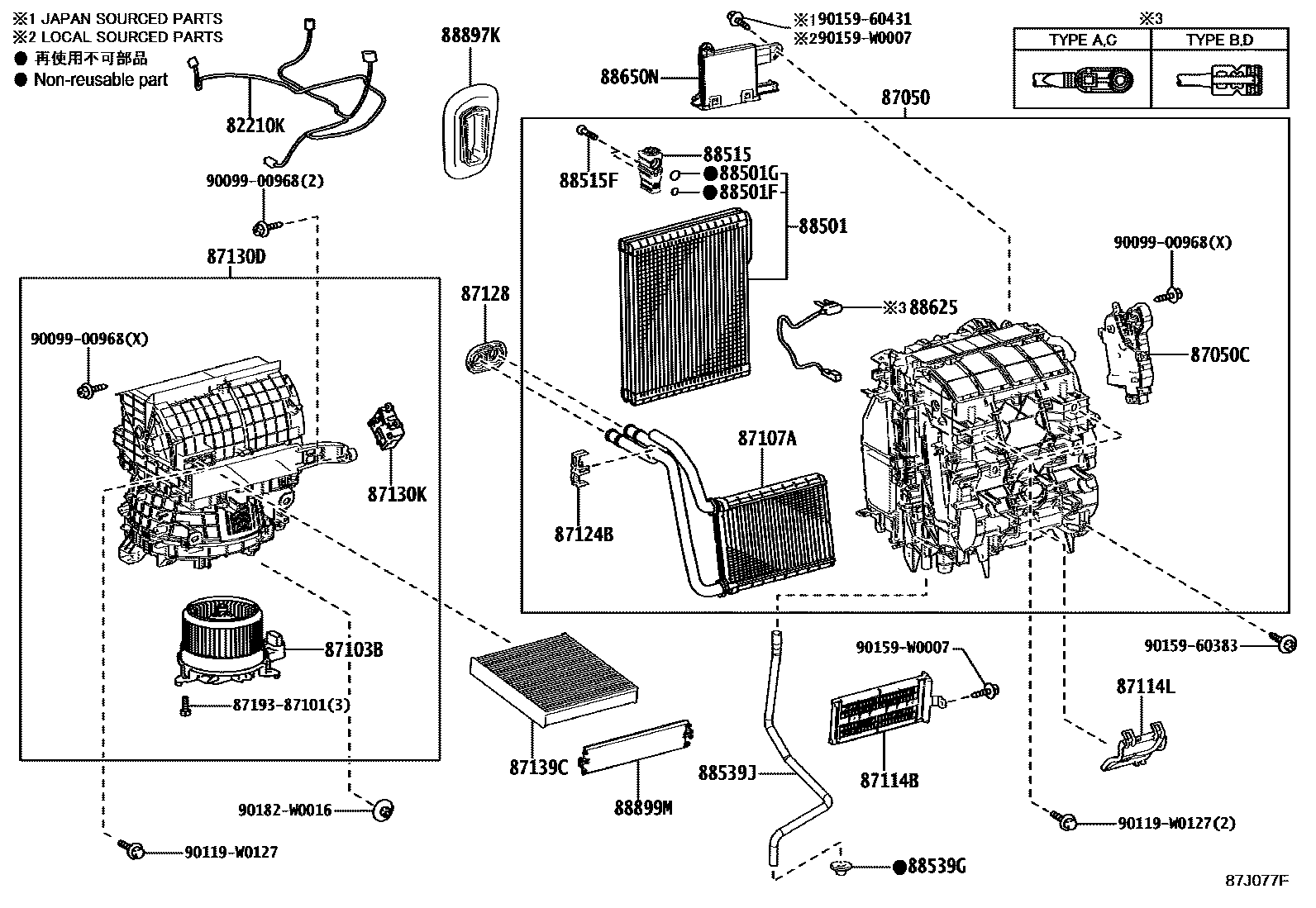

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-K0010 · 82212-K0020 |
| 82210L | Air conditioner No. 2 wiring harness assembly | 82212-0D130 |
| 87050 | Air conditioning radiator assembly | 87050-0D870 · 87050-0D880 · 87050-0D890 · 87050-0DA30 · 87050-0DA40 · 87050-0DA50 · 87050-0DA60 · 87050-0DA70 · 87050-0DA80 · 87050-0DA90 · 87050-0DB00 · 87050-K0240 · 87050-K0260 · 87050-K0270 · 87050-K0280 · 87050-K0290 · 87050-K0300 · 87050-K0310 · 87050-K0320 · 87050-K0330 · 87050-K0340 · 87050-K0350 · 87050-K0360 · 87050-K0370 · 87050-K0380 · 87050-K0390 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02540 · 87106-F4010 · 87106-K0060 · 87106-K0090 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D490 · 87103-0D500 · 87103-0D510 · 87103-0D520 · 87103-K0010 · 87103-K0020 · 87103-K0030 · 87103-K0040 · 87103-K0060 · 87103-K0070 |
| 87107A | Heater radiator device sub-assembly | 87107-K0010 · 87107-K0020 |
| 87114B | heater cover | 87114-K0010 · 87114-K0100 |
| 87114L | COUVERCLE CHAUFFAGE, NO.2 | 87114-K0020 |
| 87124B | heater clip | 87124-F4010 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-0D290 · 87130-0D300 · 87130-K0010 · 87130-K0030 · 87130-K0040 · 87130-K0050 · 87130-K0060 · 87130-K0061 · 87130-K0070 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-K0010 · 87106-K0030 · 87106-K0040 · 87106-K0050 |
| 87138C | Blower resistor | 87138-0K090 · 87138-K0010 |
| 87139C | air purification filter | 87139-58010 · 87139-F4020 |
| 87151J | No. 1 air door panel | 87106-0D600 · 87106-0D610 |
| 87710G | Rapid heater assembly | 87710-0D070 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D590 · 88501-0D610 · 88501-K0050 · 88501-K0060 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90068-14037 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90068-14038 |
| 88515 | Cooler expansion valve | 88515-02560 · 88515-0D550 · 88515-0D560 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-K0010 · 88539-K0020 |
| 88548B | air filter housing | 88899-F4030 |
| 88625 | Cooler No. 1 Thermistor | 88620-02130 · 88620-02210 · 88620-0D220 · 88620-F4010 |
| 88650N | Air conditioning amplifier assembly | 88650-0DA90 · 88650-0DB00 · 88650-0DB40 · 88650-K0050 · 88650-K0120 · 88650-K0121 |
| 88897K | Seals (for cooler tubes) | 88899-K0010 |
| 88899M | cover (for air cleaner) | 88899-F4011 |
